2005 Chevrolet Tahoe 2WD V8-4.8L VIN VFACTORY OEM SERVICE PROCEDURE
Body Control Module: Service and Repair
BODY CONTROL MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Disconnect the negative battery cables.
CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

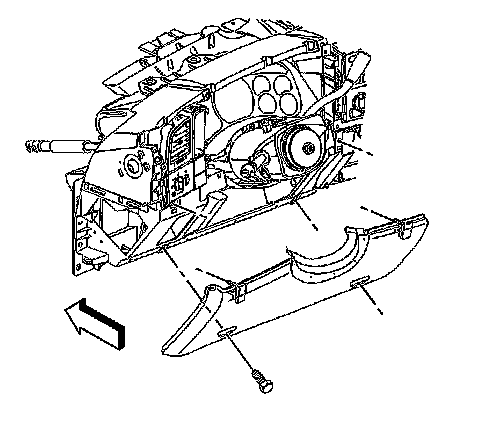

2. Remove the knee bolster.
3. Disconnect the brown connector.

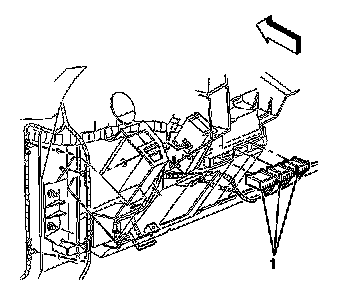

4. Disconnect all other connectors (1).
5. Remove the body control module (BCM) from the sliding bracket.
INSTALLATION PROCEDURE
1. Slide the BCM onto the bracket.
2. Connect all the connectors (1) except the brown connector.
3. Connect the brown connector.
4. Install the knee bolster.
5. Connect the negative battery cables.
6. Reprogram the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration. Programming and Relearning
7. Perform the Passlock Learn Procedure. Refer to Programming Theft Deterrent System Components in Theft Deterrent. Programming and Relearning
