2005 Chevrolet Tahoe 2WD V8-4.8L VIN VFACTORY OEM SERVICE PROCEDURE
Compressor Oil Balancing
COMPRESSOR OIL BALANCING
DRAINING

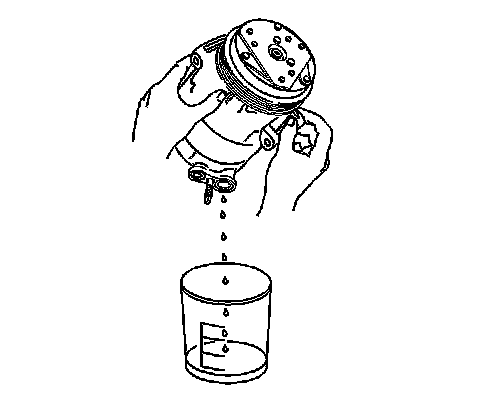

1. Drain the oil from both the suction and discharge ports of the removed compressor into a clean, graduated container.Rotate the compressor shaft to assist in draining the compressor.
IMPORTANT: Drain and measure as much of the refrigerant oil as possible from the removed compressor.
2. Measure and record the amount of oil drained from the removed compressor.This measurement will be used during installation of the replacement compressor.
3. Properly discard the used refrigerant oil.
BALANCING
1. The replacement compressor is shipped with 240 ml (8.0 oz) of refrigerant oil.
IMPORTANT: The refrigerant oil in the A/C system must be balanced during compressor replacement.
2. Before installing the compressor, the refrigerant oil will have to be partially drained:
1. Refer to the amount of refrigerant oil recorded during the compressor removal.
2. Subtract the amount recorded from the replacement compressor PAG oil capacity. Refer to Refrigerant System Capacities. The difference between the replacement compressor PAG oil capacity and the recorded amount is the calculated amount to be drained from the replacement compressor.
3. Drain the calculated amount of refrigerant oil from the replacement compressor.
DRAINING
1. Drain the oil from both the suction and discharge ports of the removed compressor into a clean, graduated container.Rotate the compressor shaft to assist in draining the compressor.
IMPORTANT: Drain and measure as much of the refrigerant oil as possible from the removed compressor.
2. Measure and record the amount of oil drained from the removed compressor.This measurement will be used during installation of the replacement compressor.
3. Properly discard the used refrigerant oil.
BALANCING
1. The replacement compressor is shipped with 240 ml (8.0 oz) of refrigerant oil.
IMPORTANT: The refrigerant oil in the A/C system must be balanced during compressor replacement.
2. Before installing the compressor, the refrigerant oil will have to be partially drained:
1. Refer to the amount of refrigerant oil recorded during the compressor removal.
2. Subtract the amount recorded from the replacement compressor PAG oil capacity. Refer to Refrigerant System Capacities. The difference between the replacement compressor PAG oil capacity and the recorded amount is the calculated amount to be drained from the replacement compressor.
3. Drain the calculated amount of refrigerant oil from the replacement compressor.
