2005 Chevrolet Tahoe 2WD V8-4.8L VIN VFACTORY OEM SERVICE PROCEDURE
Seat Switch Bezel Replacement
Seat Switch Bezel Replacement

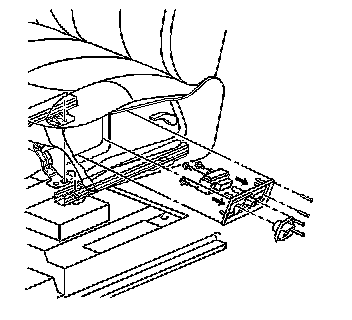

Removal Procedure
1. Remove the screws retaining the power seat switch bezel.
2. Disconnect the electrical connectors.
3. Remove the lumbar support switch.
4. Remove the power seat adjuster switch assembly.
Installation Procedure
1. Install the power seat adjuster switch assembly to the seat switch bezel.
2. Install the lumbar support switch to the seat switch bezel.
3. Connect the electrical connectors.
Notice: Refer to Fastener Notice in Service Precautions.
4. Install the screws retaining the power seat switch bezel.
Tighten the screws to 2 N.m (18 lb in).
