2005 Chevrolet Tahoe 2WD V8-4.8L VIN VFACTORY OEM SERVICE PROCEDURE
Module Replacement - Seat Climate Control - Rear Seat
MODULE REPLACEMENT - SEAT CLIMATE CONTROL - REAR SEAT
REMOVAL PROCEDURE
1. Position the seat cushion in the forward position.
2. Release the seat cushion trim cover J channel along the lower edge of the trim cover.

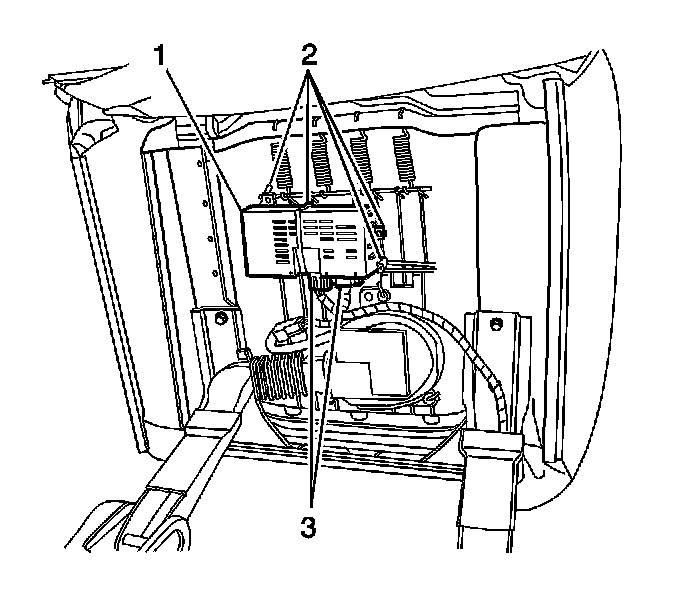

3. Disconnect electrical connections (3) from the seat climate control module (1).
4. Note the location of the tie straps (2) securing the climate control module.
5. Remove the tie straps (2) securing the module to the seat cushion frame.
6. Remove the module from the seat cushion frame.
INSTALLATION PROCEDURE
1. Position the climate control module (1) to the seat cushion frame.
2. Secure the climate control module (1) using tie straps (2) in the same locations as noted during the removal.
3. Connect the electrical connections (3) to the climate control module (1).
4. Secure the seat cushion trim cover J channel.
5. Reposition the seat cushion to the original position.
