2005 Chevrolet SSR StandardFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the fuel rail assembly. Refer to Fuel Rail Assembly Replacement .

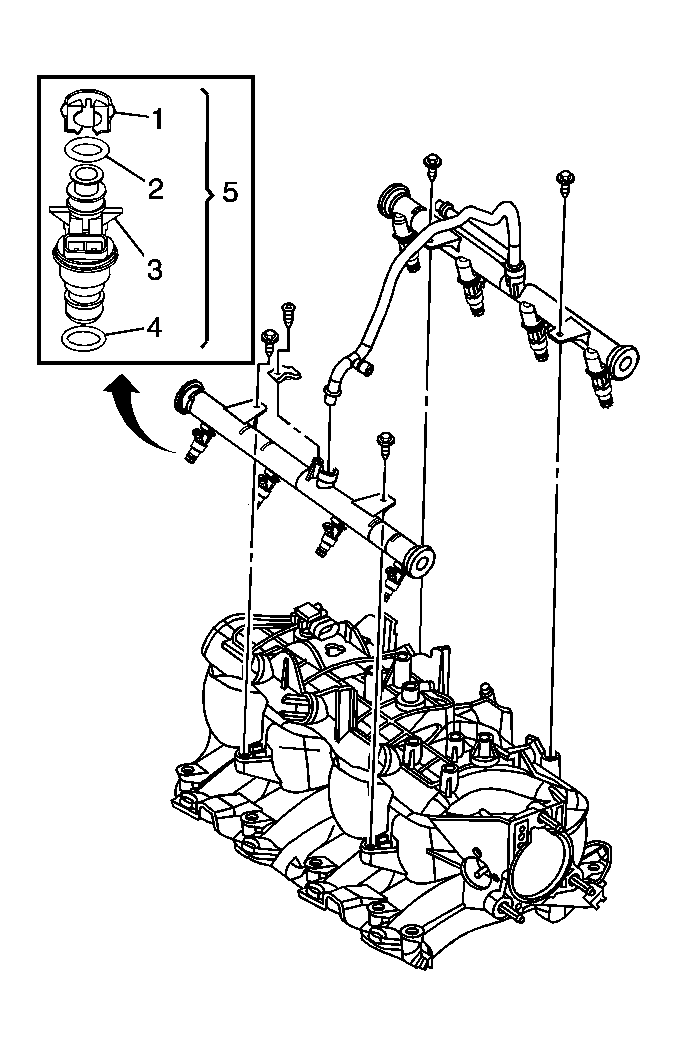

- Remove the retaining clip (1) for the fuel injector (3).
- Remove the fuel injector assembly (5) from the fuel rail.
- Remove and discard the old O-rings (2) and (5). DO NOT reuse, use NEW ONLY.
