2005 Chevrolet SSR AutomaticFACTORY OEM SERVICE PROCEDURE
Navigation System Connectors
WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
IDENTIFYING CELLULAR MICROPHONE CONNECTOR TERMINALS
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | BK | 9705 | Drain |
| B | GY | 655 | Cellular Microphone Signal |

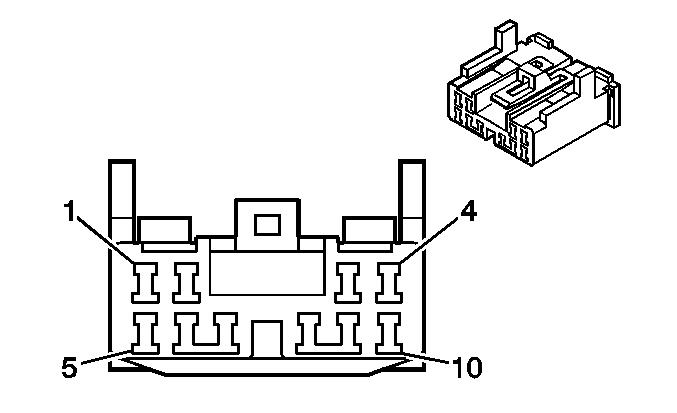

IDENTIFYING TRAFFIC INFORMATION RECEIVER CONNECTOR TERMINALS (UZD)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | GY | 5383 | Vehicle Identification Communication System High Signal |
| 2 | BN | 5384 | Vehicle Identification Communication System Low Signal |
| 3 | RD/WH | 740 | Battery Positive Voltage |
| 4 | YE | 43 | Accessory Voltage Signal |
| 5 | BK/WH | 651 | Ground |
| 6 | YE | 5385 | Vehicle Identification Communication System Bus Request Signal |
| 7 | BARE | 514 | Drain |
| 8-10 | - | - | Not Used |
