Installation Procedure

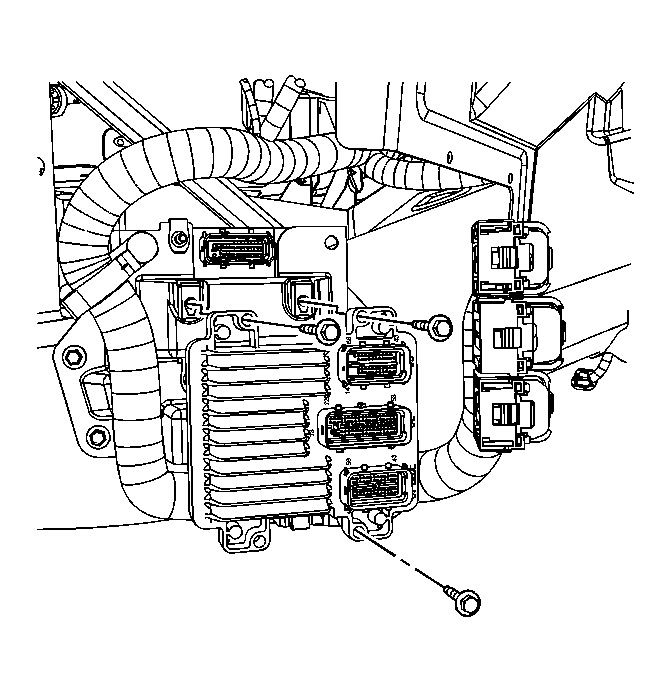

- Install the ECM to the ECM rear bracket.
- Position the ECM front bracket.
- Install the ECM front retaining fasteners.
Tighten: Tighten the ECM retaining fasteners to 2.0 N.m (17 lb in).

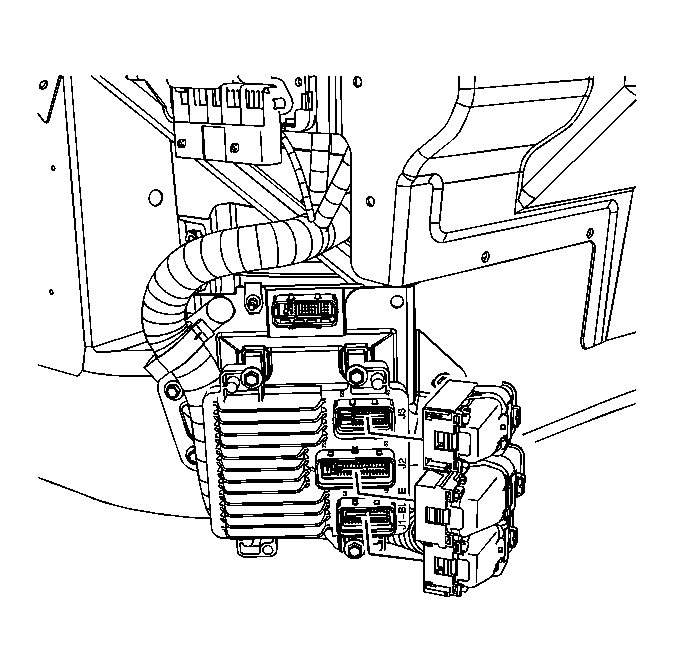

- Connect the electrical connectors to the ECM.
Tighten: Tighten the ECM electrical connectors to 8 N.m (70 lb in).
- Install the wheelhouse filler panel. Refer to Fender, Insulator, Liner, Brake Caliper Cooling Duct Replacement - Front in Body Front End.
- If a new ECM is being installed, program the ECM. Refer to Control Module References in Computer/Integrating Systems.
