2005 Chevrolet SSR AutomaticFACTORY OEM SERVICE PROCEDURE

Computer/Integrating Systems Component Views

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

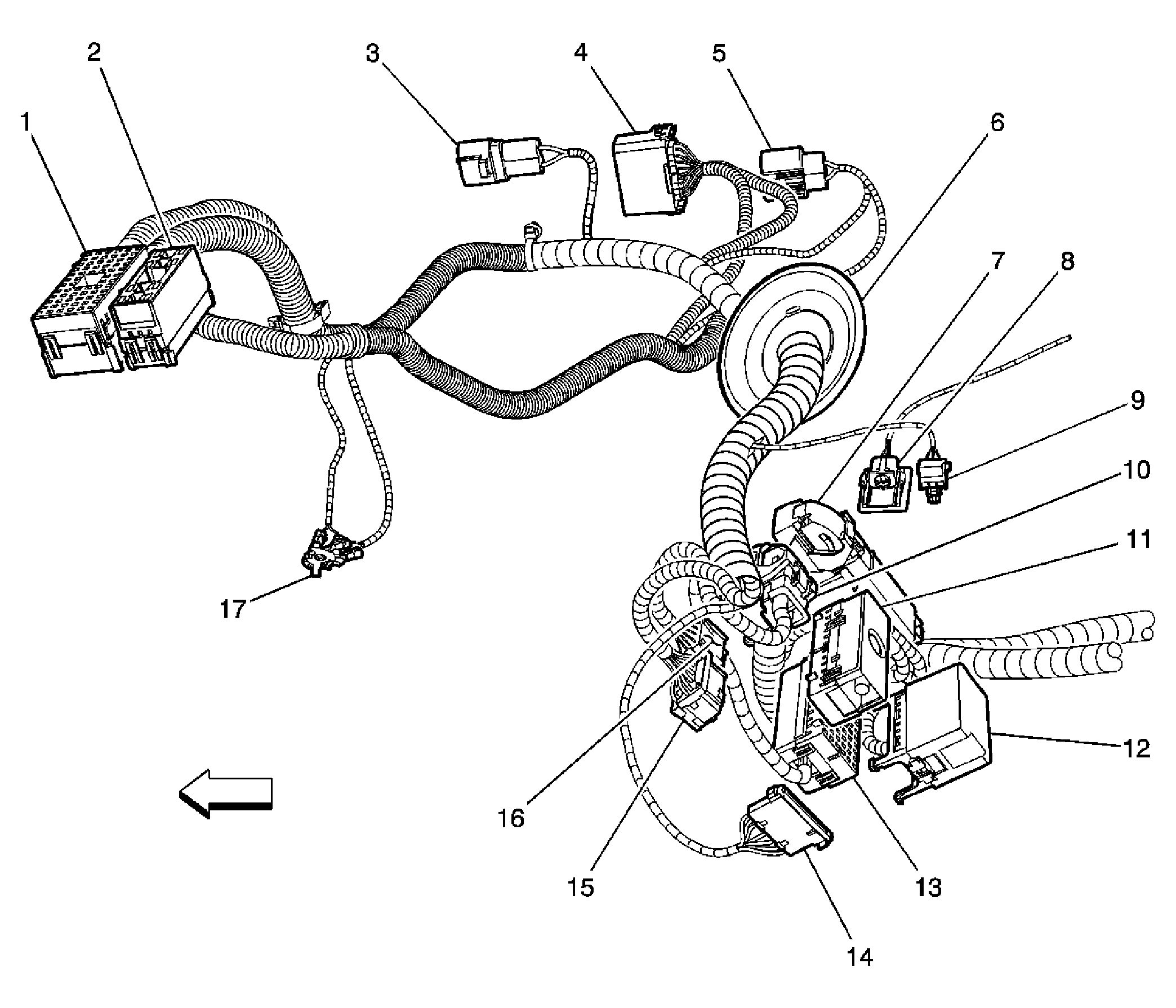

Fig 1: I/P Harness Routing - Engine Compartment and Lower Right Side of I/P Component View
GM1442131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block Underhood C3
2 Fuse Block Underhood C4
3 C186
4 C180
5 C182
6 Engine Compartment Pass-Through
7 Body Control Module (BCM) C2
8 Courtesy Lamp - Right
9 HVAC Blower Control
10 Body Control Module (BCM) C1
11 Fuse Block - I/P
12 Relay Block - I/P
13 Body Control Module (BCM) C4
14 Splice Pack SP208
15 Audio Amplifier C2
16 Audio Amplifier C1
17 G104

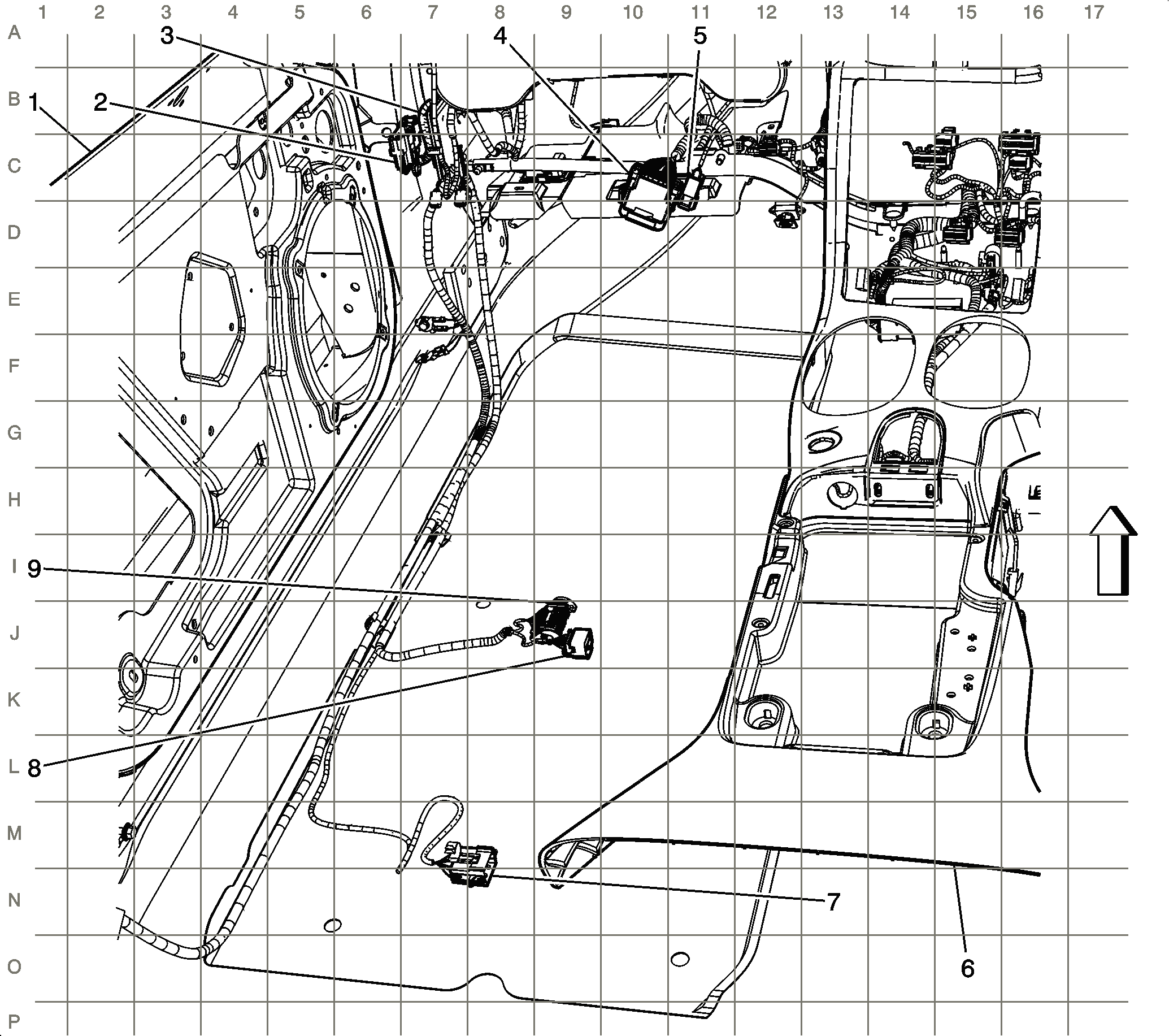

Fig 2: I/P Harness Routing - Left Side of I/P and Console
GM1442138Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Door
2 C501
3 C503 (U65)
4 C231
5 C275
6 Floor Console
7 C377
8 C379 (AAB)
9 C375
