2005 Chevrolet SSR AutomaticFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

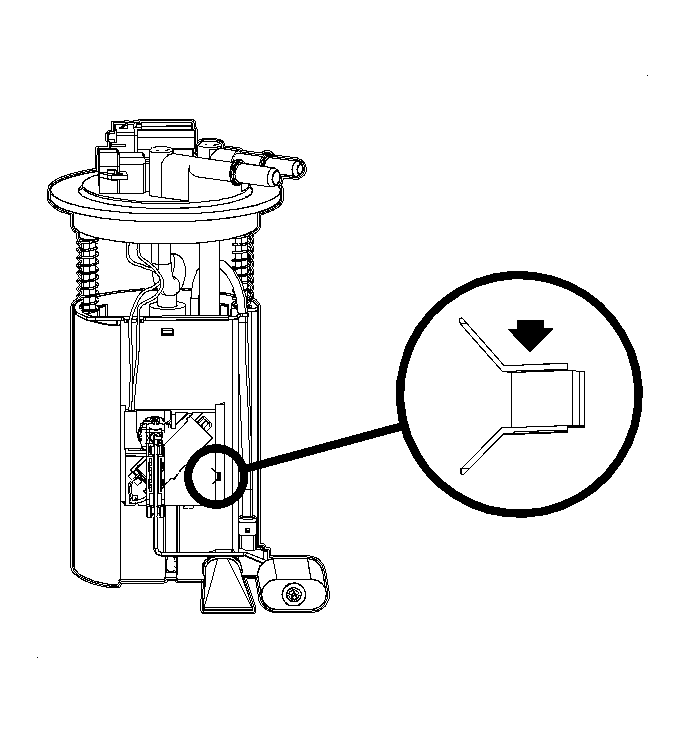

- Slide the new sender unit into place until a click is heard, pulling up lightly to ensure the sender unit is locked into place.
- Connect the electrical connections.
- Install the pump module and lock ring using a new tank seal.
- Reconnect the fuel lines and electrical connectors to the fuel pump.
- Install the fuel tank. Refer to Fuel Tank Replacement .
IMPORTANT:
Verify that the float arm on the sender unit maintains the correct relationship to the pump module by standing the module on a flat, horizontal surface. The float should lay on the surface.
IMPORTANT:
The fuel pump module to tank seal must always be replaced whenever the module is removed from the fuel tank.
