2005 Chevrolet SSR AutomaticFACTORY OEM SERVICE PROCEDURE

Computer/Integrating Systems Connector End Views

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
Body Control Module (BCM) - C1

GM73152Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084945
  • 16-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 L-GN 1391 Driver Door Unlock Relay Control
A3 L-BU 195 Door Lock Relay Control
A4 WH 194 Door Unlock Relay Control
A5-A6 - - Not Used
A7 OG/BK 781 Driver Door Lock Switch Unlock Signal
A8 RD/BK 780 Driver Door Lock Switch Lock Signal
B1 - - Not Used
B2 D-BU 1201 Headlamp Low Beam Signal
B3 - - Not Used
B4 L-BU 74 Park Lamp Switch Signal
B5 - - Not Used
B6 L-GN/BK 1137 DRL Ambient Light Sensor Signal
B7 YL/BK 1138 DRL Ambient Light Sensor Low Reference
B8 L-GN 66 A/C Request Signal
Body Control Module (BCM) - C2

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110088
  • 24-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No. Function
A1 L-GN 867 ABS Indicator Failure Control
A2 L-BU 1134 Park Brake Switch Signal
A3 PK 1200 Headlamp High Beam Signal
A4 - - Not Used
A5 PU 333 Brake Fluid Level Sensor Signal
A6 BN 96 Windshield Wiper Switch Pulse Delay Signal
A7 L-BU 832 Traction Control Active Signal
A8 PK 94 Windshield Washer Switch Signal (Not Used)
A9 RD 228 Windshield Washer Pump Control
A10 PK 339 Ignition 1 Voltage
A11 L-GN 80 Key In Ignition Switch Signal
A12 BK/WH 746 Passenger Door Ajar Switches Signal
B1 D-GN 264 Security Indicator Control
B2 GY/BK 745 Left Front Door Ajar Switch Signal
B3 L-BU 292 Rear Defog Switch Signal
B4 RD/BK 744 Rear Compartment Lid Ajar Switch Signal
B5 D-GN 392 Rear Window Washer Pump Control
B6 WH 2192 Traction Ready Indicator Control
B7 BK/WH 56 Trunk Release Switch Signal
B8 BK/WH 99 Windshield Washer Fluid Level Signal
B9 YE 743 Accessory Voltage
B10 BN 9 Park Lamp Supply Voltage
B11 L-GN 1478 Coolant Level Switch Signal
B12 - - Not Used
Body Control Module (BCM) - C3

GM130689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110244
  • 24-Way F Micro-Pack 100 Series (PK)
Pin Wire Color Circuit No. Function
A1 WH 156 Dome Lamp Control
A2 RD/WH 812 12-Volt Reference
A3 WH 352 Headlamp Relay Coil Supply Voltage
A4 D-BU 1660 Traction Control Indicator Control
A5 OG/BK 1445 Windshield Wiper Relay Control
A6 OG/BK 1445 Windshield Wiper Relay Control (Not Used)
A7 WH 1080 Park Lamp Relay Control
A8 L-GN/BK 592 DRL Relay Control
A9 GY 1359 LCD Backlighting Lamp Control
A10-A11 - - Not Used
A12 TN 2501 CAN Low
B1 TN/WH 816 A/T Shift Lock Solenoid Control
B2 BK 28 Horn Relay Control
B3 OG/BK 1057 Low Reference
B4 GY 112 Windshield Wiper Switch Signal 1
B5 GY/BK 1381 LCD Dimming Signal
B6 WH 193 Rear Defog Relay Control
B7 YE 1836 Security System Sensor Signal
B8 D-GN 113 Windshield Wiper Switch Signal 2
B9 - - Not Used
B10 PU 1807 Class 2 Serial Data
B11 TN/WH 2500 CAN High
B12 - - Not Used

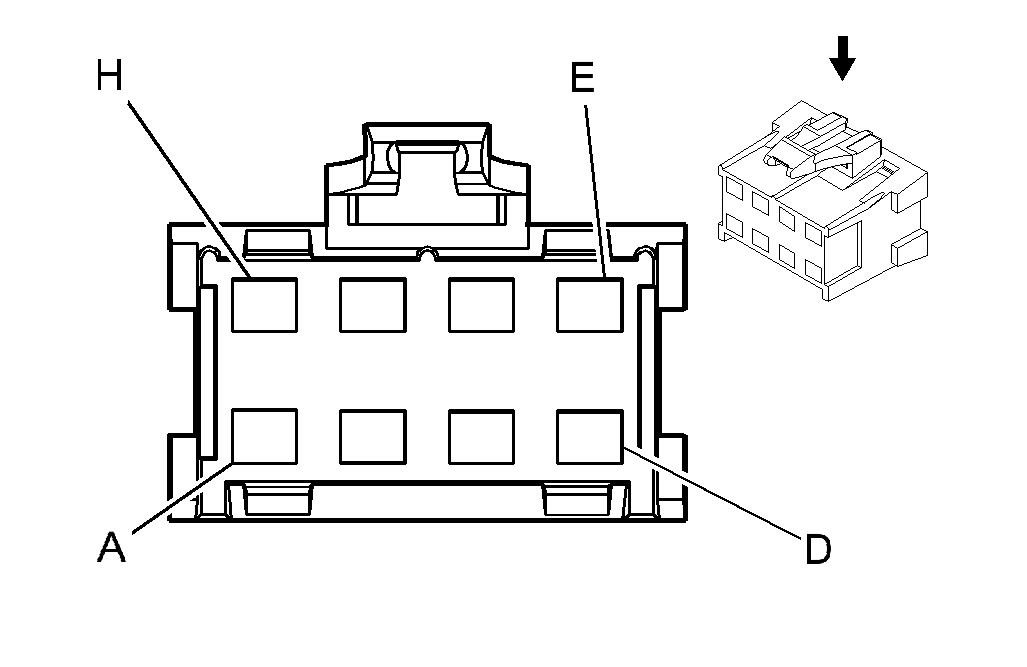

Body Control Module (BCM) - C4

GM73158Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110626
  • 8-Way F Metri-Pack 280 Series (GY)
Pin Wire Color Circuit No. Function
A OG 1732 Courtesy Lamp Supply Voltage
B-C - - Not Used
D OG 2540 Battery Positive Voltage
E GY 8 Instrument Panel Lamps Dimmer Switch Signal
F BK 550 Ground
G GY 382 Trunk Release Enable Relay Switch Supply Voltage
H OG 1640 Battery Positive Voltage
Data Link Connector (DLC)

GM808656Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15317575
  • 16-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 PU 1807 Class 2 Serial Data
3 - - Not Used
4 BK 550 Ground
5 BK 451 Ground
6 - - Not Used
7 PU 1319 Engine/Radio Serial Data K-Line
8-11 - - Not Used
12 L-BU 1276 ABS Serial Data K-Line
13-15 - - Not Used
16 OG 2140 Battery Positive Voltage
