2005 Chevrolet SSR AutomaticFACTORY OEM SERVICE PROCEDURE
Computer/Integrating Systems Component Views
WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

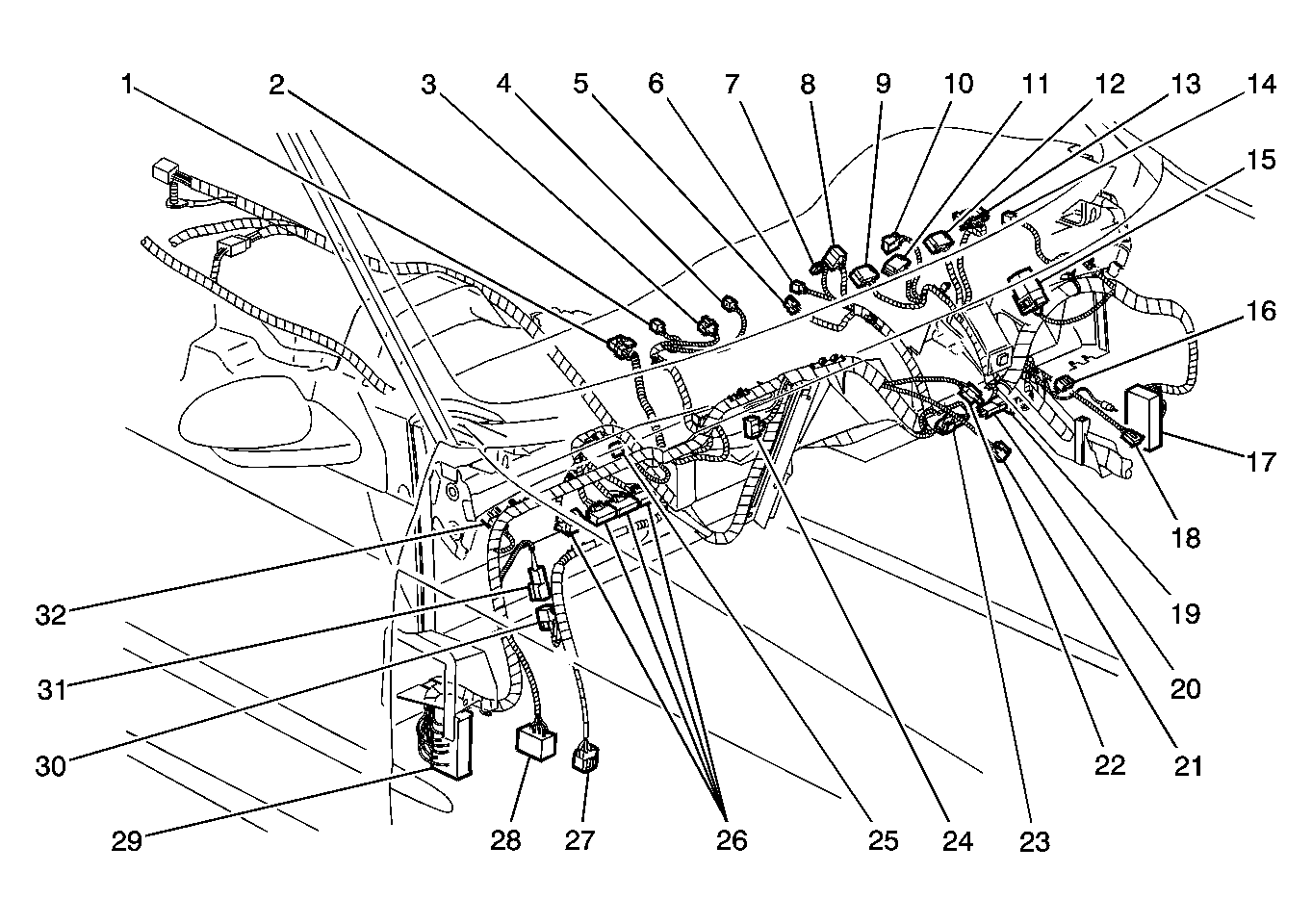

| Callout | Component Name |
|---|---|
| 1 | Radio |
| 2 | Right Heated Seat/Traction Switch |
| 3 | Hazard Switch |
| 4 | Left Heated Seat/Fog Lamp Switch |
| 5 | Passlock Sensor |
| 6 | Ambient Light Sensor |
| 7 | Ignition Lock Cylinder Solenoid |
| 8 | Windshield Wiper/Washer Switch |
| 9 | Ignition Switch C1 |
| 10 | Headlamp/Turn Signal Switch |
| 11 | Ignition Switch C2 |
| 12 | Inflatable Restraint Steering Wheel Module Coil C4 |
| 13 | Instrument Panel Cluster (IPC) |
| 14 | Dimmer/Rear Compartment Lid Release Switch |
| 15 | Wheel Speed Conditioner Module |
| 16 | Cruise/Brake Switch |
| 17 | Fuse Block - I/P - Left |
| 18 | C207 |
| 19 | Data Link Connector (DLC) |
| 20 | C215 |
| 21 | Accelerator Pedal Position (APP) Sensor |
| 22 | Cruise Control Module |
| 23 | C215 |
| 24 | C205 |
| 25 | I/P Compartment Lamp |
| 26 | Body Control Module (BCM) |
| 27 | C204 (w/o UE1) |
| 28 | C204 (w/UE1) |
| 29 | Fuse Block - I/P - Right |
| 30 | C200 Body Harness Side |
| 31 | C200 Headliner Harness Side |
| 32 | Inflatable Restraint I/P Module |

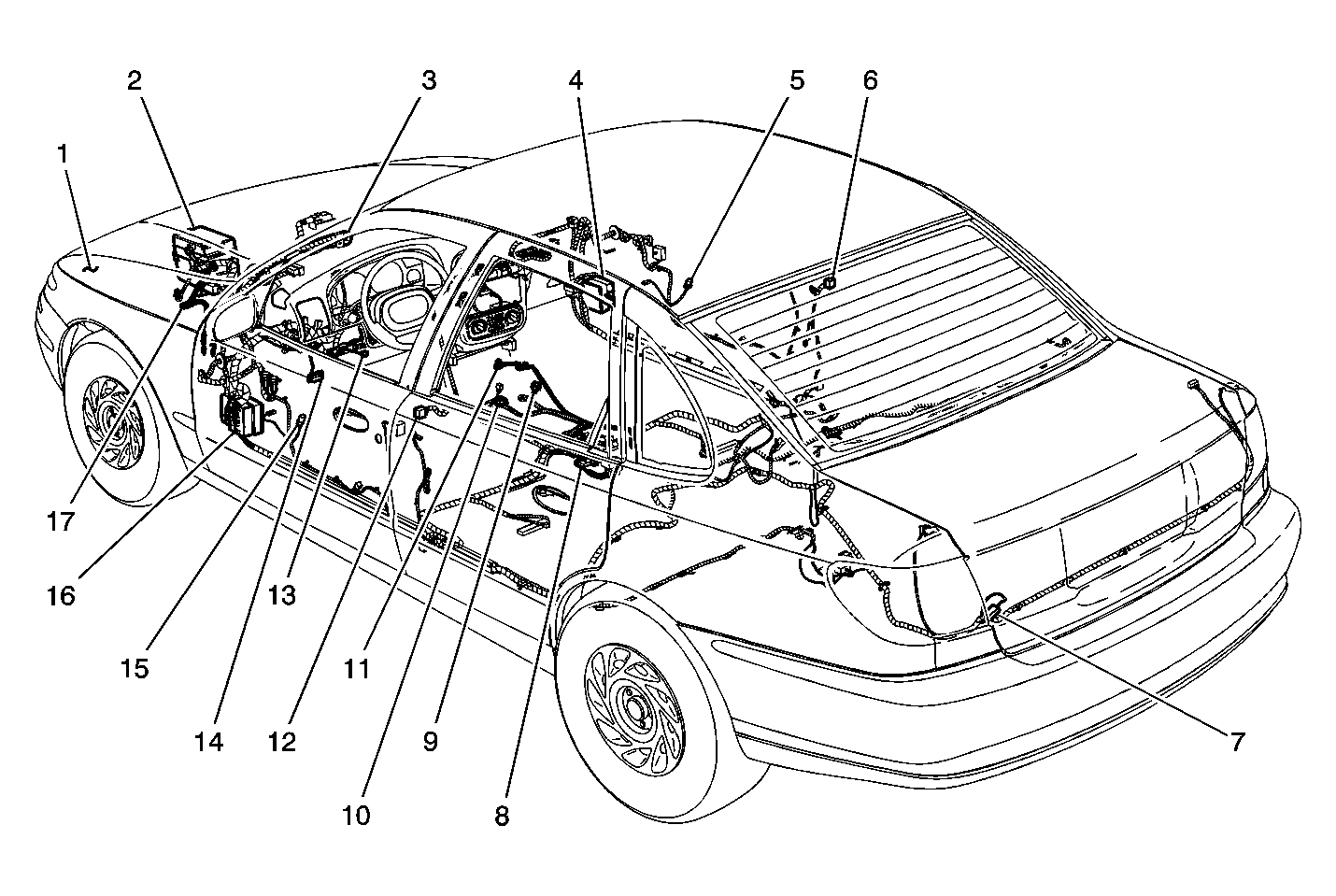

| Callout | Component Name |
|---|---|
| 1 | SP103 |
| 2 | Fuse Block - Underhood |
| 3 | SP105 |
| 4 | Fuse Block - I/P - Right |
| 5 | Window Motor - Front Passenger |
| 6 | Window Switch - RR |
| 7 | SP401 |
| 8 | G300 |
| 9 | Window Switch - Front Passenger |
| 10 | Window Switch - Driver |
| 11 | Cigar Lighter |
| 12 | Window Switch - LR |
| 13 | Data Link Communication (DLC) Connector |
| 14 | Dimmer/Rear Compartment Lid Release Switch |
| 15 | Window Motor - Driver |
| 16 | Fuse Block - I/P - Left |
| 17 | SP191 |
