2005 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Object Alarm Module Replacement
WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Object Alarm Module Replacement

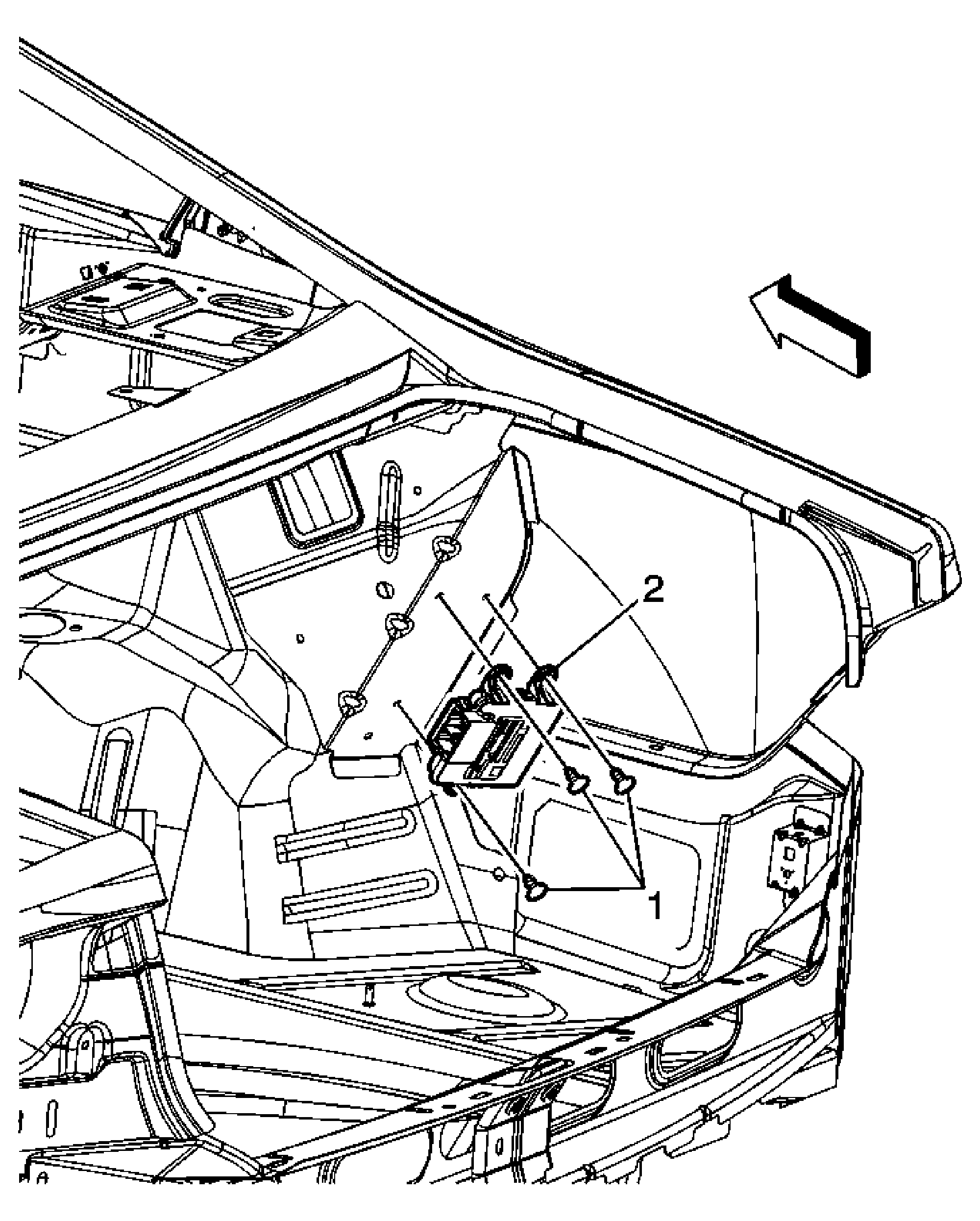

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the right rear compartment side trim panel. Refer to Rear Compartment Trim Panel Replacement . Refer to Control Module References for replacement and setup information. |
|
| 1 | Object Alarm Module Push-in Retainer (Qty: 3) |
| 2 | Object Alarm Module Tip: Disconnect electrical connectors. |
