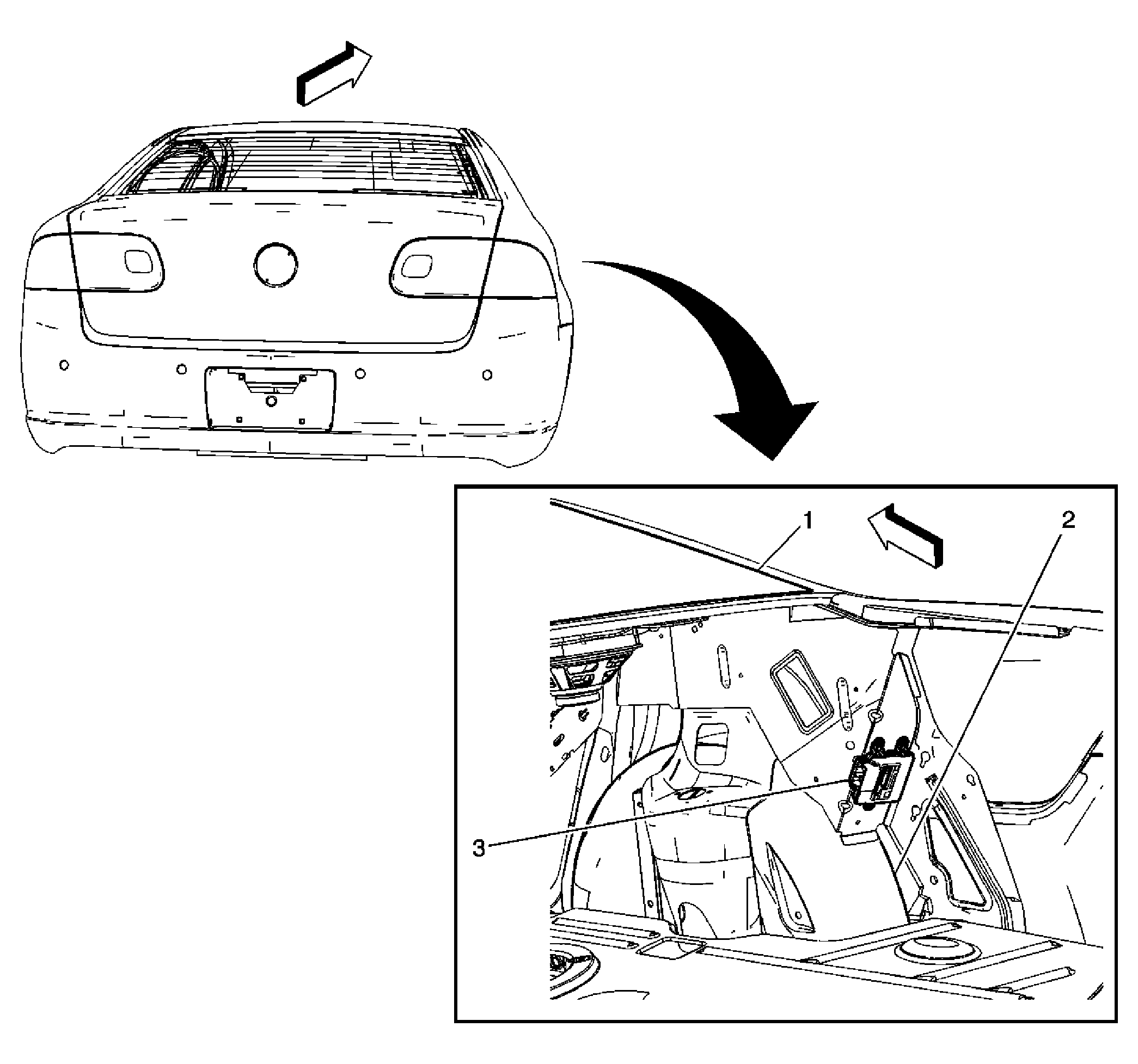

Fig 1: View Behind Left Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window
2	Wheel Well-RR
3	Object Alarm Module (UFR)

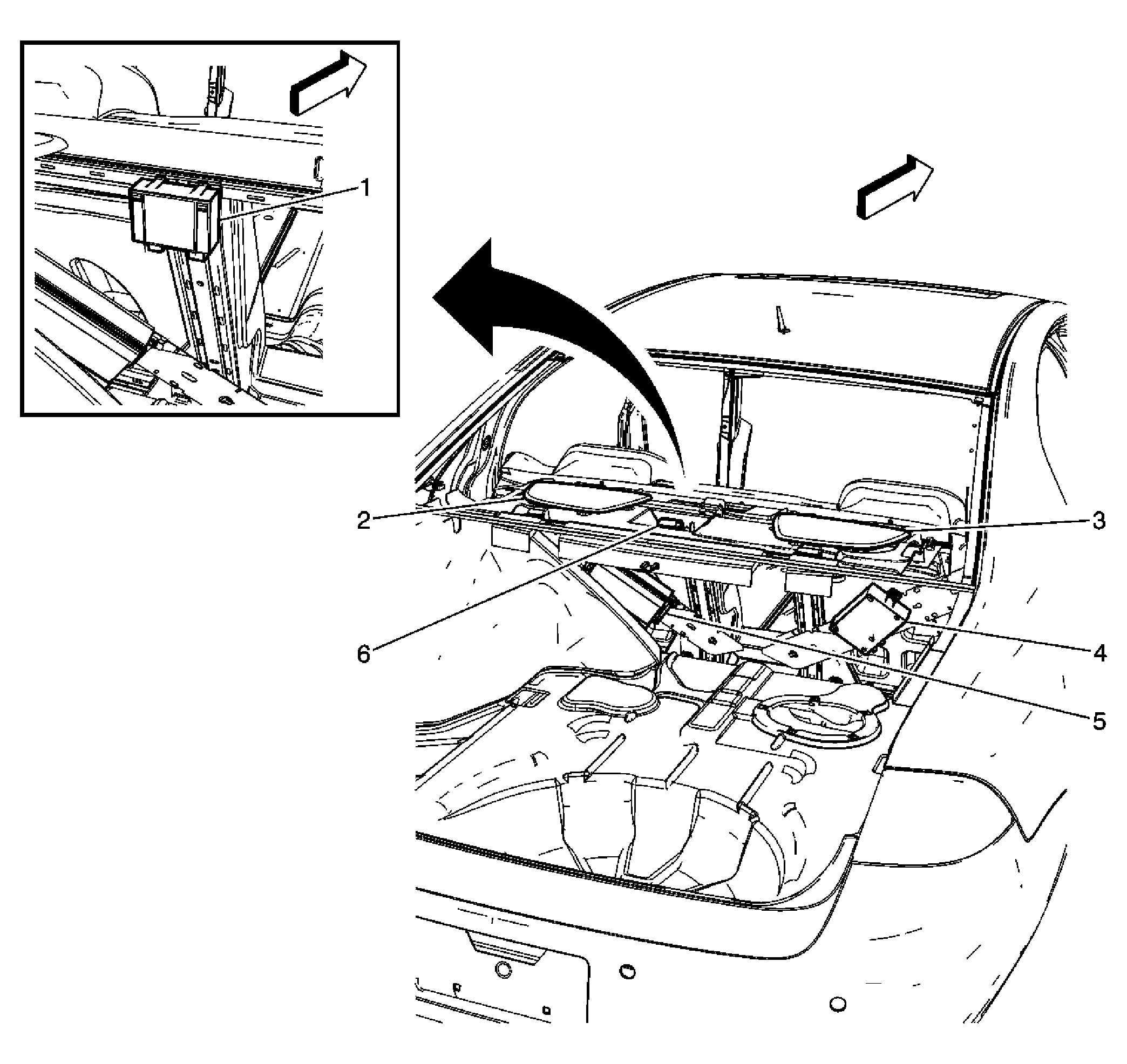

Fig 2: Behind The Rear Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Rear Park Assist Indicator (UD7)
3	Speaker - RR
4	Vehicle Communication Interface Module (VCIM) (UE1)
5	Amplifier (UQA)
6	Rear Compartment Courtesy Lamp
7	Speaker - LR

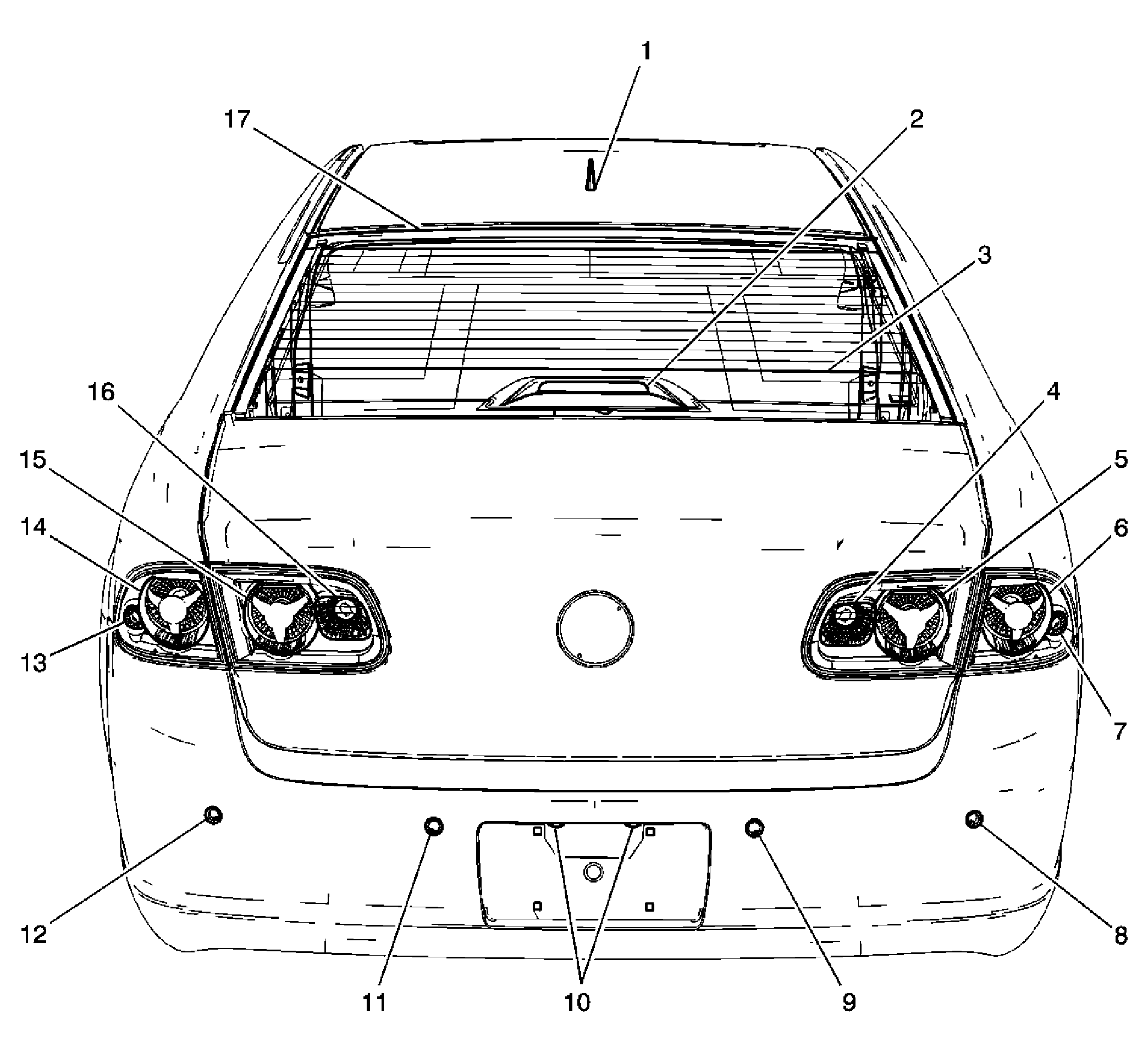

Fig 3: Rear of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular Navigation (UE1) and Digital Radio Antenna (U2K)
2	Center High Mounted Stop Lamp (CHMSL)
3	Rear Window Defogger
4	Backup Lamp-RR
5	Tail Lamp-Right Auxiliary
6	Stop/Turn Signal Lamp-RR
7	Marker Lamp-RR
8	Object Alarm Sensor - RR Corner (UFR)
9	Object Alarm Sensor -RR Middle (UFR)
10	License Lamps
11	Object Alarm Sensor -LR Middle (UFR)
12	Object Alarm Sensor -LR Corner (UFR)
13	Marker Lamp-LR
14	Stop/Turn Signal Lamp-LR
15	Tail Lamp-Left Auxiliary
16	Backup Lamp-LR
17	Radio Rear Glass Antenna
