2005 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Computer/Integrating Systems Component Views
WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

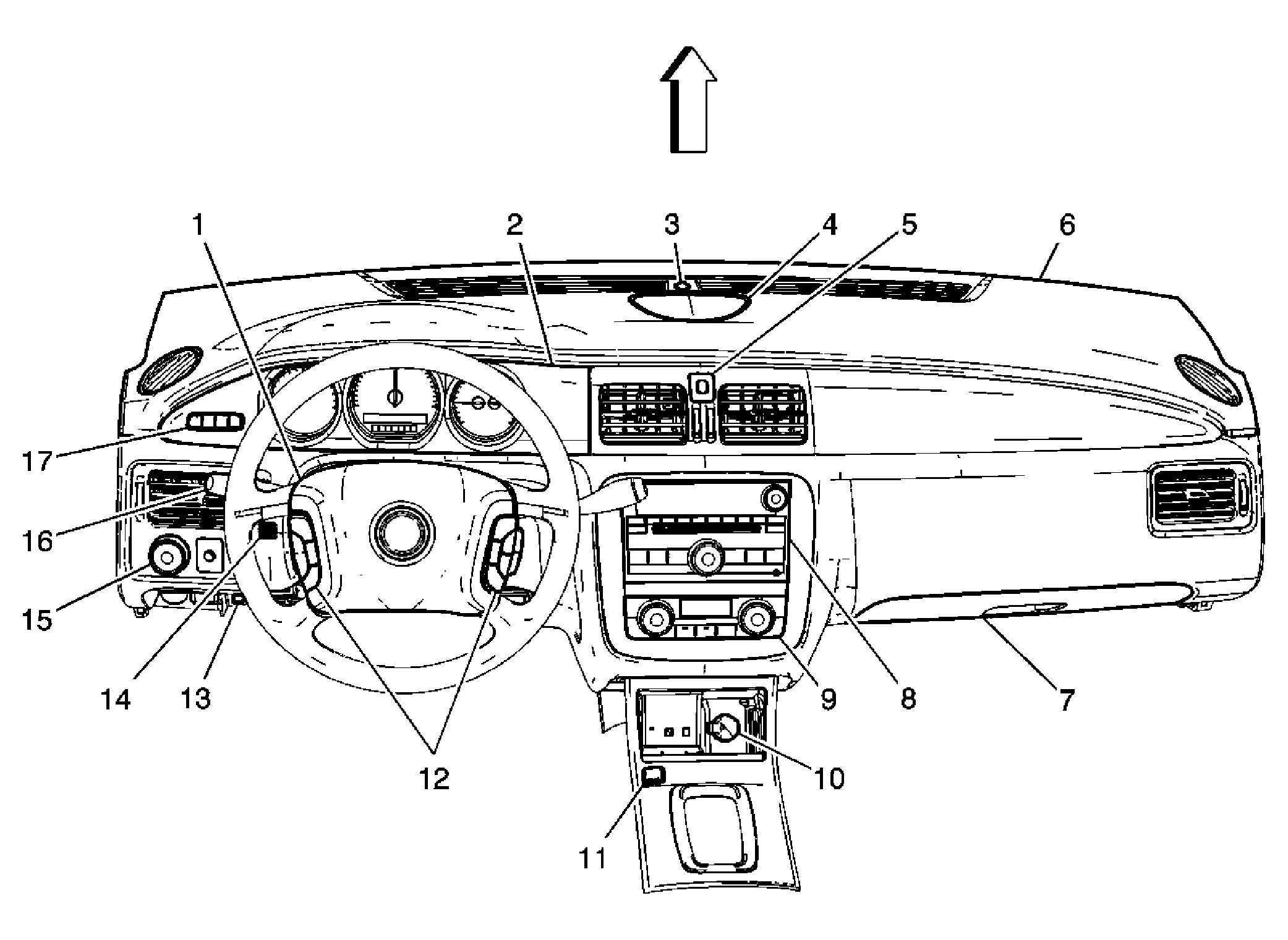

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module |
| 2 | Instrument Panel Cluster (IPC) |
| 3 | Sunload Twilight Sensor |
| 4 | Speaker - Front Center (UQA) |
| 5 | Hazard Switch |
| 6 | Inflatable Restraint I/P Module |
| 7 | Radio |
| 8 | HVAC Control Module |
| 9 | Auxiliary Power Outlet - Console (A51)/Cigar Lighter (DT4 w/A51) |
| 10 | Traction Control Switch |
| 11 | Steering Wheel Controls |
| 12 | Data Link Connector (DLC) |
| 13 | Air Temperature Sensor - Inside (CJ2) |
| 14 | Headlamp Switch |
| 15 | Turn Signal/Multifunction Switch |
| 16 | Driver Information Display Switch |

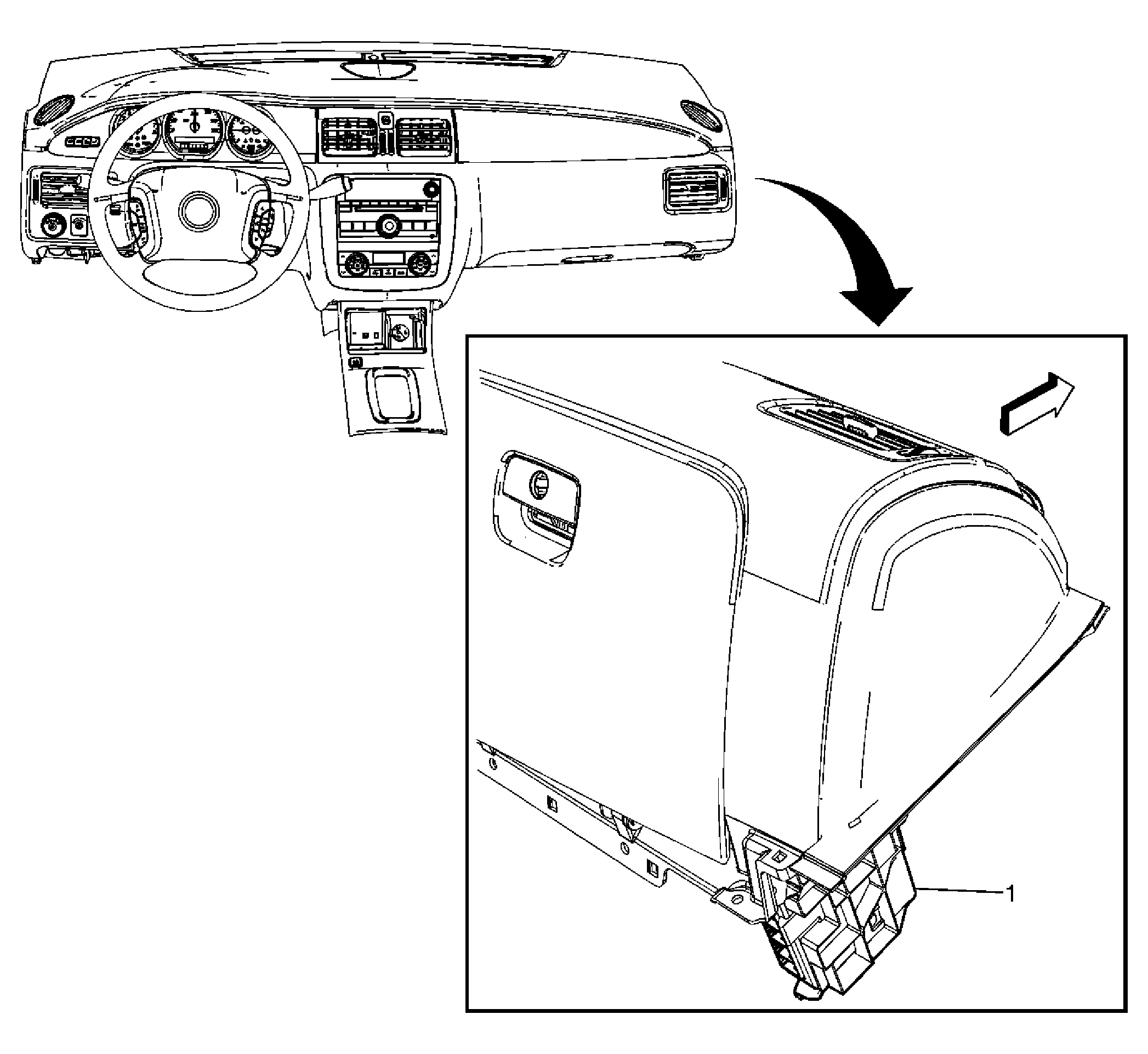

| Callout | Component Name |
|---|---|
| 1 | Body Control Module (BCM) |
