2005 Chevrolet Impala LSFACTORY OEM SERVICE PROCEDURE
Object Detection Component Views
WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

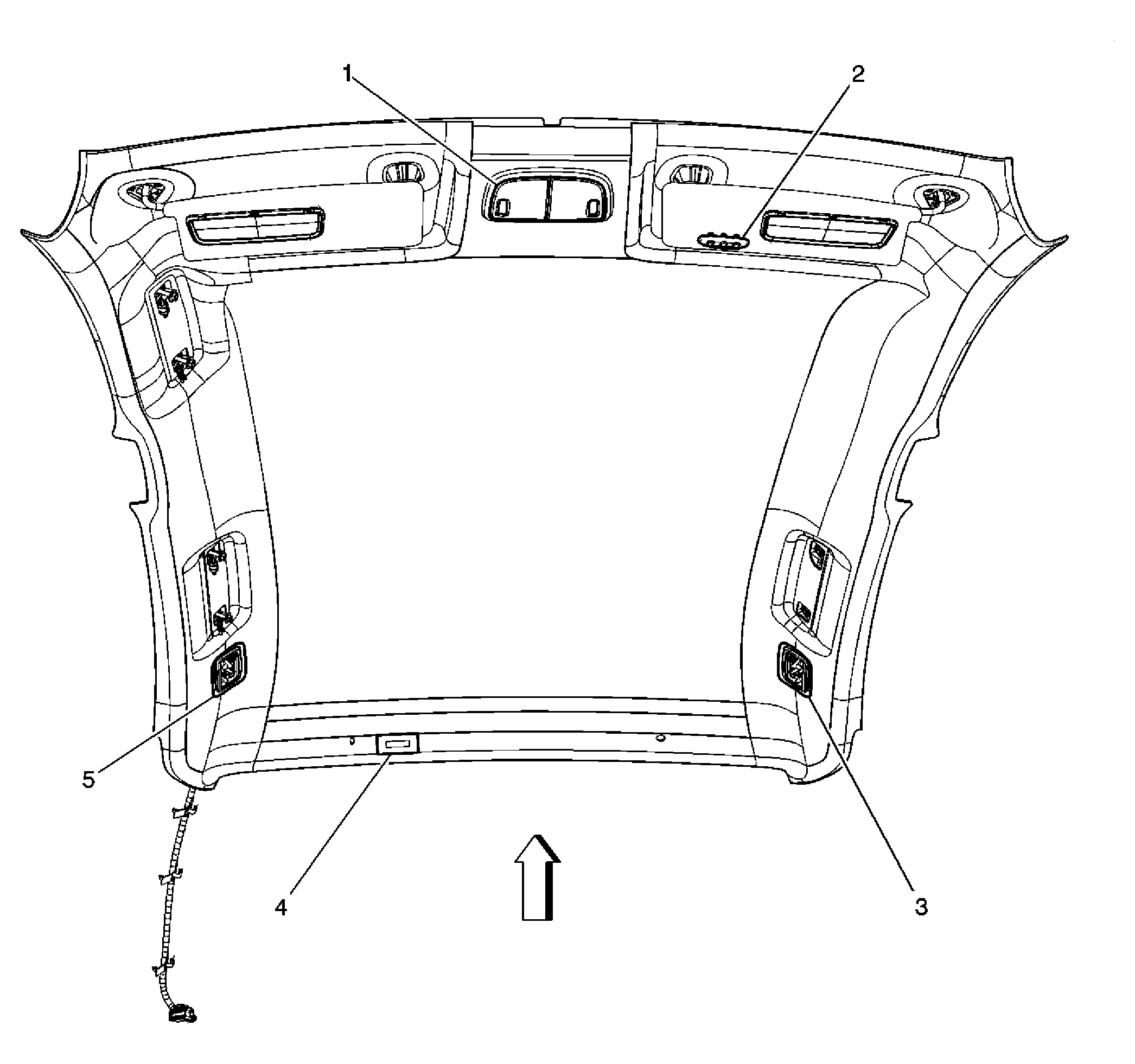

| Callout | Component Name |
|---|---|
| 1 | Reading Lamps - Overhead Console |
| 2 | Garage Door Opener |
| 3 | Dome/Reading Lamp - Left |
| 4 | Rear Park Assist (RPA) Display |
| 5 | Dome/Reading Lamp - Right |

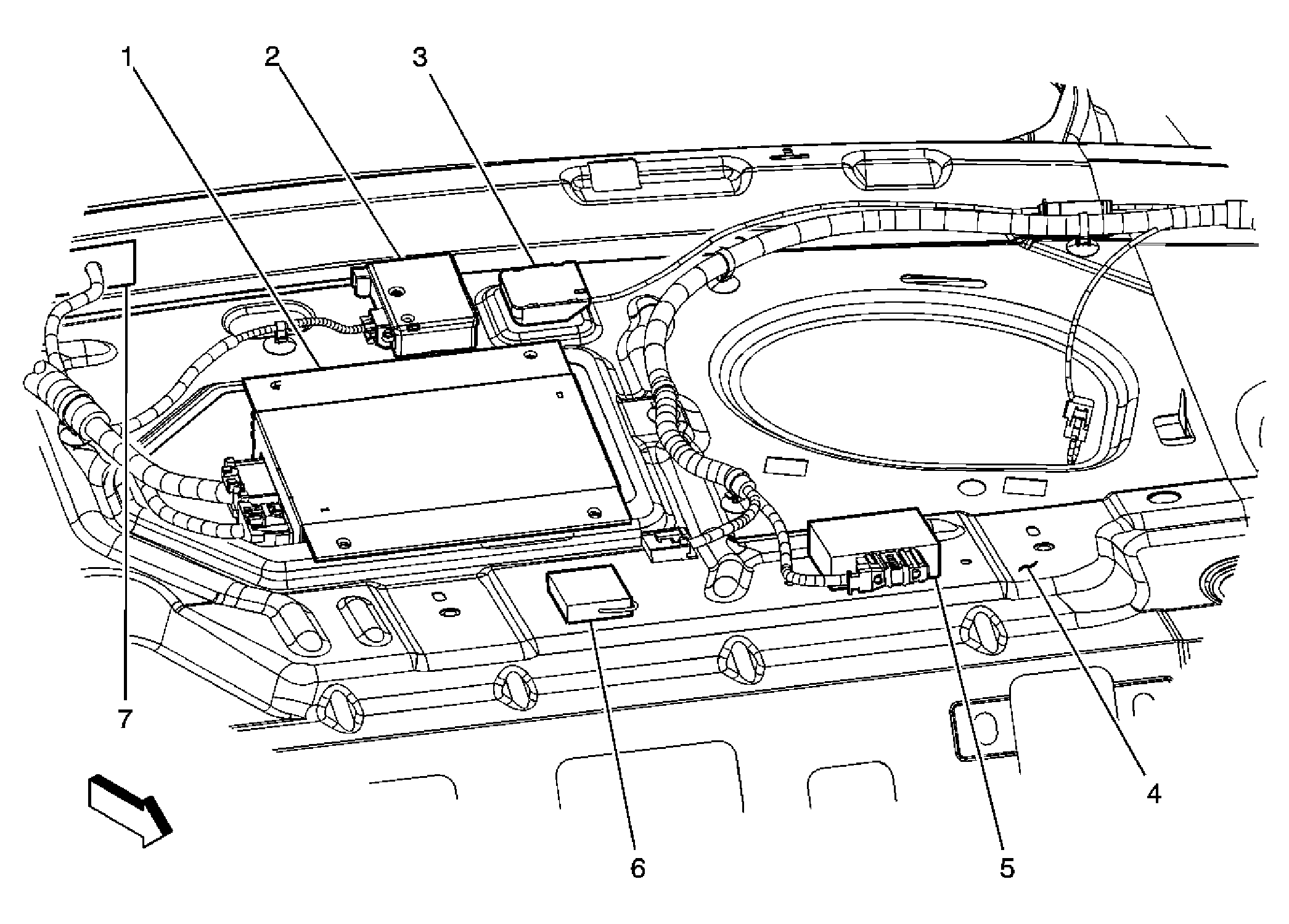

| Callout | Component Name |
|---|---|
| 1 | Audio Amplifier |
| 2 | Remote Control Door Lock Receiver (RCDLR) |
| 3 | Navigation Antenna |
| 4 | Rear Window Shelf |
| 5 | Rear Parking Assist (RPA) Module |
| 6 | Electronic Compass Module |
| 7 | Rear Compartment Courtesy Lamp |

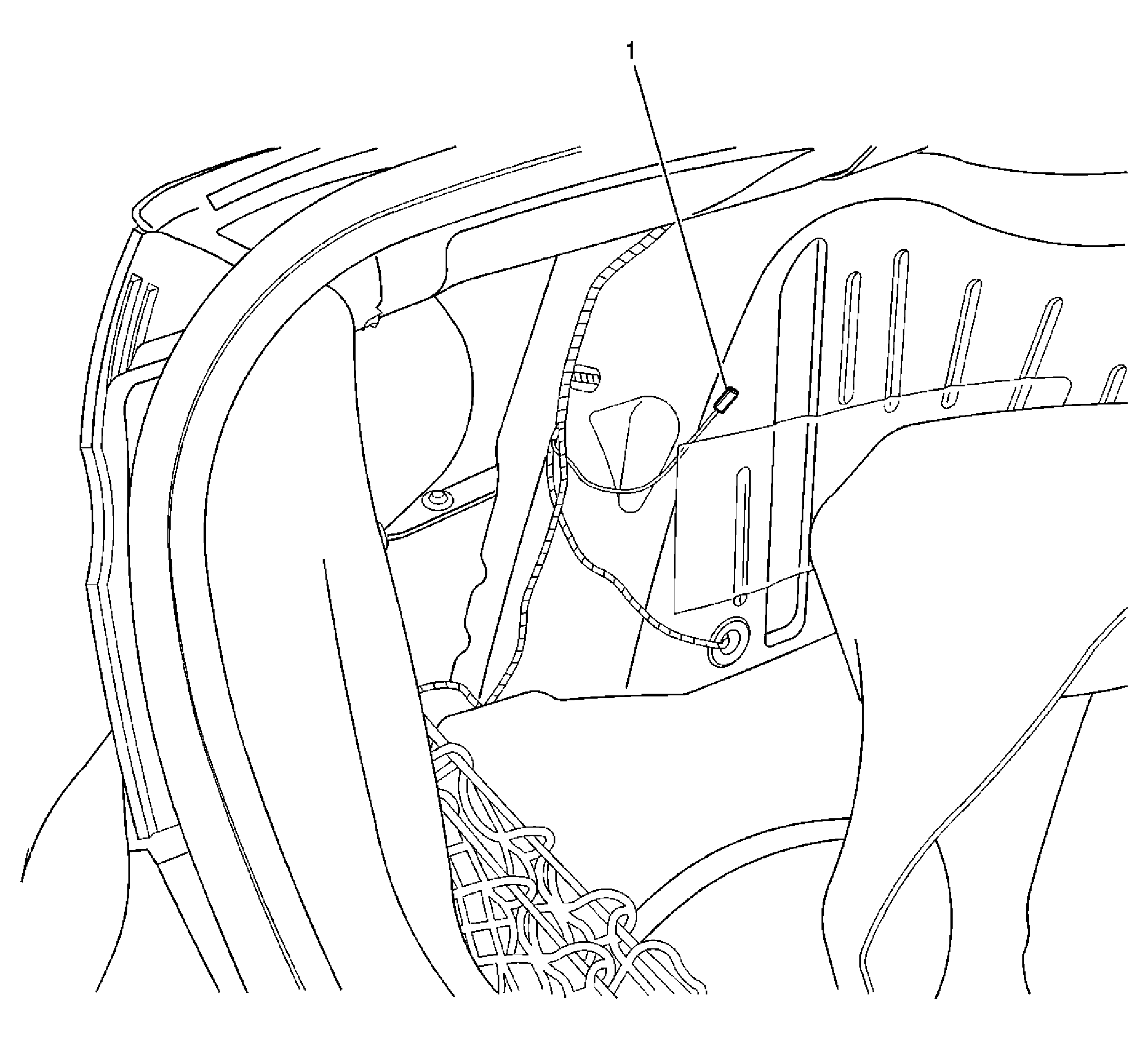

| Callout | Component Name |
|---|---|
| 1 | Rear Parking Assist (RPA) Diagnostic Connector |

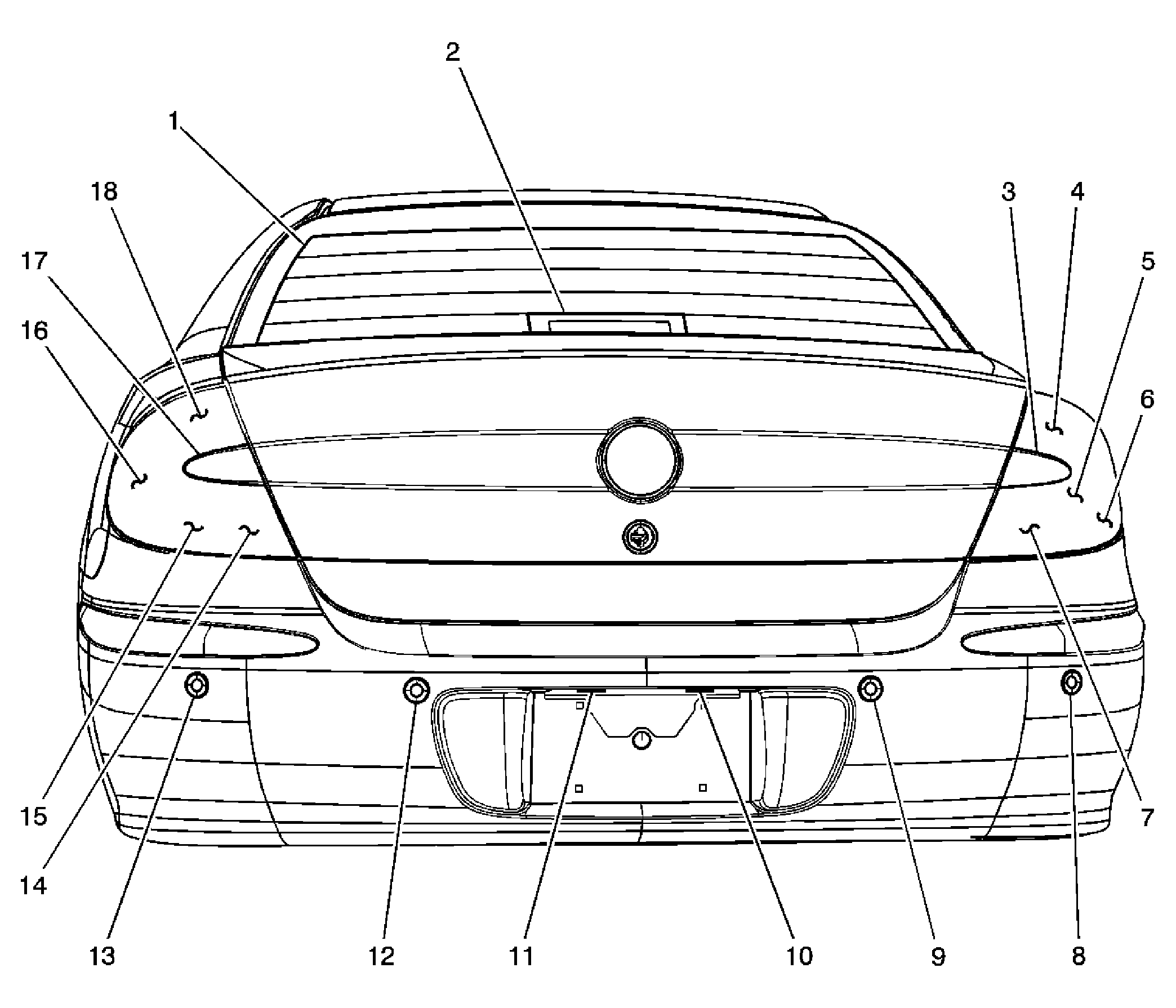

| Callout | Component Name |
|---|---|
| 1 | Rear Window Defogger Grid |
| 2 | Center High Mounted Stop Lamp (CHMSL) |
| 3 | Backup Lamp - Right |
| 4 | Tail Lamp - Right Upper |
| 5 | Tail/Stop and Turn Signal Lamp - Right |
| 6 | Marker Lamp - Right |
| 7 | Tail Lamp - Right Lower |
| 8 | Object Sensor - RR Corner |
| 9 | Object Sensor - RR Middle |
| 10 | License Lamp - Right |
| 11 | License Lamp - Left |
| 12 | Object Sensor - LR Middle |
| 13 | Object Sensor - LR Corner |
| 14 | Tail Lamp - Left Lower |
| 15 | Marker Lamp - Left |
| 16 | Tail/Stop and Turn Signal Lamp - Left |
| 17 | Backup Lamp - Left |
| 18 | Tail Lamp - Left Upper |
