2005 Chevrolet ClassicFACTORY OEM SERVICE PROCEDURE
Removal Procedure

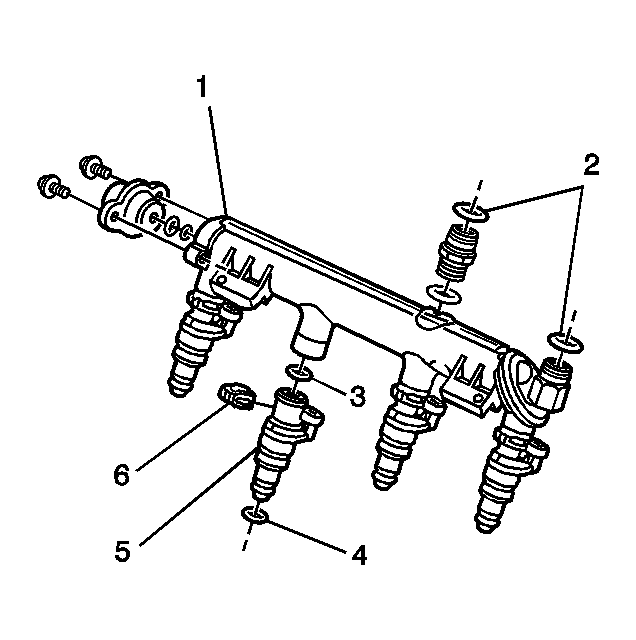

- Remove the fuel rail. Refer to Fuel Rail Assembly Replacement .
- Remove the fuel injector retainer clip (6).
- Remove the fuel injector (5) from the fuel rail (1).
- Remove and discard the fuel injector O-rings (3, 4).
IMPORTANT:
Visually inspect the fuel injector in order to determine if the upper O-ring was also removed. If the upper O-ring in not removed, remove the O-ring from the fuel rail assembly.
