Installation Procedure
- Install the duct and the resonator assembly through the wheel house opening.

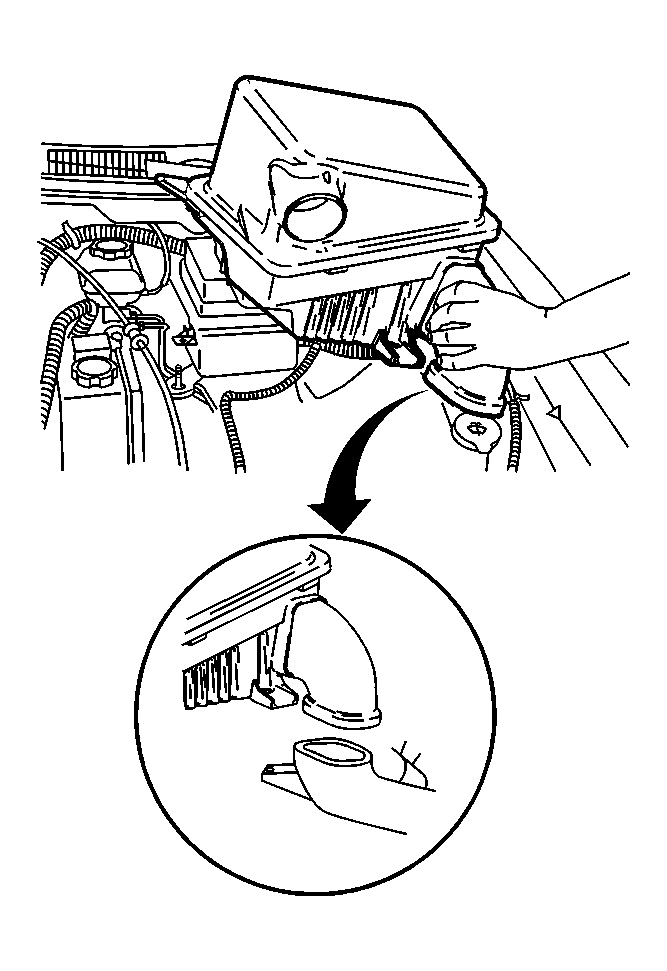

- Verify the full engagement of the resonator assembly to the air cleaner inlet.

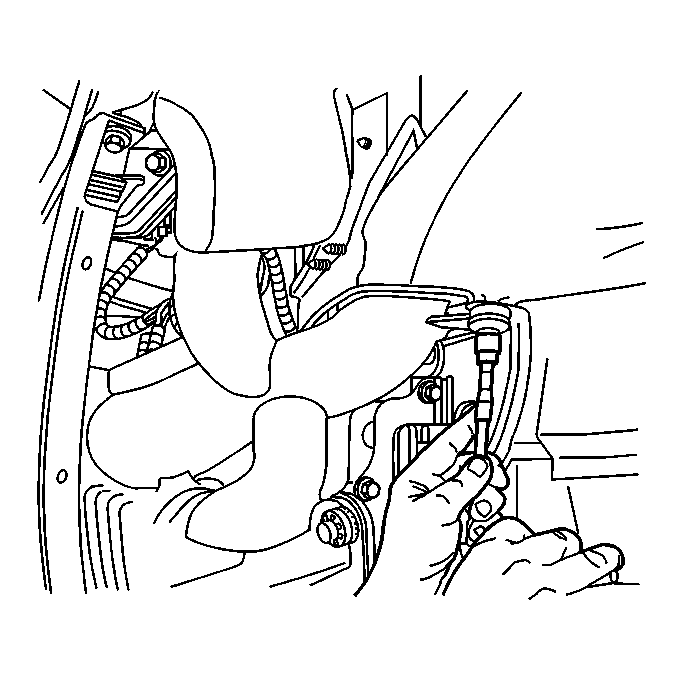

- Install the duct attaching nut.
Tighten: Tighten the nut to 10 N.m (89 lb in).

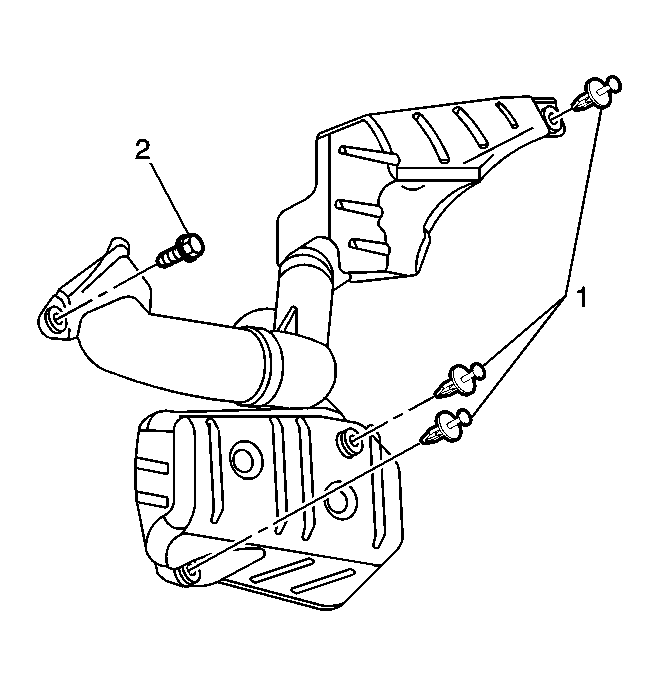

- Install the 3 attaching fasteners (1) to the resonator.

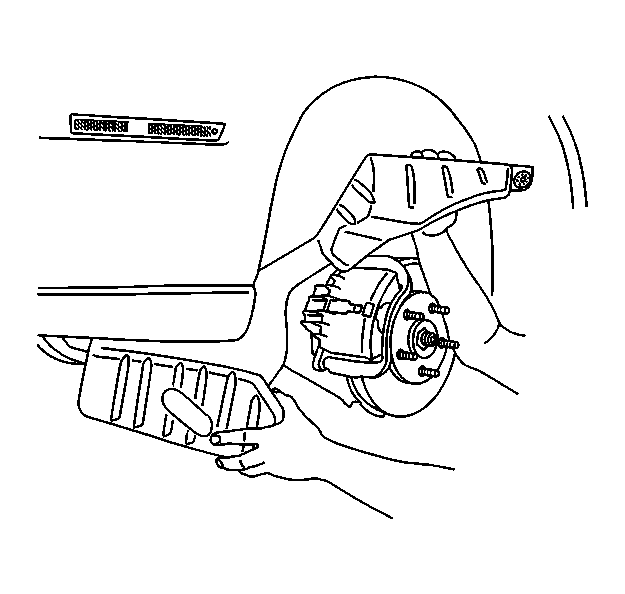

- Install the left front wheelhouse panels. Refer to Front Fender Liner Replacement in Body Front End.
- Install the left front wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
- Lower the vehicle.
- Install the screw (2) to the air cleaner intake duct.
Tighten: Tighten the screw to 10 N.m (89 lb in).
- Install the left front headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement in Lighting Systems.
