2005 Chevrolet ClassicFACTORY OEM SERVICE PROCEDURE

Removal Procedure

  1. Remove the left sound insulator. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages, and Console.

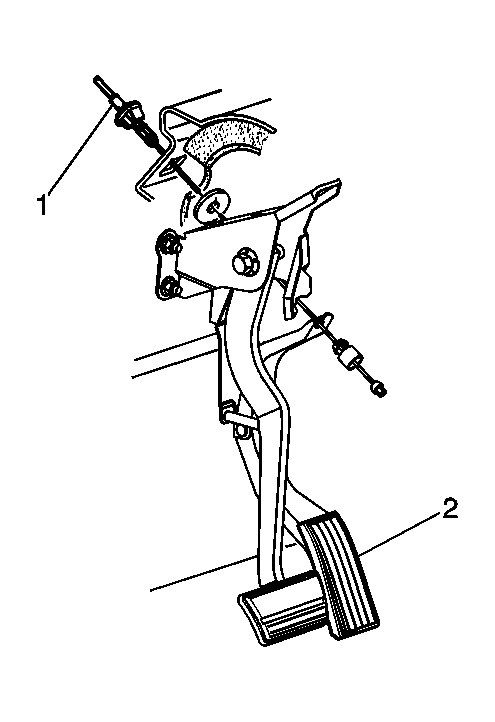

    2. Fig 1: Identifying Accelerator Control Cable
    GM14159Courtesy of GENERAL MOTORS CORP.
  2. Depress the accelerator control cable tangs (1) from the pedal lever assembly.
  3. Remove the accelerator control cable from the pedal lever assembly.
    4. Fig 2: Identifying Cruise Control Cable
    GM782238Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control cable (1), if applicable.
    5. Fig 3: Control Cable Bracket View
    GM782246Courtesy of GENERAL MOTORS CORP.
  5. Release the accelerator control cable lug (3) from the throttle body assembly (4).
  6. Depress the tangs on the accelerator control cable (2) while pulling the accelerator control cable through the accelerator control cable bracket (1).
  7. Remove the accelerator control cable from the bracket.

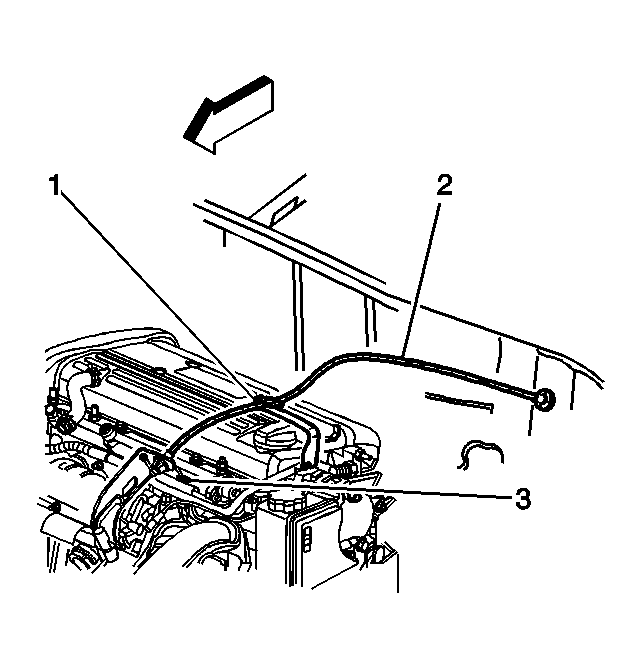

    8. Fig 4: View Of Control Cable & Support Clip
    GM782235Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the accelerator control cable (2) from the support clip (1).
  9. Remove the cable from the vehicle.
