2005 Chevrolet ClassicFACTORY OEM SERVICE PROCEDURE
Computer/Integrating Systems Component Views

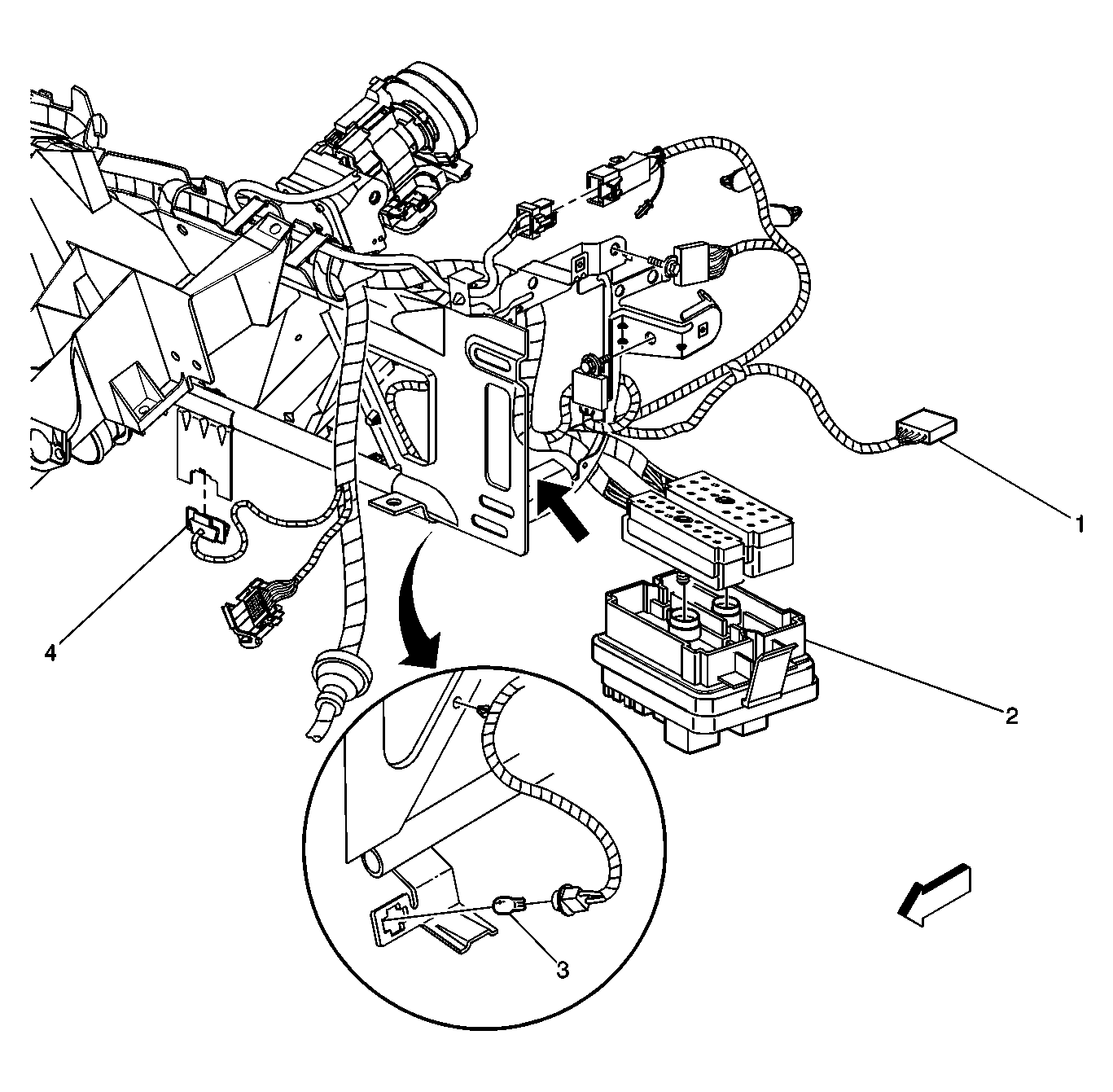

| Callout | Component Name |
|---|---|
| 1 | Rear Compartment Lid Release Switch Connector |
| 2 | IP Fuse Block - Left |
| 3 | Courtesy Lamp - Left |
| 4 | Data Link Connector (DLC) |

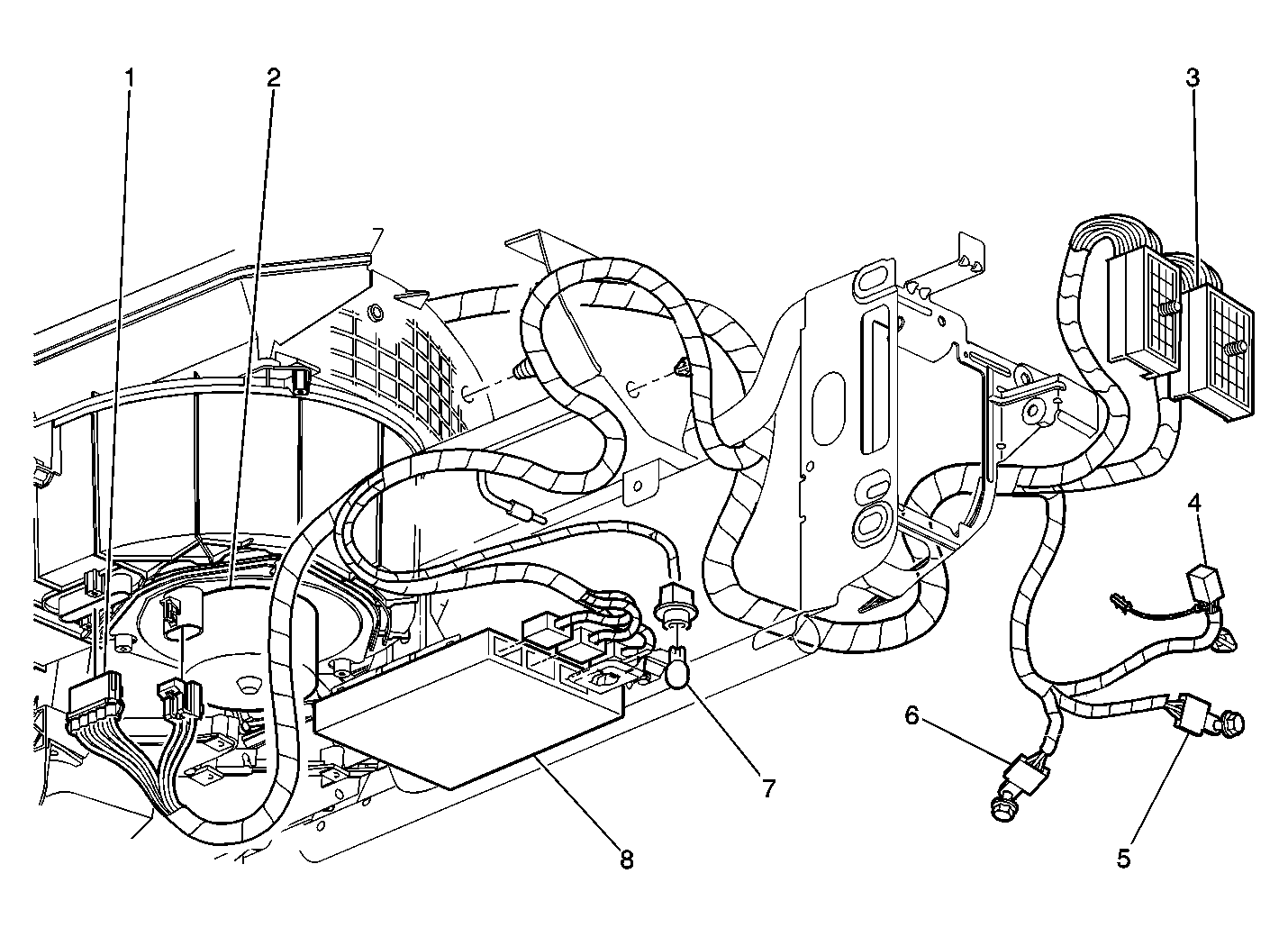

| Callout | Component Name |
|---|---|
| 1 | Blower Motor Resistor Assembly Connector |
| 2 | Blower Motor |
| 3 | Right I/P Fuse Block |
| 4 | Inflatable Restraint I/P Module Connector |
| 5 | SP204, G204 (prior to 2004 model year) |
| 6 | SP203, G203 |
| 7 | Courtesy Lamp - Right |
| 8 | Body Control Module (BCM) |
