2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Turn OFF the ignition.
- Remove the engine cover from the engine.

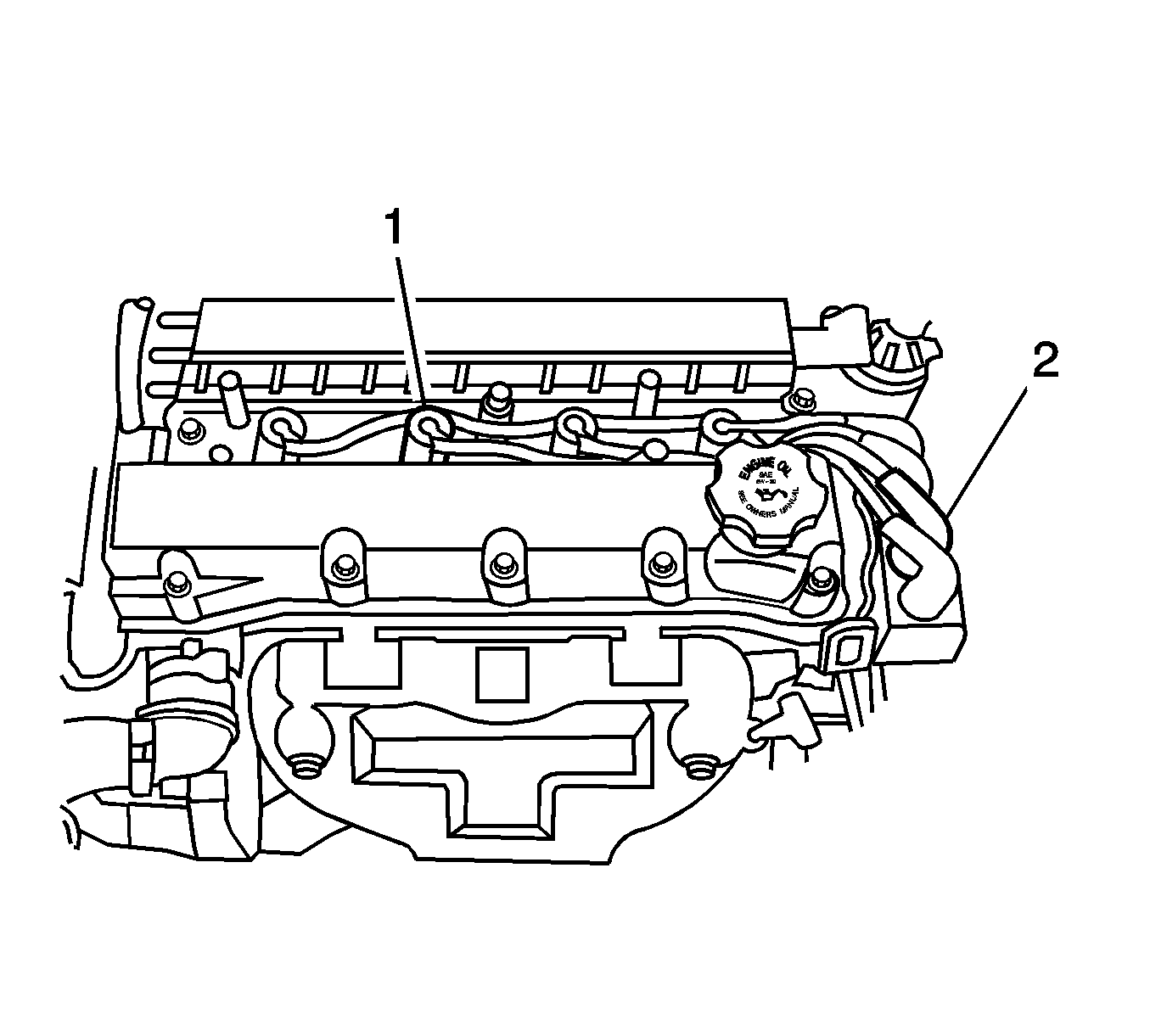

- Disconnect the spark plug wire (1) at each spark plug.
- Twist each spark plug boot 1/2 turn before removing.
- Pull only on the boot or use a tool designed for this purpose in order to remove the wire from each spark plug.
- Disconnect the spark plug wire from the coil (2).
- Twist each spark plug boot 1/2 turn before removing.
- Pull only on the boot or use a tool designed for this purpose in order to remove the wires from the coil.
