2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE
Daytime Running Lamp (DRL) Control Module Connector End Views

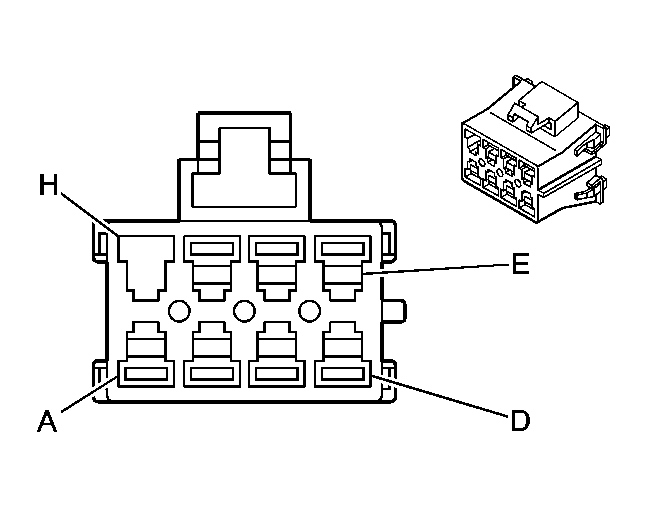

Daytime Running Lamp (DRL) Control Module (North America)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A | OG | 140 | Battery Voltage |
| B | L-GN/WH | 11 | Headlamp High Beam Supply Voltage |
| C | YE/D-GN | 12 | Headlamp Low Beam Supply Voltage |
| D | - | - | Not Used |
| E | BK | 450 | Ground |
| F | PK | 239 | Ignition 1 Voltage |
| G | WH | 629 | DRL ON Indicator Control |
| H | - | - | Not Used |

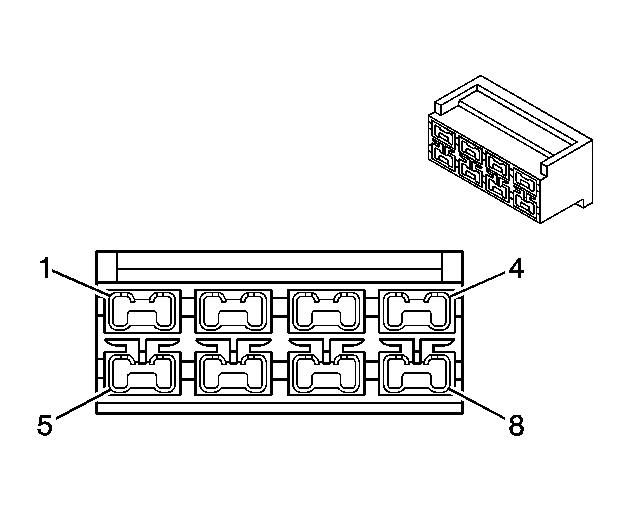

Daytime Running Lamp (DRL) Control Module (Scandinavia)
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | OG | 140 | Battery Positive Voltage |
| 2 | PU | 709 | Left Park Lamp Supply Voltage |
| 3 | BN | 27 | DRL Relay On Signal |
| 4 | YE/GN | 12 | Headlamp Low Beam Supply Voltage |
| 5 | BK | 450 | Ground |
| 6 | PK | 239 | Ignition 1 Voltage |
| 7 | BN/WH | 309 | Right Park Lamp Supply Voltage |
| 8 | GN | 31 | Oil Pressure Indicator Control |
