2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

Back Up Lamp Switch Connector End Views

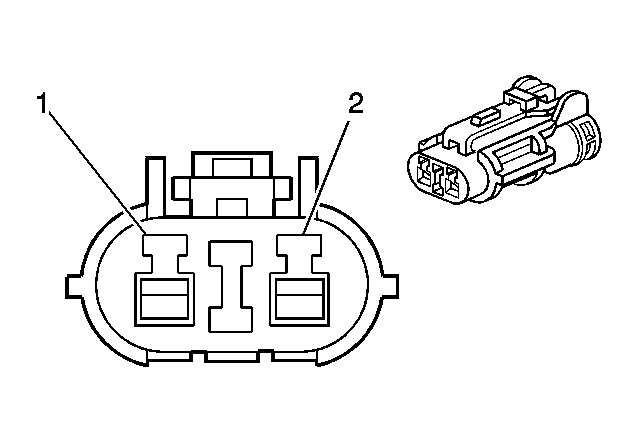

Back Up Lamp Switch (1.2L) (M/T)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610320 2-Way F SWP Series (BK)
Pin	Wire Color	Circuit No.	Function
1	PK	439	Ignition 1 Voltage
2	L-GN	24	Backup Lamp Supply Voltage

Back Up Lamp Switch (1.4L, 1.5L, 1.6L) (M/T)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		ZPF 2-3 or AK 7207 2-Way F
Pin	Wire Color	Circuit No.	Function
A	PK	439	Ignition 1 Voltage
B	L-GN	24	Backup Lamp Supply Voltage
