2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

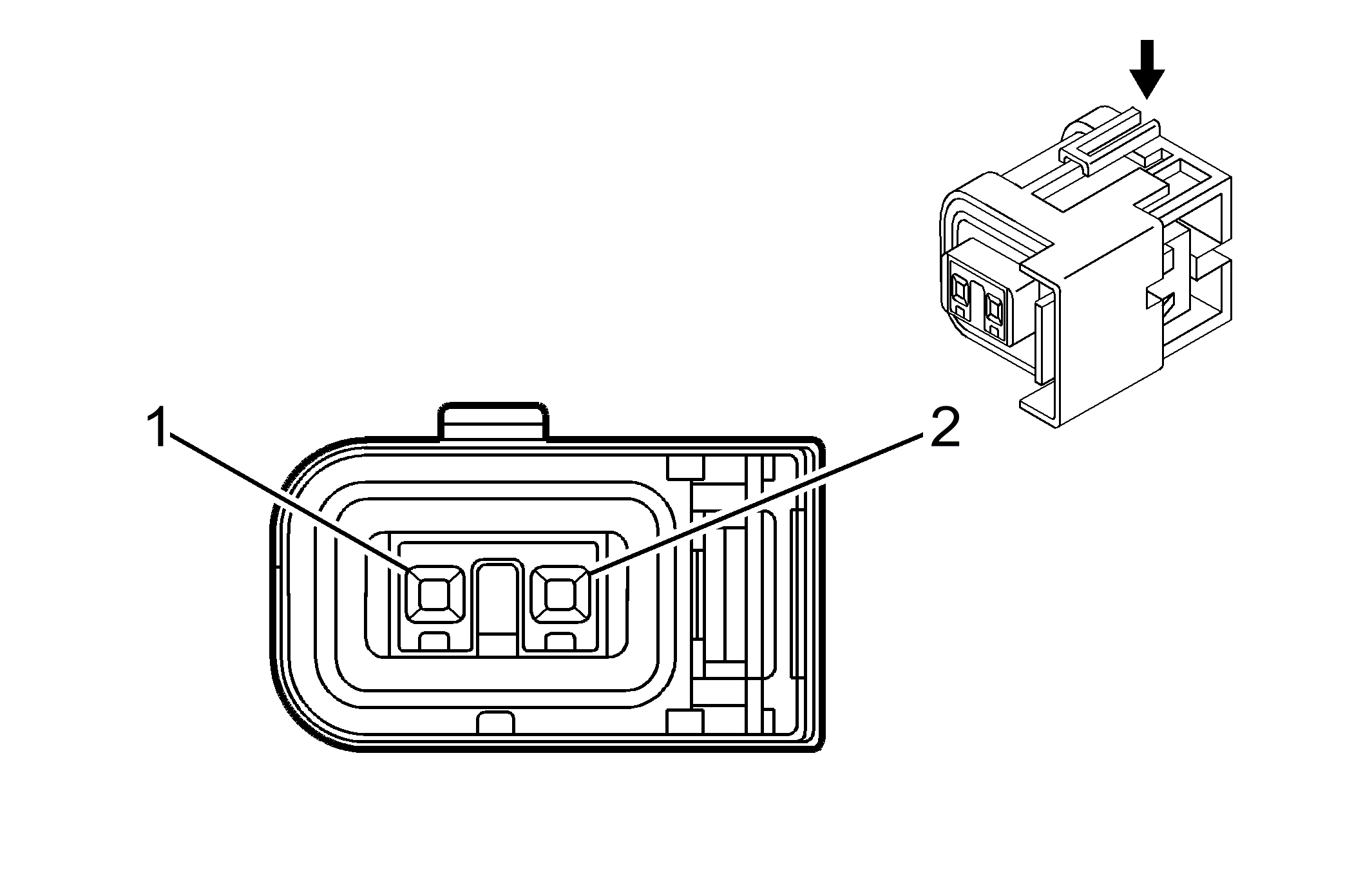

Fuel Injector Connector End Views

Fuel Injector 1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 368468-1 2-Way F Injector Plug Assembly (BK)
Pin	Wire Color	Circuit No.	Function
1	BN	1733	Ignition 1 Voltage
2	BN/BK	1747	Fuel Injector 1 Control

Fuel Injector 2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 368468-1 2-Way F Injector Plug Assembly (BK)
Pin	Wire Color	Circuit No.	Function
1	BN	1733	Ignition 1 Voltage
2	L-GN	1746	Fuel Injector 2 Control

Fuel Injector 3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 368468-1 2-Way F Injector Plug Assembly (BK)
Pin	Wire Color	Circuit No.	Function
1	BN	1733	Ignition 1 Voltage
2	BN/WH	1745	Fuel Injector 3 Control

Fuel Injector 4

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 368468-1 2-Way F Injector Plug Assembly (BK)
Pin	Wire Color	Circuit No.	Function
1	BN	1733	Ignition 1 Voltage
2	YE	1744	Fuel Injector 4 Control
