2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

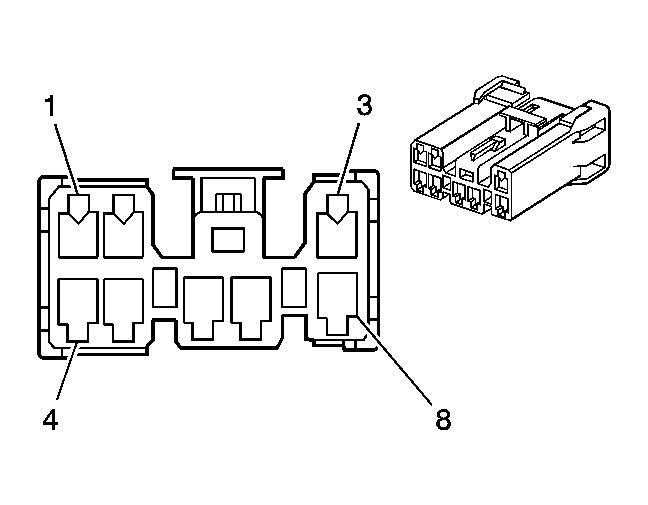

Multifunction Alarm Module Connector End View
Multifunction Alarm Module
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BK/WH | 238 | Seat Belt Switch - Driver |
| 2 | L-GN | 80 | Key In Ignition Switch Signal |
| 3 | PU/WH | 821 | Engine Overspeed Indicator Control |
| 4 | PU | 126 | Left Front Door Open Switch Signal |
| 5 | BK | 450 | Ground |
| 6 | BN/WH | 309 | Right Park Lamp Supply Voltage |
| 7 | - | - | Not Used |
| 8 | PK | 239 | Ignition 1 Voltage |
