2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

Installation Procedure

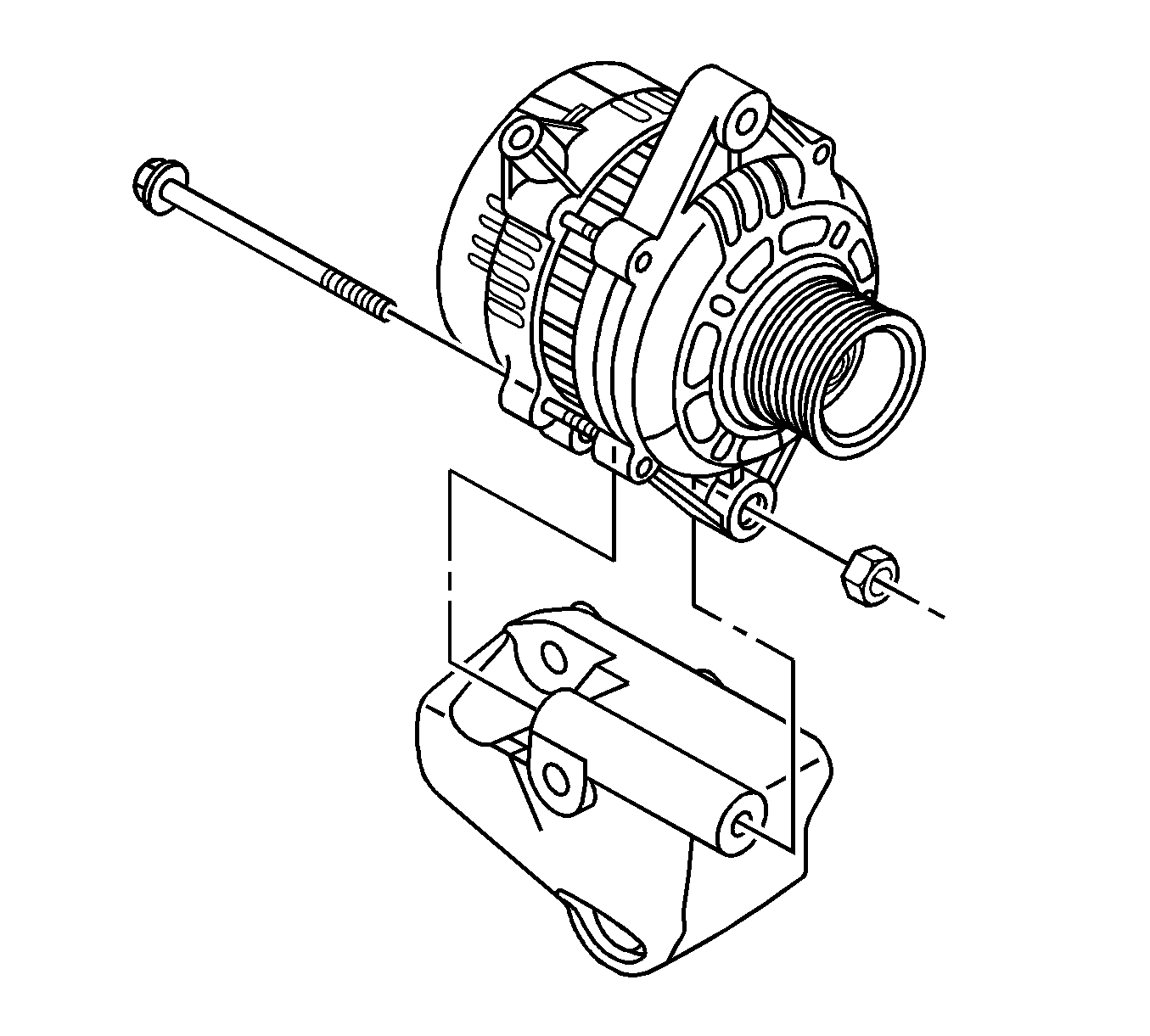

    Fig 1: Removing And Installing Generator, Nuts And Bracket-To-Generator Bolts
    GM1241862Courtesy of GENERAL MOTORS CORP.
  1. Install the generator at the generator lower bracket and insert the generator bolts.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the nut and the washers on the generator lower bracket-to-generator bolts.

    Tighten:  Tighten the generator lower bracket-to-generator nuts to 25 N.m (18 lb ft).

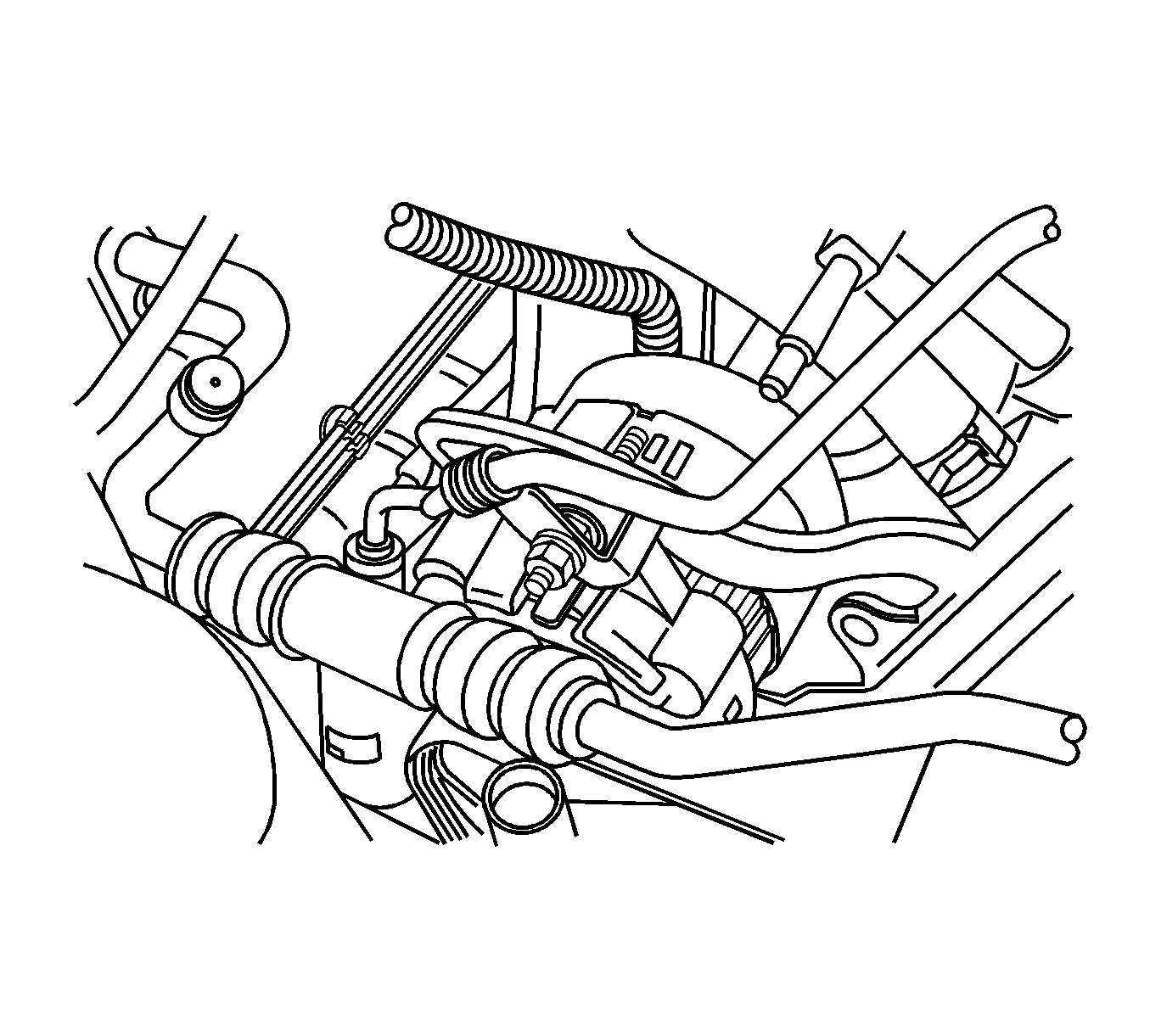

    3. Fig 2: Installing Generator, Lower Support Bracket Assembly, And Bolts
    GM1241863Courtesy of GENERAL MOTORS CORP.
  3. Install the generator and the lower support bracket assembly to the engine block with the bolts.
  4. Secure the generator to the shackle bracket with the bolt.

    Tighten:  Tighten the generator shackle bracket bolt to 25 N.m (18 lb ft).

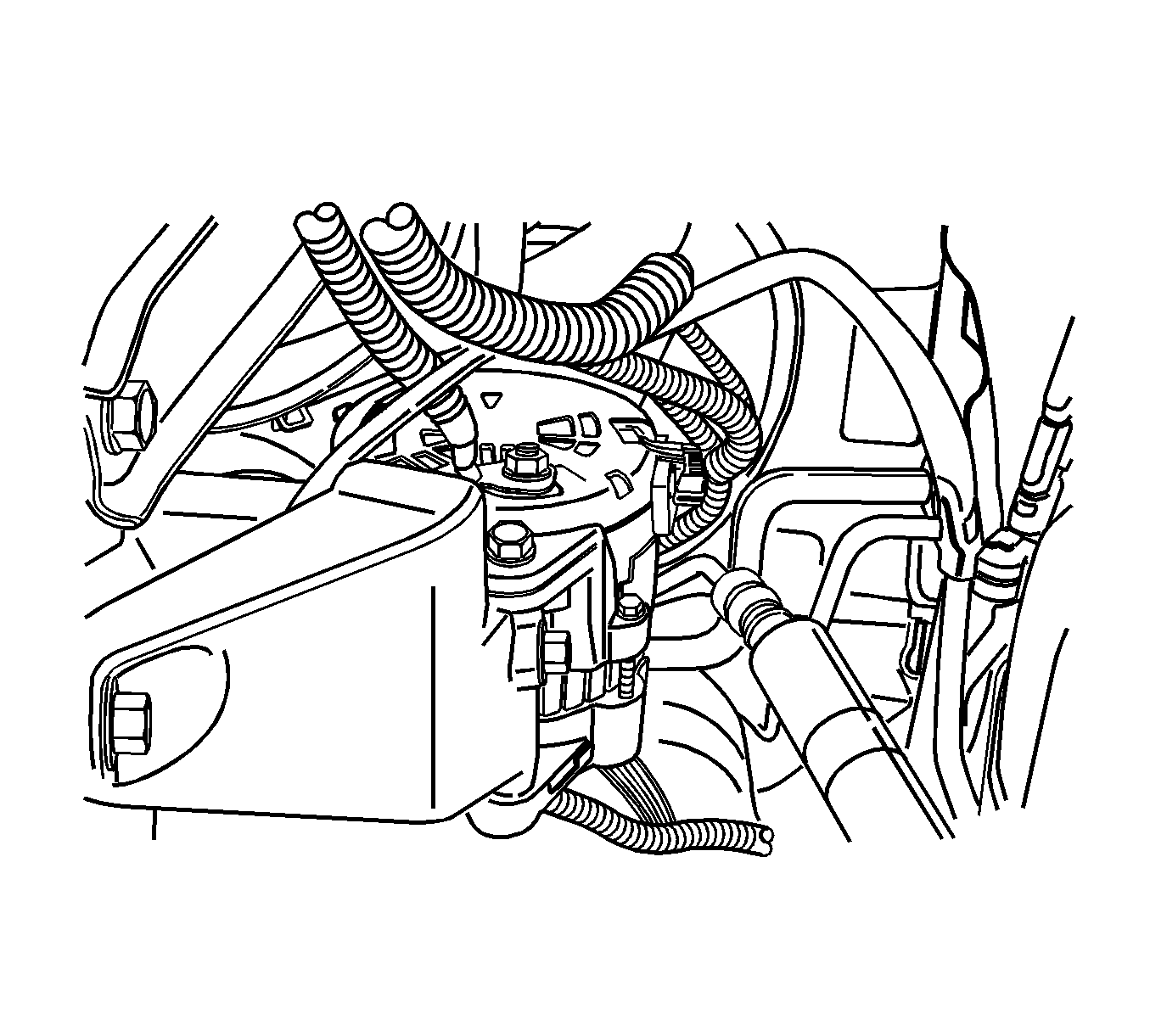

    5. Fig 3: View Of Generator Voltage Regulator
    GM1241861Courtesy of GENERAL MOTORS CORP.
  5. Connect the harness connector to the back of the generator.
  6. Install the generator lead to the battery and fasten the lead with the nut.

    Tighten:  Tighten the generator battery lead nut to 15 N.m (11 lb ft).

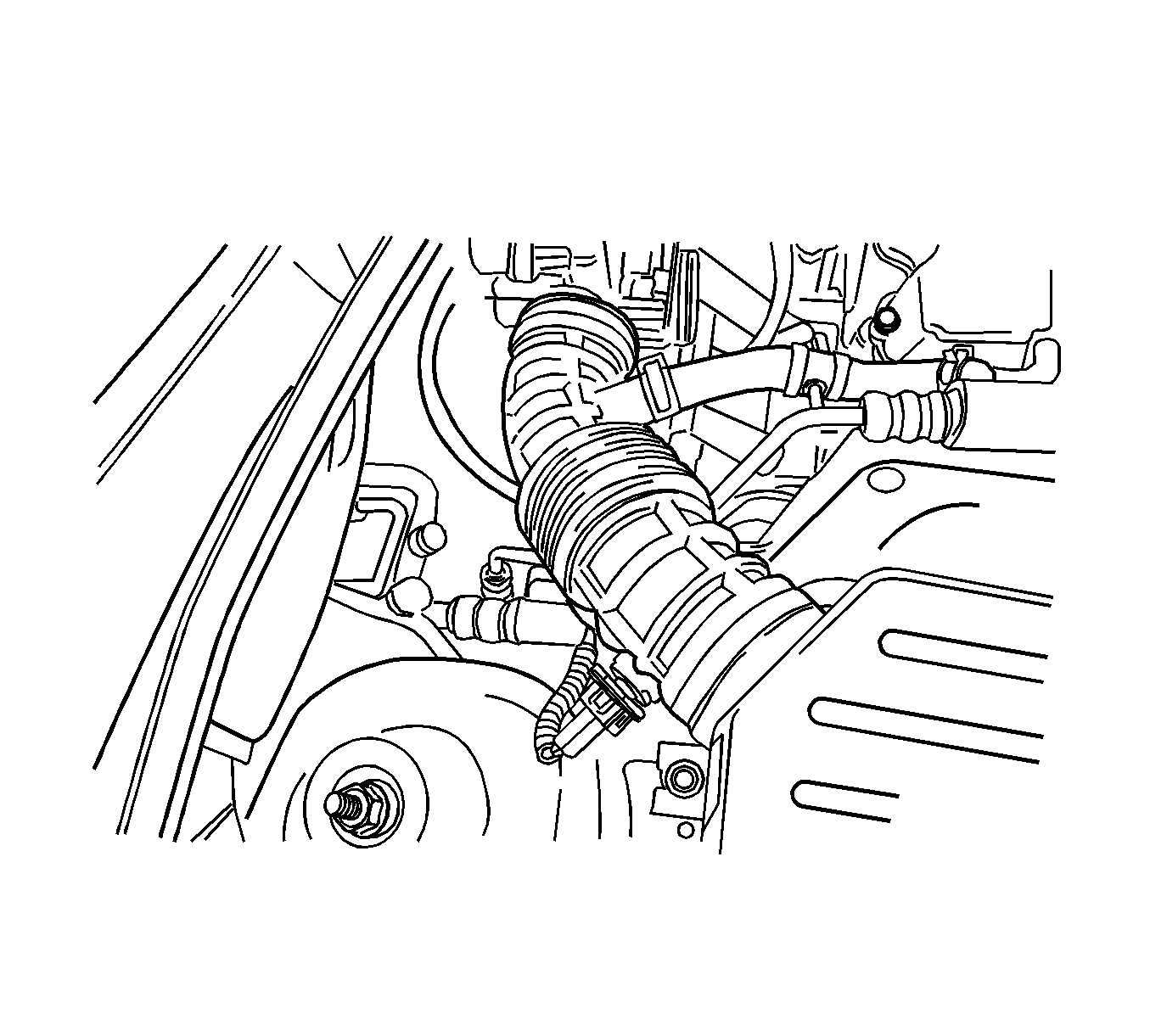

    7. Fig 4: Locating Intake Ducting To Engine
    GM1241530Courtesy of GENERAL MOTORS CORP.
  7. Install the air intake tube and the connector.

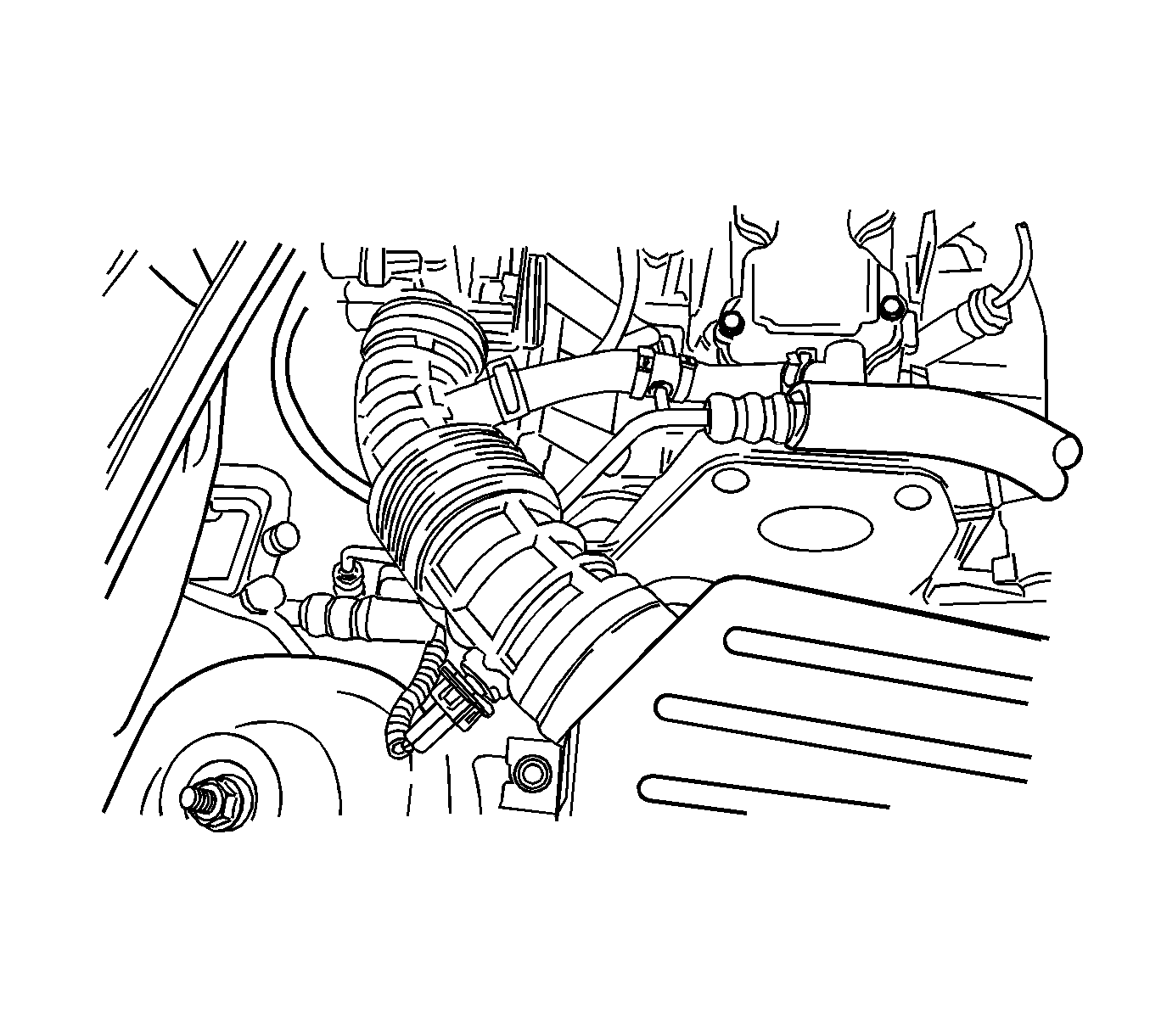

    8. Fig 5: View Of Valve Cover Breather Hose
    GM1241458Courtesy of GENERAL MOTORS CORP.
  8. Install the IAT electrical connector to the air intake tube.
  9. Connect the negative battery cable.
