2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

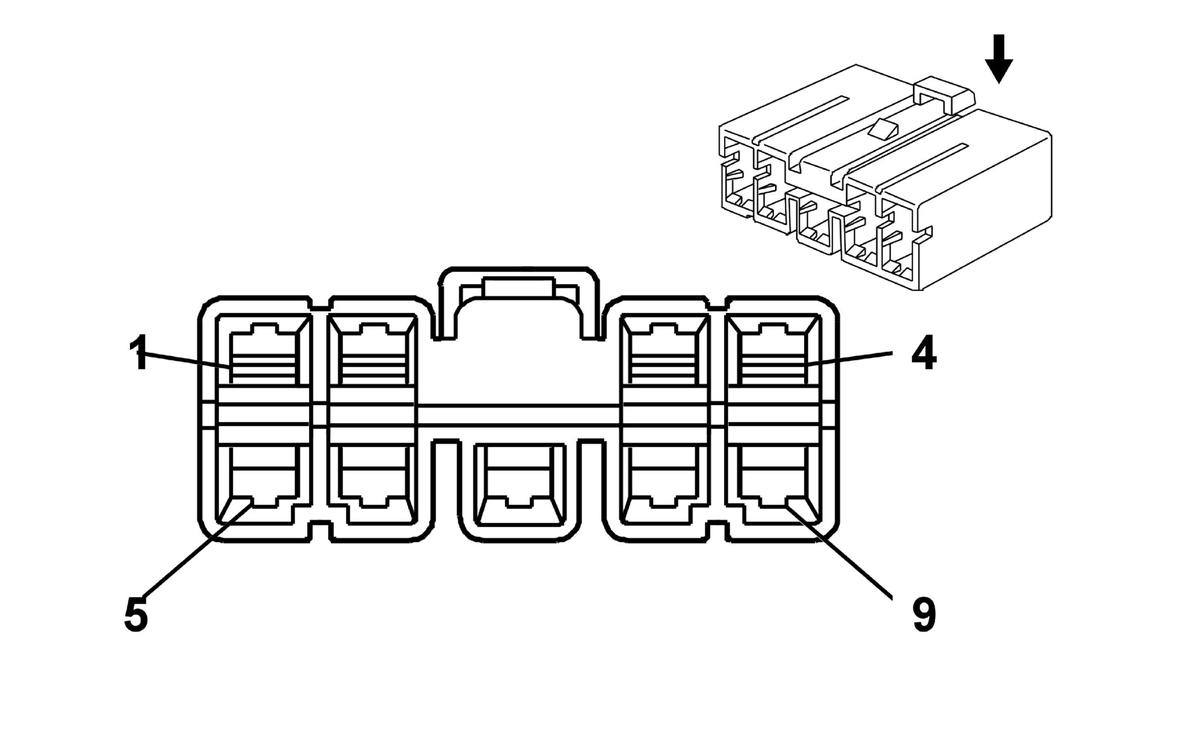

Windshield Wiper Switch Connector End View
Windshield Wiper Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | GY | 393 | Rear Window Wiper Motor Control |
| 2 | L-GN/BK | 392 | Rear Window Washer Pump Control |
| 3 | RD | 441 | Ignition 3 Voltage |
| 4 | D-GN/WH | 94 | Windshield Washer Switch Signal |
| D-GN/WH | 94 | Windshield Washer Switch Signal | |
| 5 | D-BU | 92 | Windshield Wiper Motor Low Speed |
| 6 | BN | 97 | Windshield Wiper Switch Mist/Off/Low Signal |
| 7 | PU | 91 | Windshield Wiper Switch Signal 2 |
| 8 | RD | 441 | Ignition 3 Voltage |
| 9 | WH | 95 | Windshield Wiper Motor High Speed |
