2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

Window Switch Connector End Views

Window Switch - Driver LHD

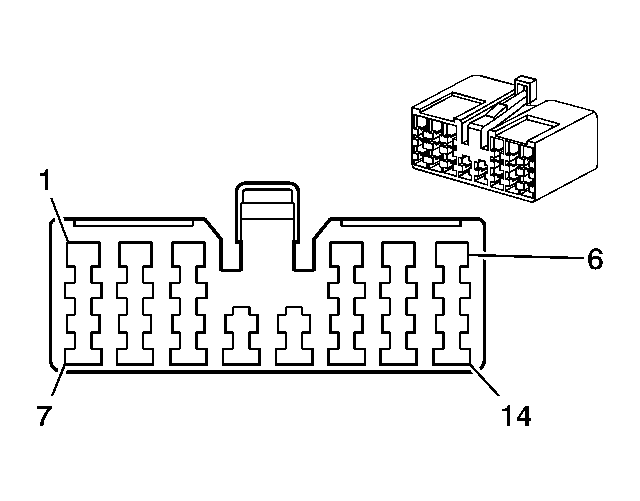

GM1479836Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610798
  • 14-Way F Device Power Window S/W Hsg (WH)
Pin Wire Color Circuit No. Function
1 PU 171 Power Window Master Switch Right Rear Down Signal
2 - - Not Used
3 L-BU 170 Power Window Master Switch Right Rear Up Signal
4 GY/D-GN 169 Power Window Master Switch Left Rear Down Signal
5 - - Not Used
6 L-GN/RD 168 Power Window Master Switch Left Rear Up Signal
7 BN 167 Power Window Master Switch Passenger Front Down Signal
8 BK 650 Ground
9 D-GN 166 Power Window Master Switch Passenger Front Up Signal
10 BN/OG 1307 Power Window Master Switch Lockout Control
11 - - Not Used
12 WH 165 Power Window Switch Driver Down Signal
13 RD/WH 440 Battery Positive Voltage
14 D-BU 164 Power Window Switch Driver Up Control
Window Switch - Driver RHD

GM1479836Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610798
  • 14-Way F Device Power Window S/W Hsg
Pin Wire Color Circuit No. Function
1 PU 171 Power Window Master Switch Right Rear Down Signal
2 - - Not Used
3 L-BU 170 Power Window Master Switch Right Rear Up Signal
4 GY/D-GN 169 Power Window Master Switch Left Rear Down Signal
5 - - Not Used
6 D-GN/RD 168 Power Window Master Switch Left Rear Up Signal
7 WH 165 Power Window Switch Driver Down Signal
8 BK 650 Ground
9 D-BU 164 Power Window Switch Driver Up Signal
10 BN/OG 1307 Power Window Master Switch Lockout Control
11 - - Not Used
12 BN 167 Power Window Master Switch Passenger Front Down Signal
13 RD/WH 41 Ignition 3 Voltage
14 D-GN 164 Power Window Master Switch Passenger Front Up Control
Window Switch - Passenger

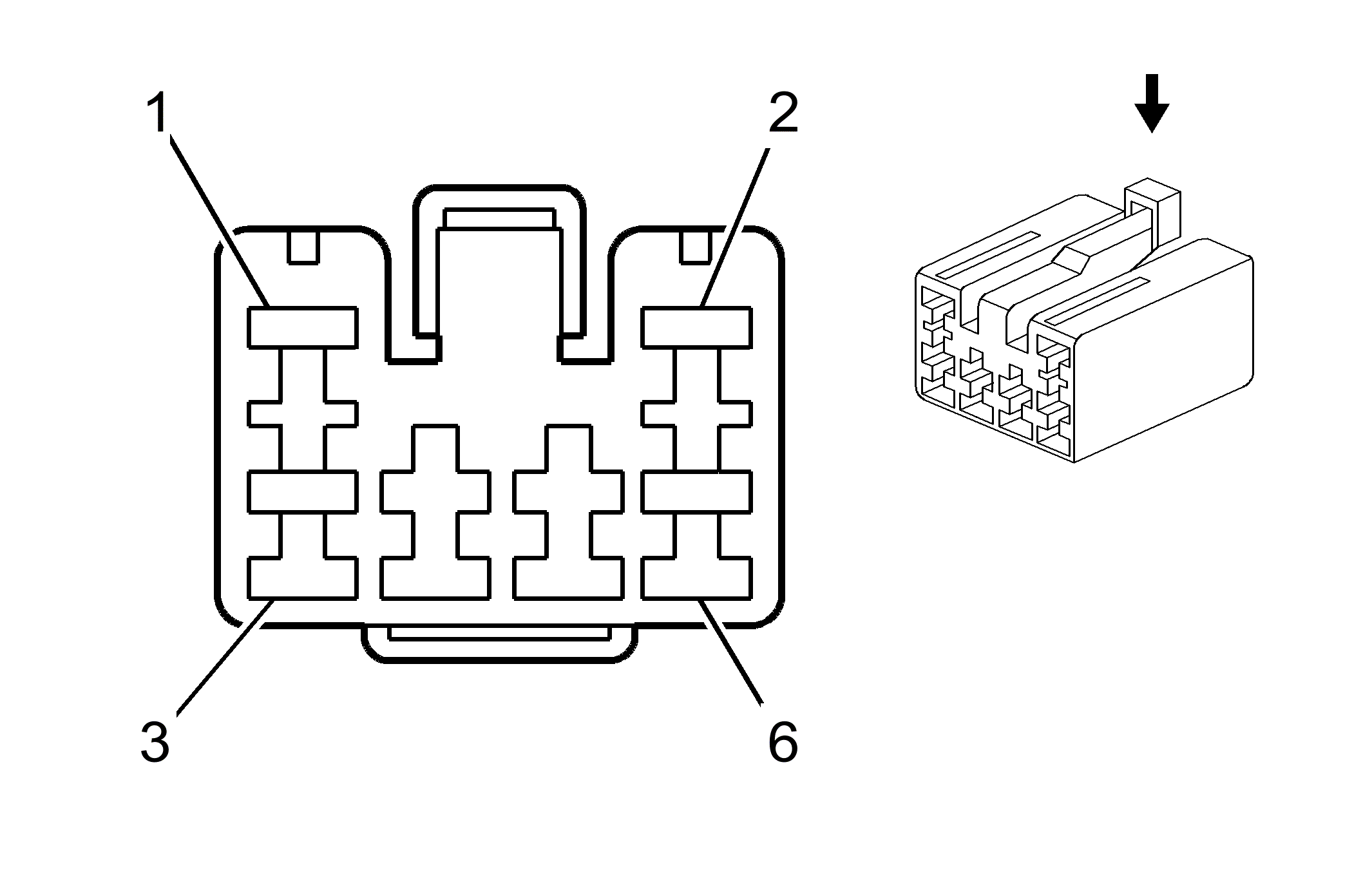

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 BN 167 Power Window Master Switch Passenger Front Down Signal
2 D-GN 166 Power Window Master Switch Passenger Front Up Signal
3 BN/BK 170 Power Window Master Switch Right Rear Up Signal
4 BN/OG 1307 Power Window Master Switch Lockout Control
5 - - Not Used
6 D-GN/WH 168 Power Window Master Switch Left Rear Up Signal
Window Switch - Left Rear

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 GY/RD 169 Power Window Master Switch Left Rear Down Signal
2 L-GN/BK 168 Power Window Master Switch Left Rear Up Signal
3 GY/D-GN 669 Power Window Motor Left Rear Down Control
4 BN/OG 1307 Power Window Master Switch Lockout Control
5 - - Not Used
6 L-GN/RD 668 Power Window Motor Left Rear Up Control
Window Switch - Right Rear

GM1467021Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610152
  • 6-Way F 090 (2.3 mm) Series (WH)
Pin Wire Color Circuit No. Function
1 GY/OG 169 Power Window Master Switch Left Rear Down Signal
2 L-GN/BK 168 Power Window Master Switch Left Rear Up Signal
3 GY/D-GN 669 Power Window Motor Left Rear Down Control
4 BN/OG 1307 Power Window Master Switch Lockout Control
5 - - Not Used
6 L-GN/RD 668 Power Window Motor Left Rear Up Control
