2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

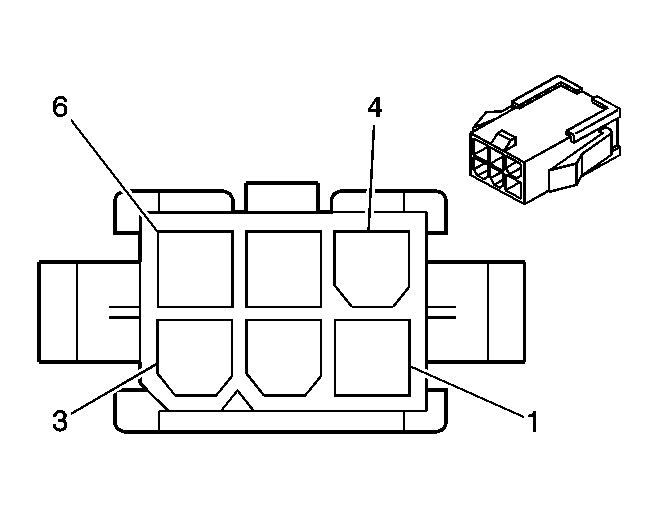

Headlamp Switch Connector End View
Headlamp Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | BN/WH | 309 | Right Park Lamp Supply Voltage |
| 2 | BK/WH | 1352 | Headlamp Control |
| 3 | BK | 450 | Ground |
| 4 | - | - | Not Used |
| 5 | WH/YE | 318 | Front Fog Lamp Supply Voltage |
| 6 | BN | 1080 | Park Lamp Relay Control (w/o Lamp Driver Module) (w/o North America) (w/DRL) |
| BN | 1080 | Park Lamp Relay Control (w/o Lamp Driver Module) | |
| BN/D-BU | 1081 | Park Lamp Relay Control (w/Lamp Driver Module) | |
