2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE
Headlamp Connector End Views

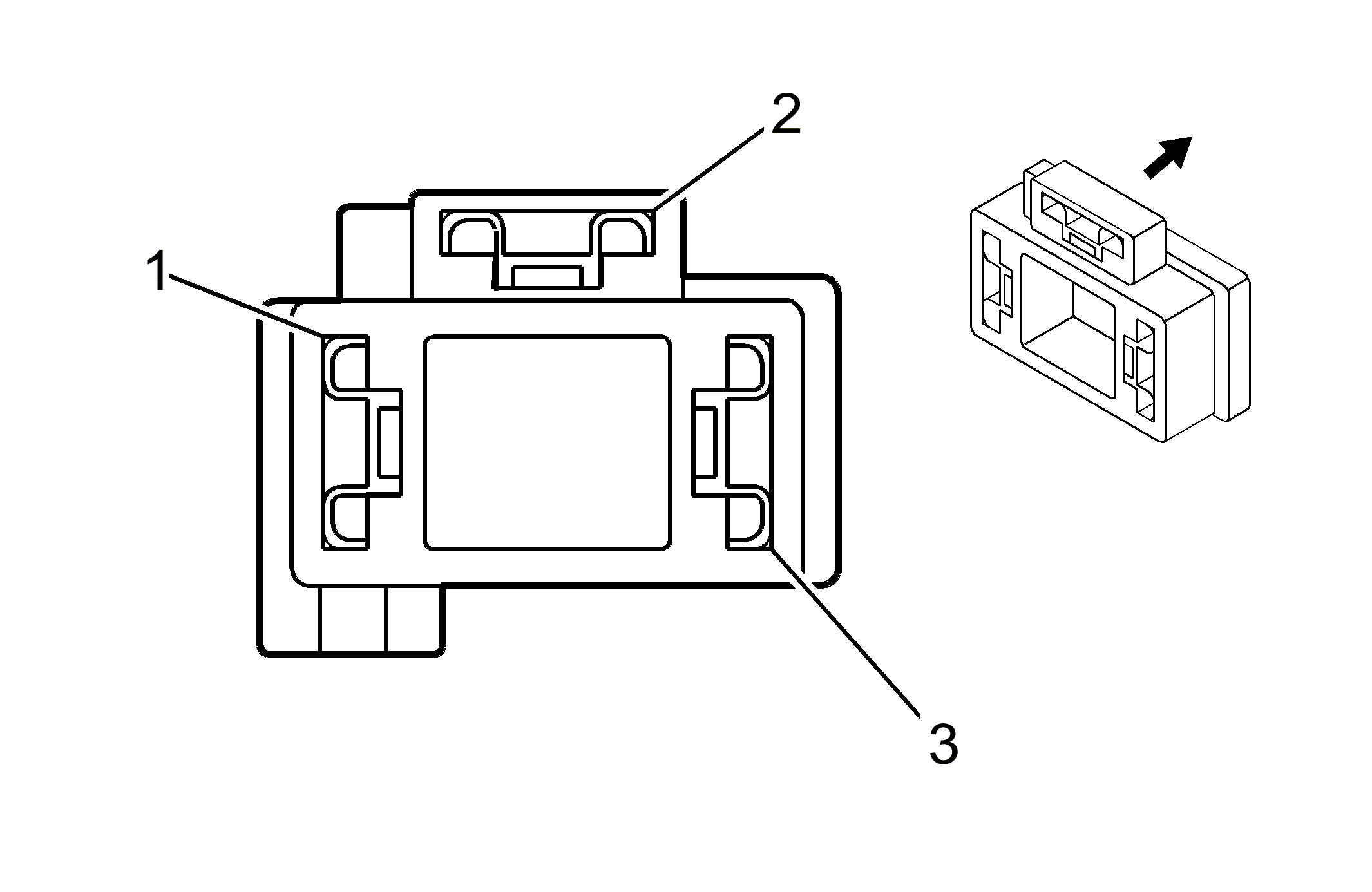

Headlamp - Left
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | PU | 311 | Right Headlamp High Beam Supply Voltage |
| 2 | BN/WH | 312 | Right Headlamp Low Beam Supply Voltage |
| 3 | BK | 150 | Ground |

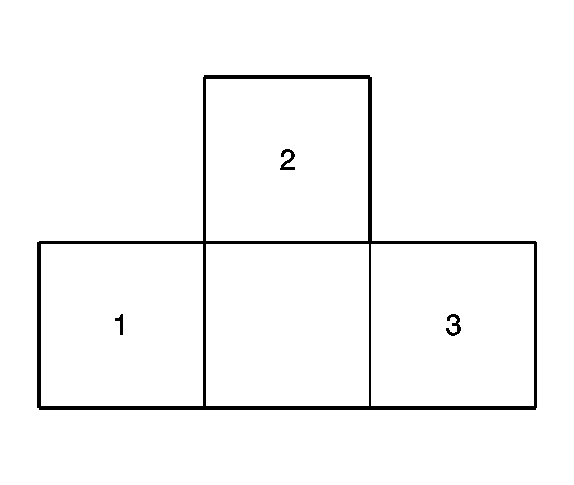

Headlamp - Right
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | GY | 711 | Right Headlamp Low Beam Supply Voltage |
| 2 | YE | 712 | Headlamp Leveling Motor Supply Voltage |
| 3 | BK | 150 | Ground |
