2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

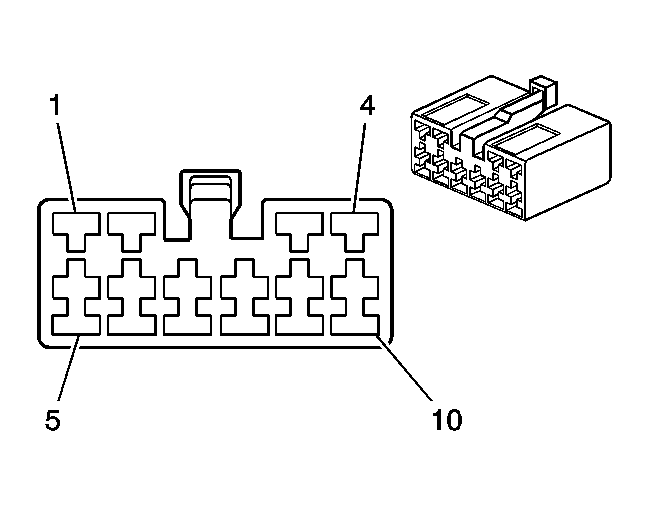

Hazard Switch Connector End View
Hazard Switch
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1 | - | - | Not Used |
| 2 | L-GN/RD | 230 | Instrument Panel Lamps Dimming Control w/Dimming |
| BK | 450 | Ground w/o Dimming | |
| 3 | BN/WH | 309 | Right Park Lamp Supply Voltage |
| 4 | YE | 18 | Right Park Lamp Supply Voltage |
| 5 | D-BU | 14 | Left Turn Signal Lamps Supply Voltage |
| 6 | WH | 15 | Right Turn Signal Lamps Supply Voltage |
| 7 | L-BU | 1508 | Turn Signal Switch Signal |
| 8 | OG | 1040 | Battery Positive Voltage |
| 9 | D-GN | 16 | Turn Signal Flasher Signal |
| D-GN | 16 | Turn Signal Switch Supply Voltage | |
| 10 | PK | 339 | Ignition Voltage |
