2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE

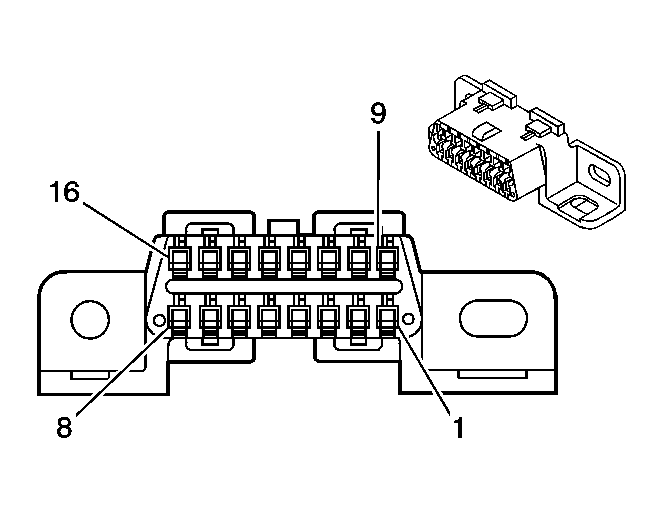

Data Link Connector Connector End View

Data Link Connector

GM1468419Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MOLEX 51116-1601
  • 16-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
1-3 - - Not Used
4 BK/WH 51 Ground
5 BK/WH 51 Ground
6 - - Not Used
7 BK/WH 2051 Transmission Control Module (TMC) Serial Data
D-BU/WH 1800 Theft Serial Data (w/Immobilizer)
BK/WH 2051 Theft Serial Data (w/o Immobilizer)
BK/WH 2051 Electronic Brake Control Module (EBCM) Serial Data (w/ABS)
8 BK/WH 2051 Remote Control Door Lock Control (RCDLR) Serial Data
9-12 - - Not Used
13 BN 337 SIR Serial Data
14-15 - - Not Used
16 OG 440 Battery Positive Voltage
