2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE
Rear Frame (Hatch Back)

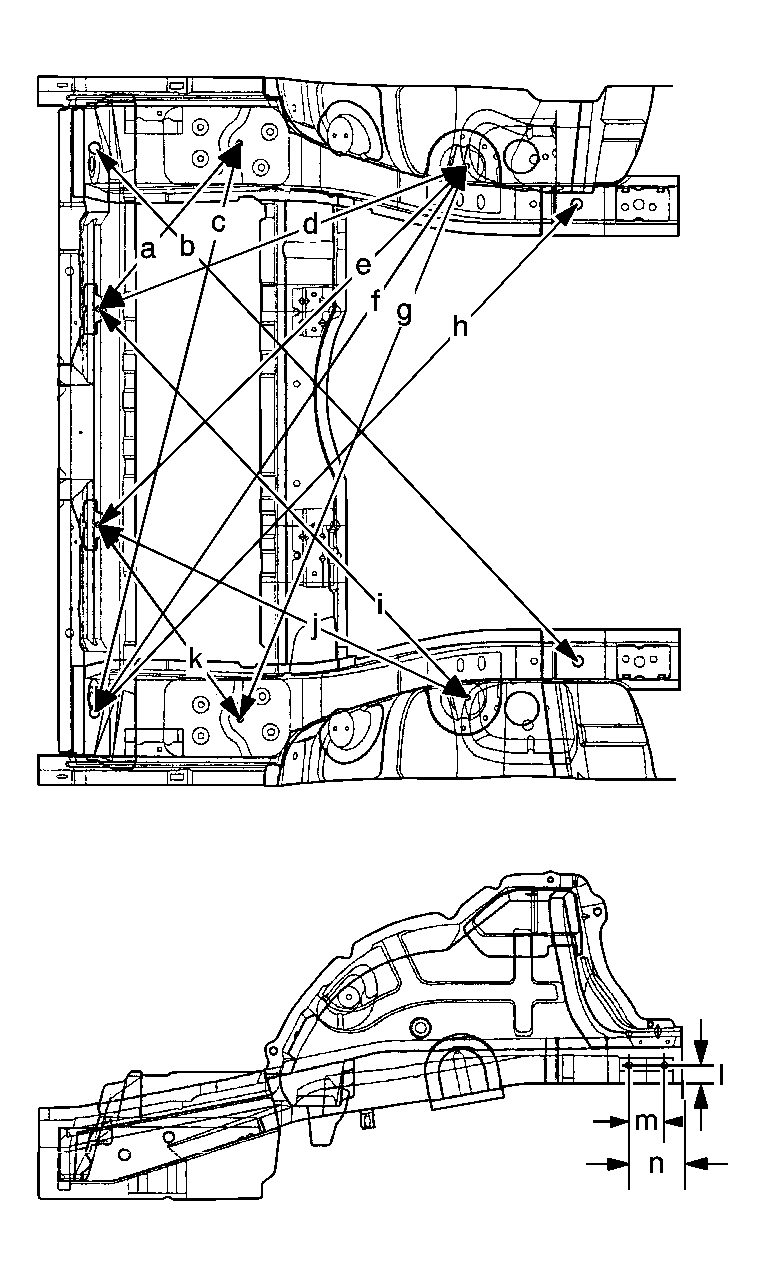

Dimensions - Frame
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 1,447 | 56.97 |
| B | 419.6 | 16.50 |
| C | 1,172.6 | 46.14 |
| D | 743 | 29.25 |
| E | 991.4 | 39.02 |
| F | 1,303 | 51.30 |
| G | 1,184 | 46.61 |
| H | 1,455 | 57.28 |
| I | 1,036.1 | 40.79 |
| J | 768.4 | 30.24 |
| K | 468.7 | 18.43 |
| L | 35 | 1.38 |
| M | 66.6 | 2.60 |
| N | 100 | 3.94 |
