2005 Chevrolet Aveo LS, 4D Sedan, StandardFACTORY OEM SERVICE PROCEDURE
Notch Back

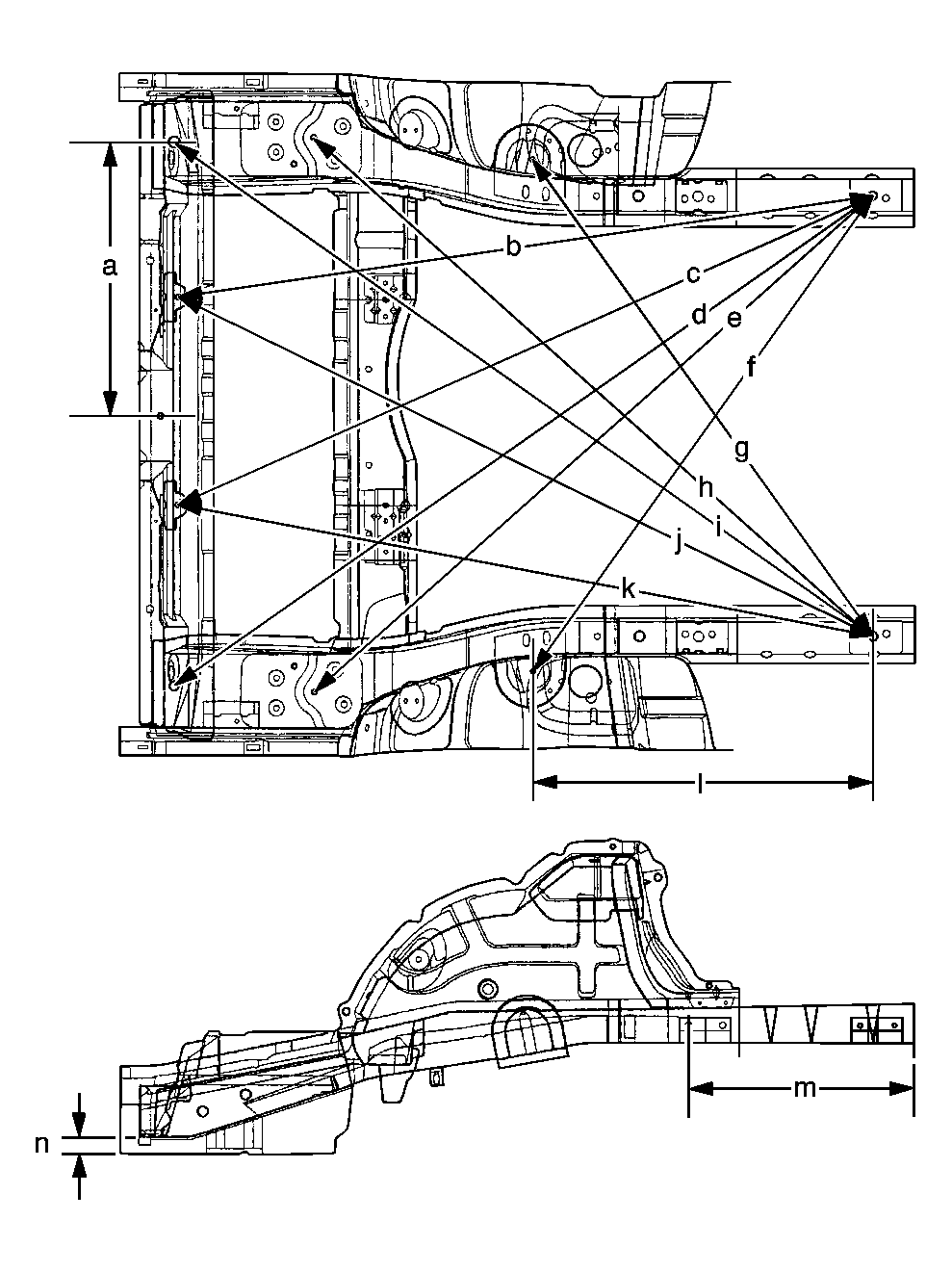

Dimensions - Frame
| Points | Dimensions (mm) | Dimensions (in) |
|---|---|---|
|
IMPORTANT:
Reference dimensions show the distance between the center of positioning holes shown in illustrations.
|
||
| A | 564 | 22.02 |
| B | 1,361 | 53.58 |
| C | 1,487 | 58.54 |
| D | 1,699 | 66.89 |
| E | 1,491 | 58.71 |
| F | 1,182 | 46.54 |
| G | 1,191 | 46.89 |
| H | 1,498 | 58.98 |
| I | 1,706 | 67.17 |
| J | 1,519 | 59.80 |
| K | 1,373 | 54.01 |
| L | 657 | 23.9 |
| M | 440 | 17.3 |
| N | 34 | 1.3 |
