2005 Chevrolet Aveo L4-1.6L VIN 6FACTORY OEM SERVICE PROCEDURE
Sealing and Caulking Specifications
Sealing and Caulking Specifications
Important: Apply putty in areas indicated before painting.

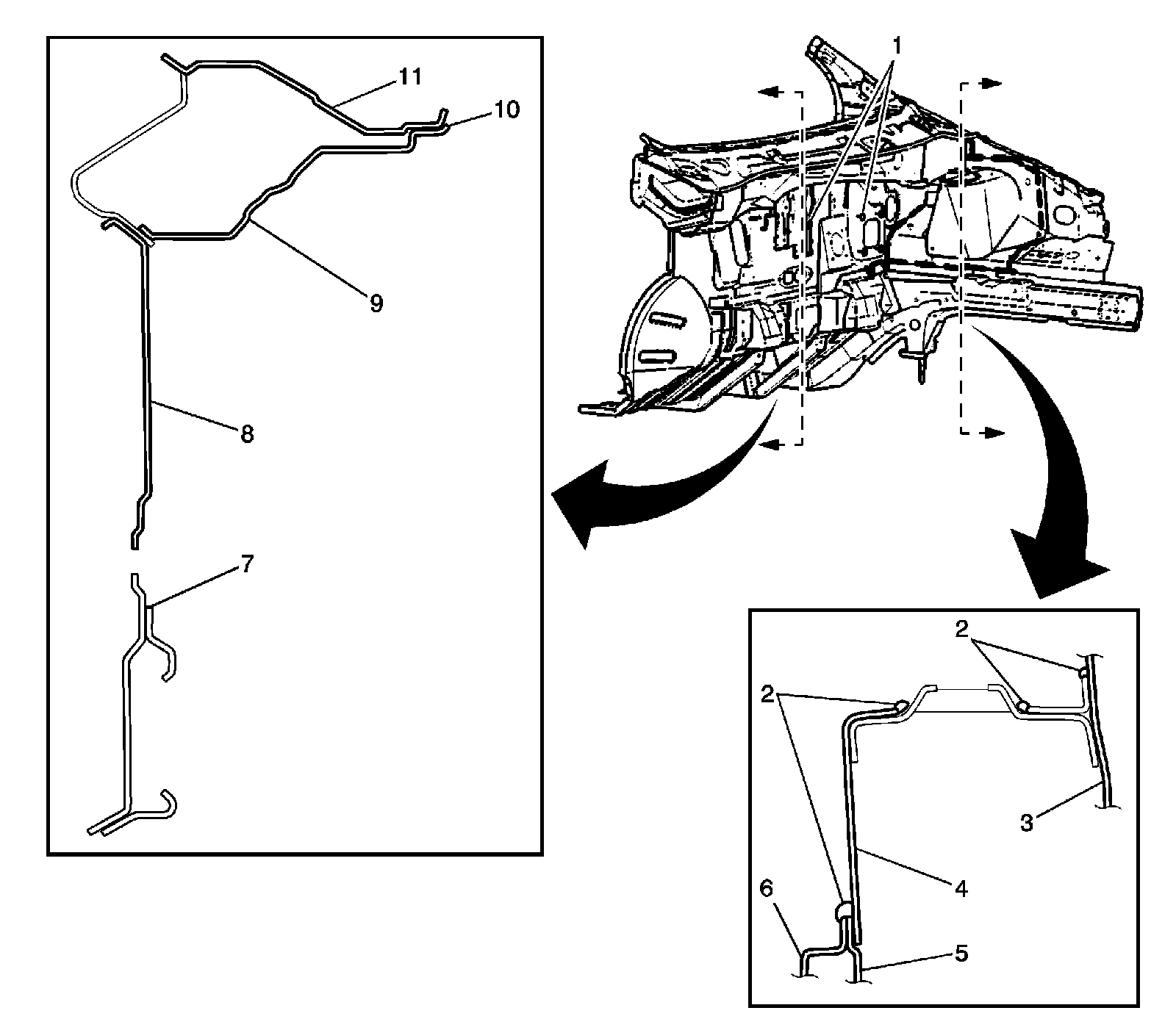

Engine Room - 1 of 2
1 - Spot Welding
2 - Body Sealer
3 - Apron Panel Outer
4 - Apron Panel
5 - Front Longitudinal Outer
6 - Front Longitudinal Inner
7 - Spot Weld Sealer
8 - Dash Panel
9 - Air Inlet Panel Lower
10 - Compound Sealing
11 - Air Inlet Panel Upper
Important: Apply putty in areas indicated before painting.

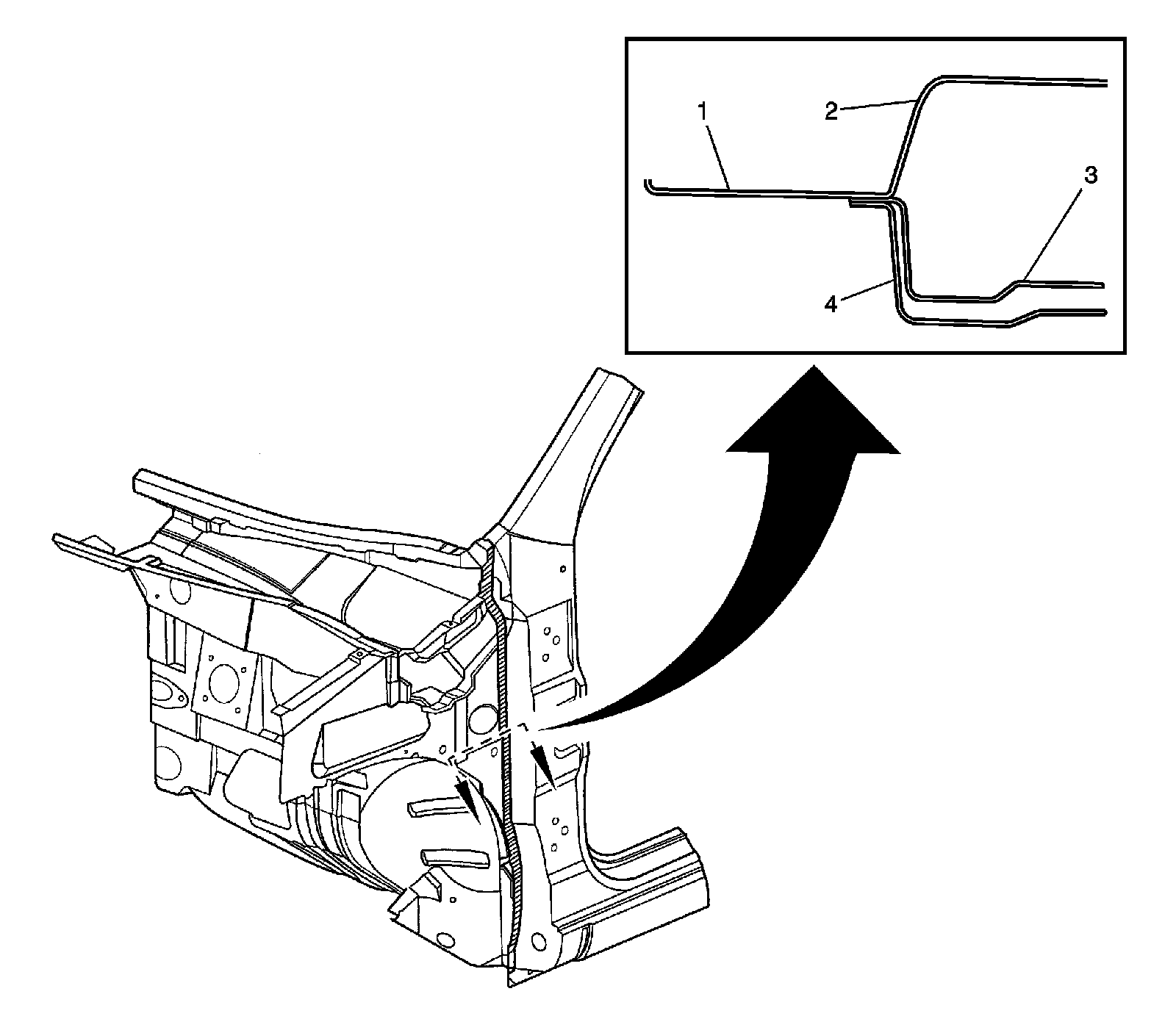

Engine Room - 2 of 2
1 - Spot Welding
2 - Dash Side Panel
3 - Front Lower Pillar Reinforcement
4 - Side Outer Panel
Important: Apply putty in areas indicated before painting.

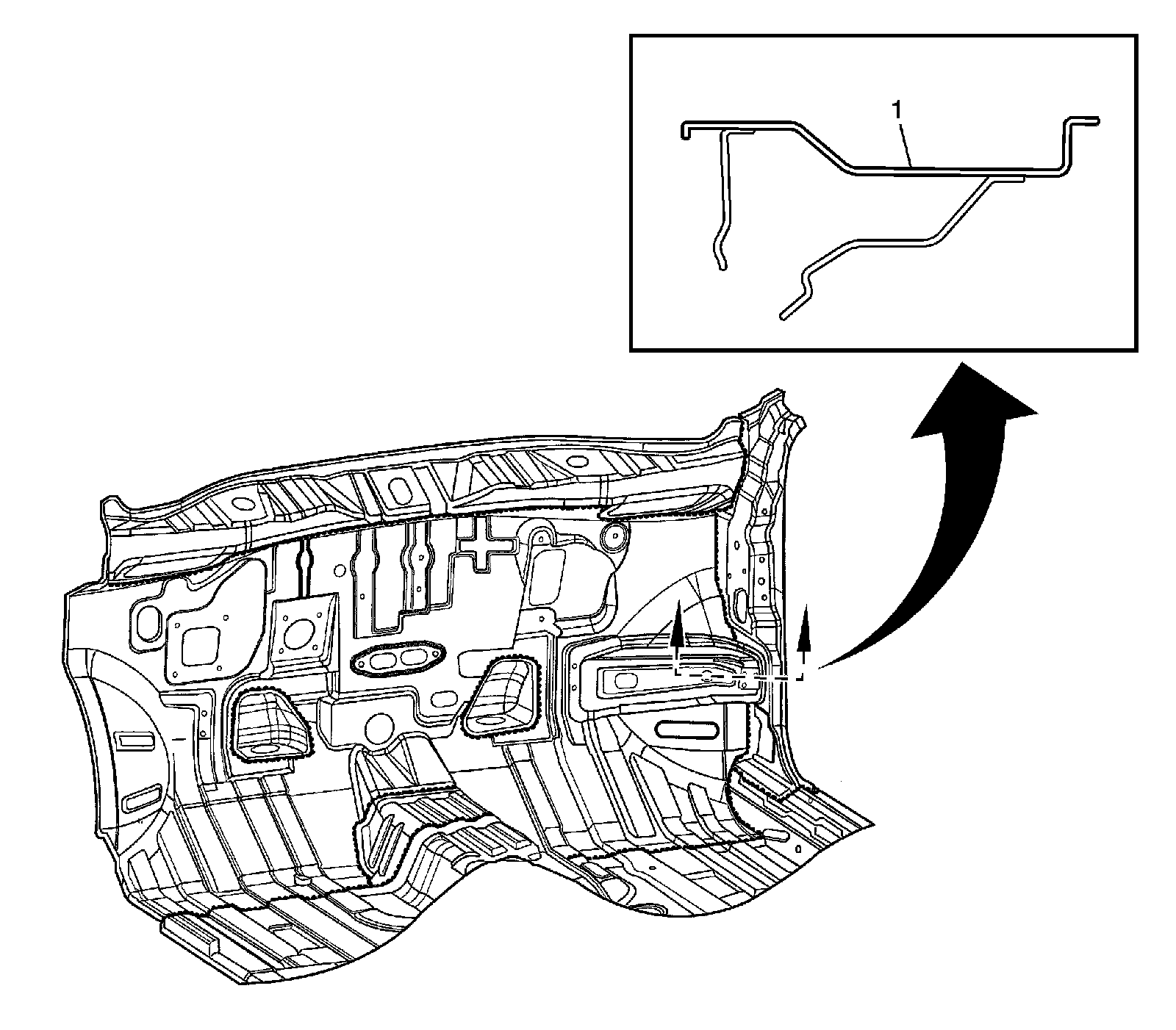

Dash
1 - Spot Tape Seal
Important: Apply putty in areas indicated before painting.

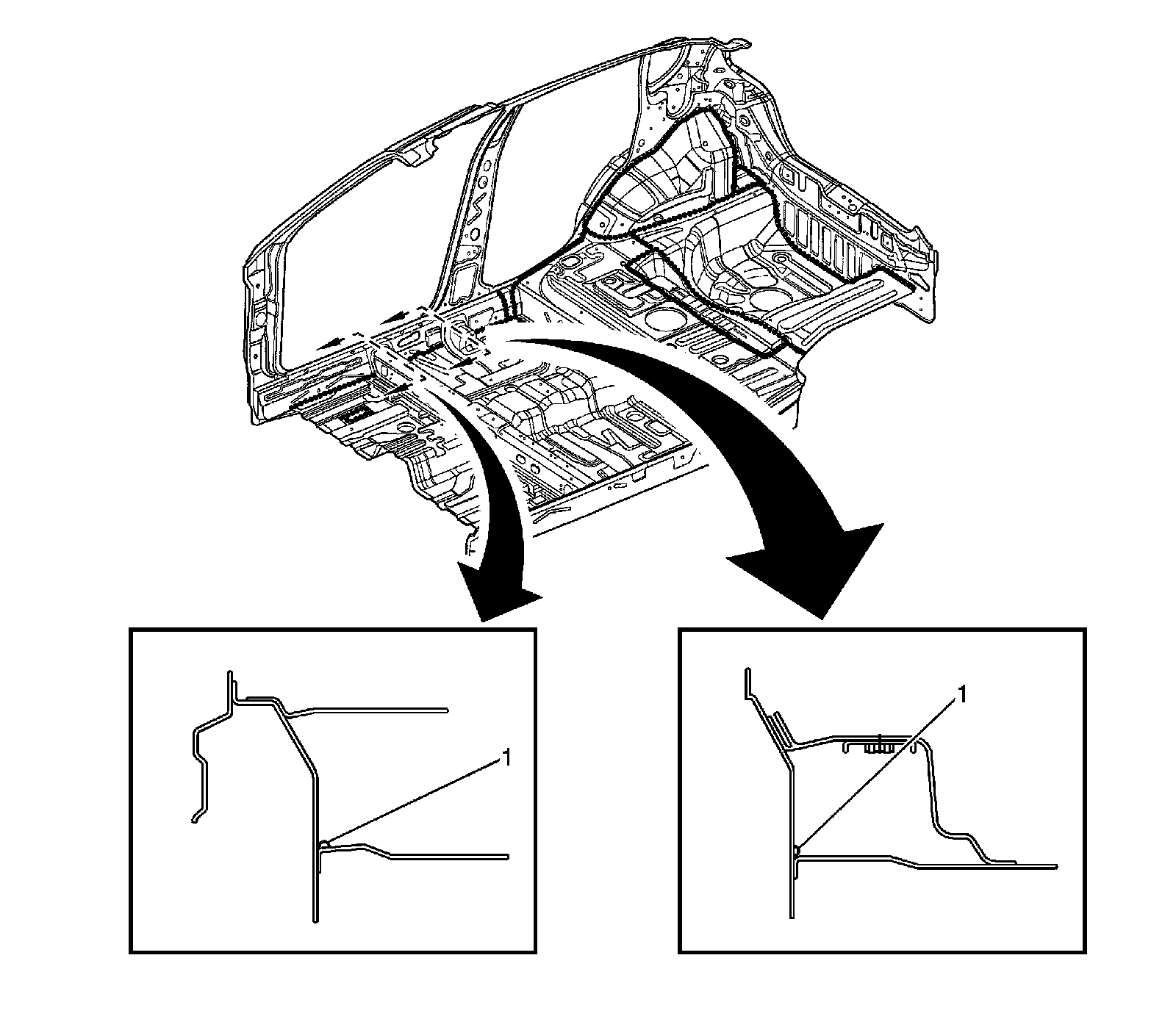

Floor and Rear Compartment
1 - Spot Tape Seal

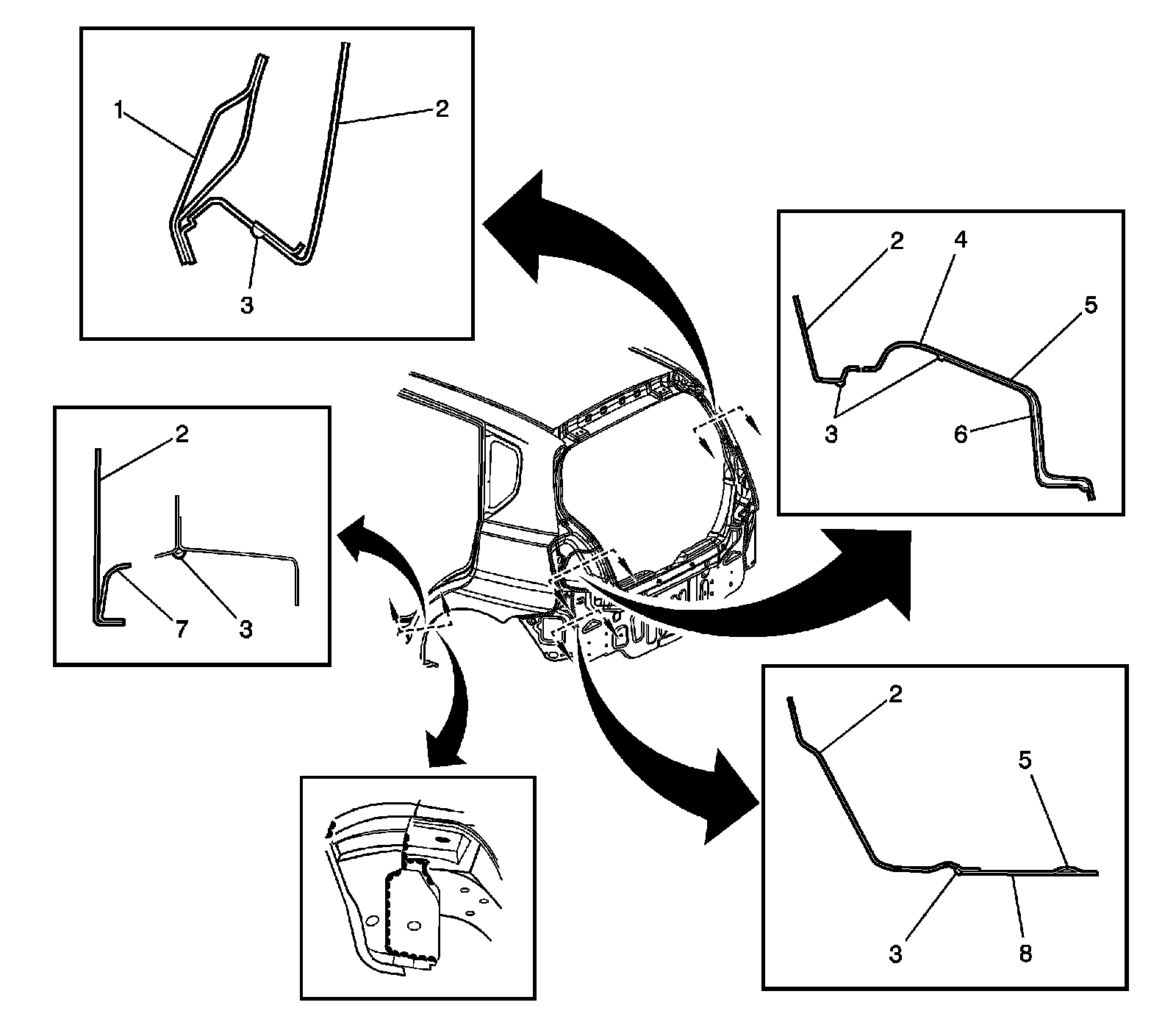

Rear Lamp and Rear Compartment
1 - Side Inner Panel
2 - Side Outer Panel
3 - Body Sealer
4 - Tail Lamp Housing
5 - Back Lower Side Reinforcement
6 - Lamp Housing Lower
7 - Side Inner Panel
8 - Back Lower Panel
Important: Keep roof mounting clips free of sealant on both side of roof.
Wipe off excess sealant from screen flange.

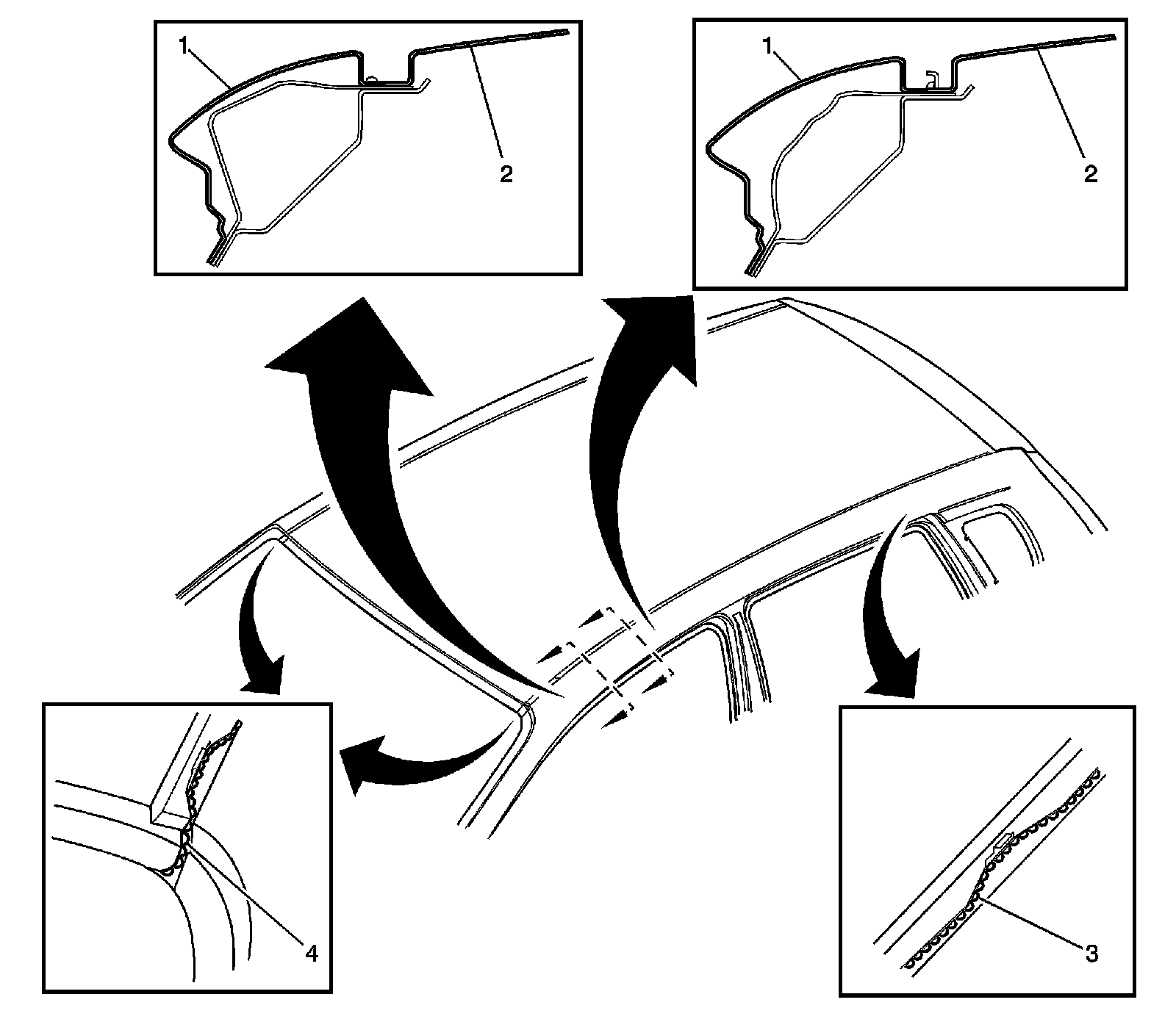

Roof - 1 of 2
1 - Side Outer Panel
2 - Roof Panel
3 - Roof Housing Clips
4 - Sealant

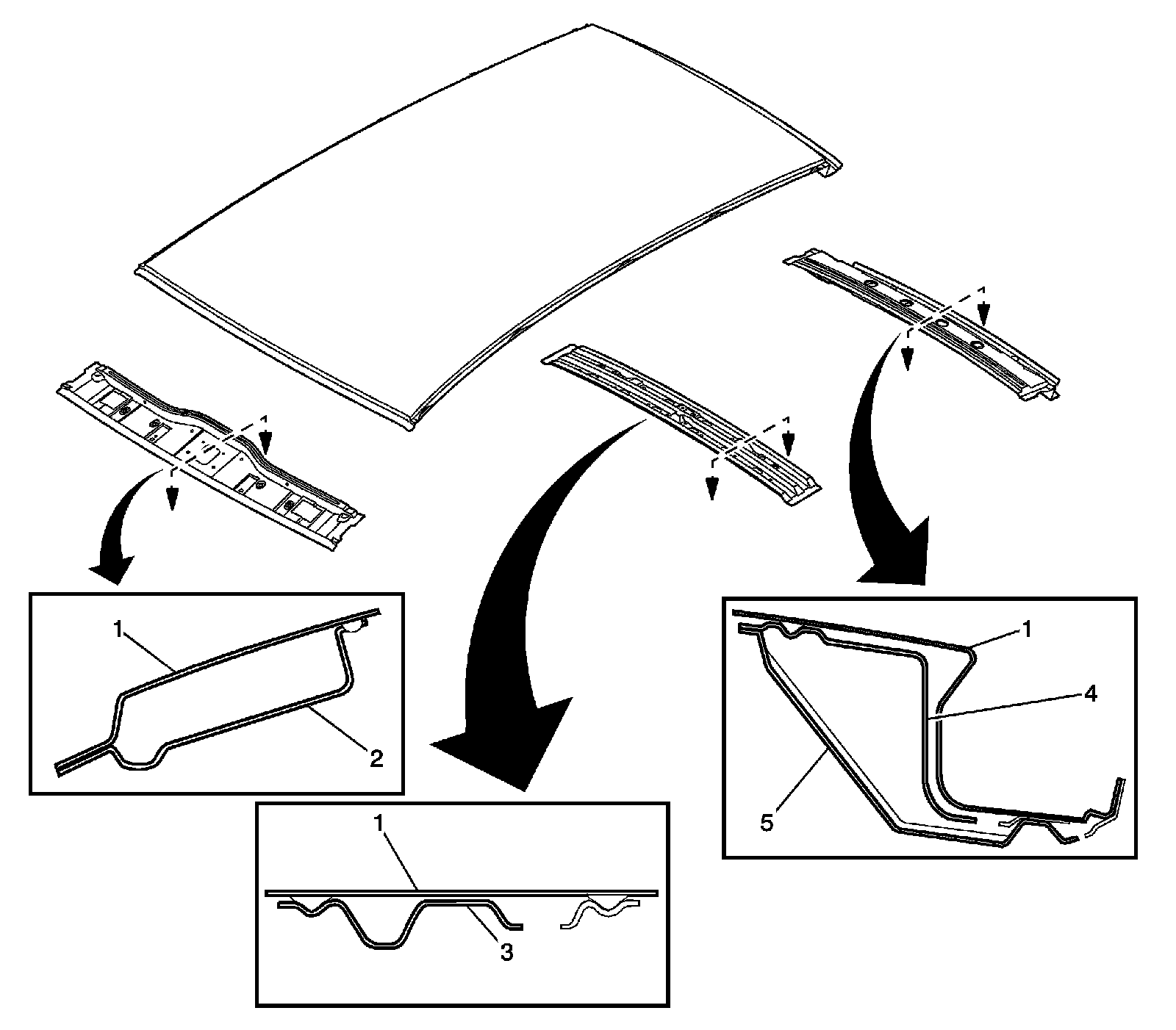

Roof - 2 of 2
1 - Roof Panel
2 - Windshield Upper Rail
3 - Roof Center Support
4 - Rear Upper Roof Frame
5 - Rear Lower Roof Frame

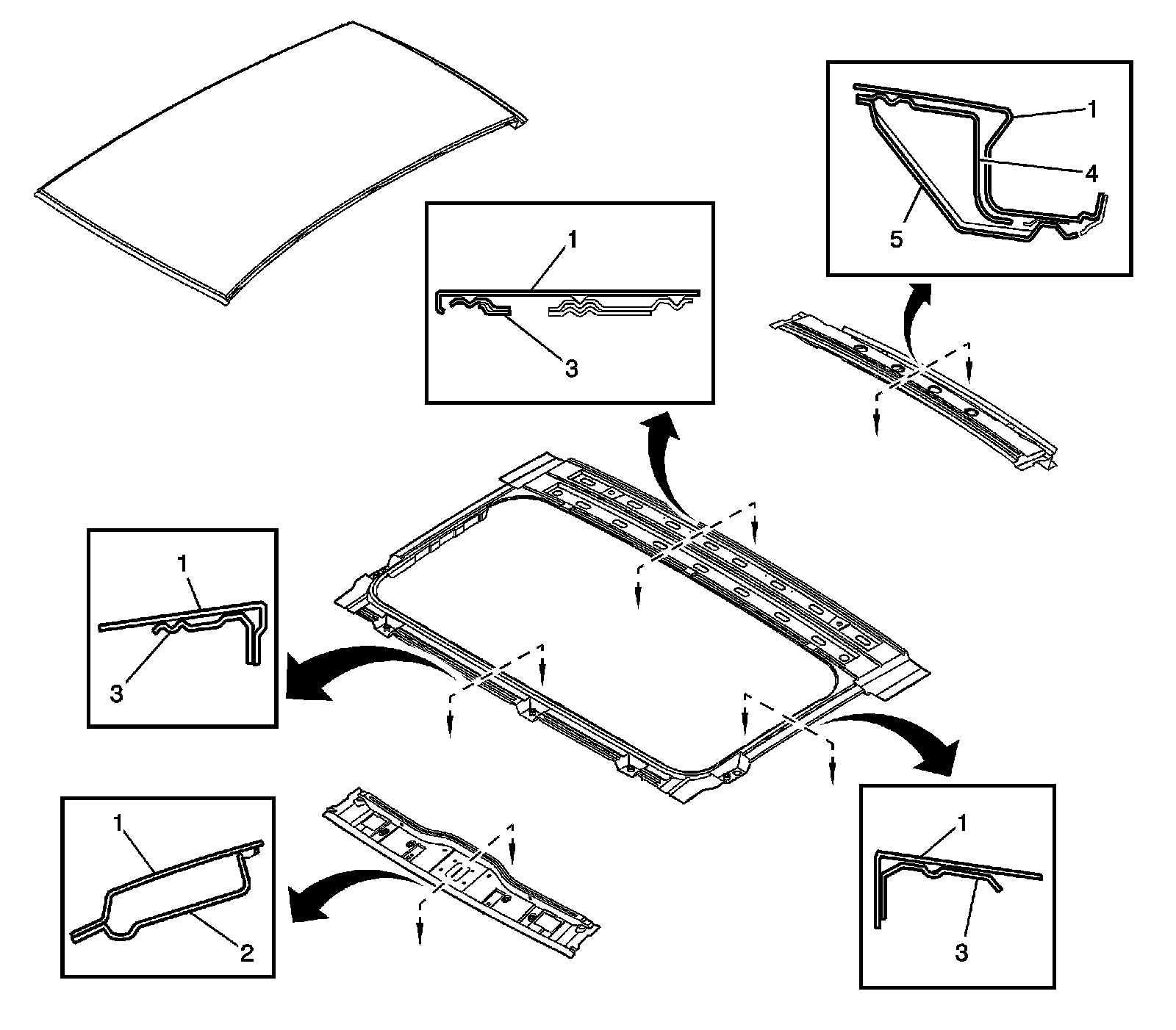

Sunroof
1 - Roof Panel
2 - Windshield Upper Rail
3 - Sunroof Frame
4 - Rear Upper Roof Frame
5 - Rear Lower Roof Frame
Important: Paint drain holes in order to be free of sealer.

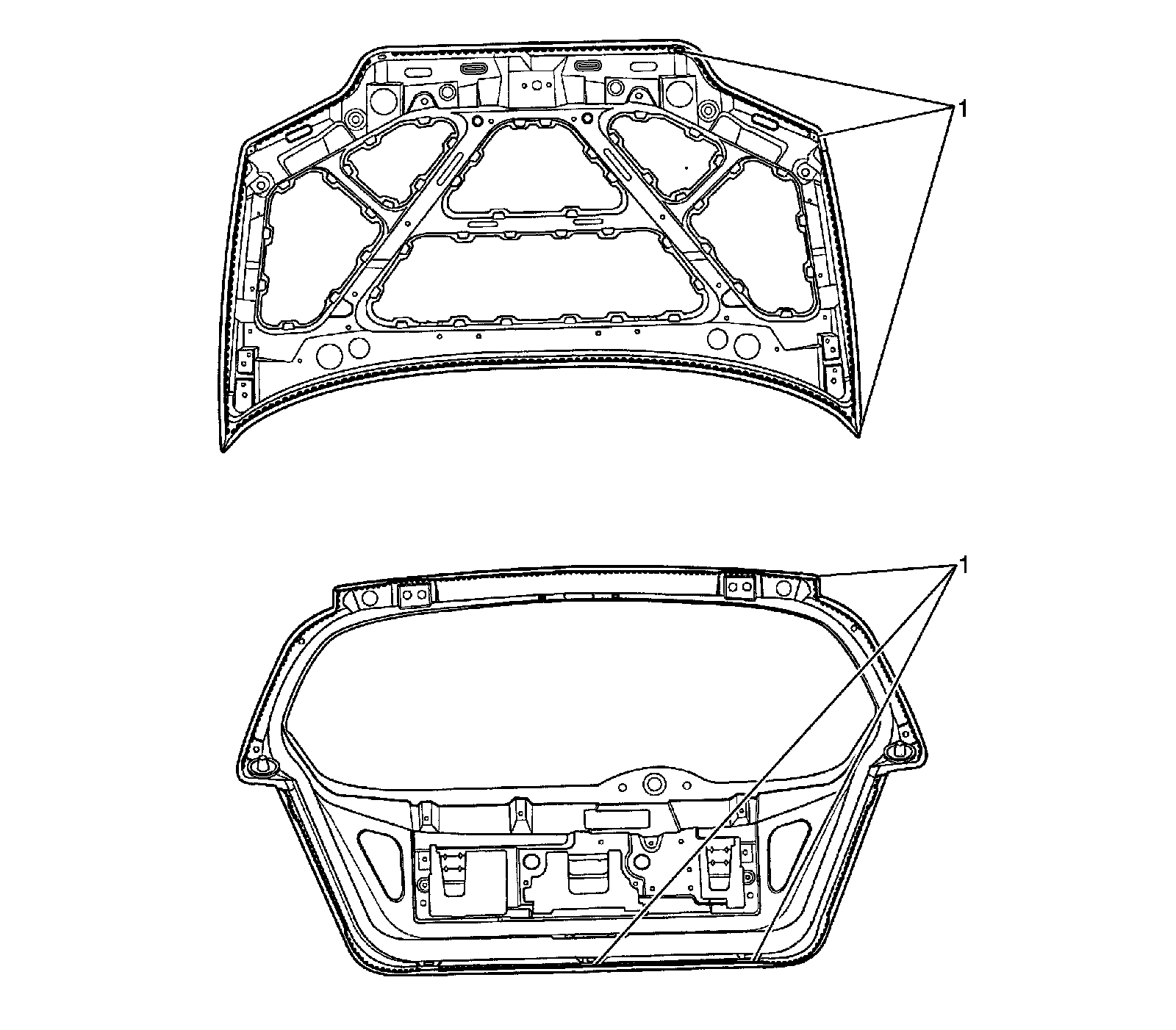

Hood and Tailgate
1 - Drain Holes
Important: Ensure water drain holes are free of sealer in the 5 locations on both doors.

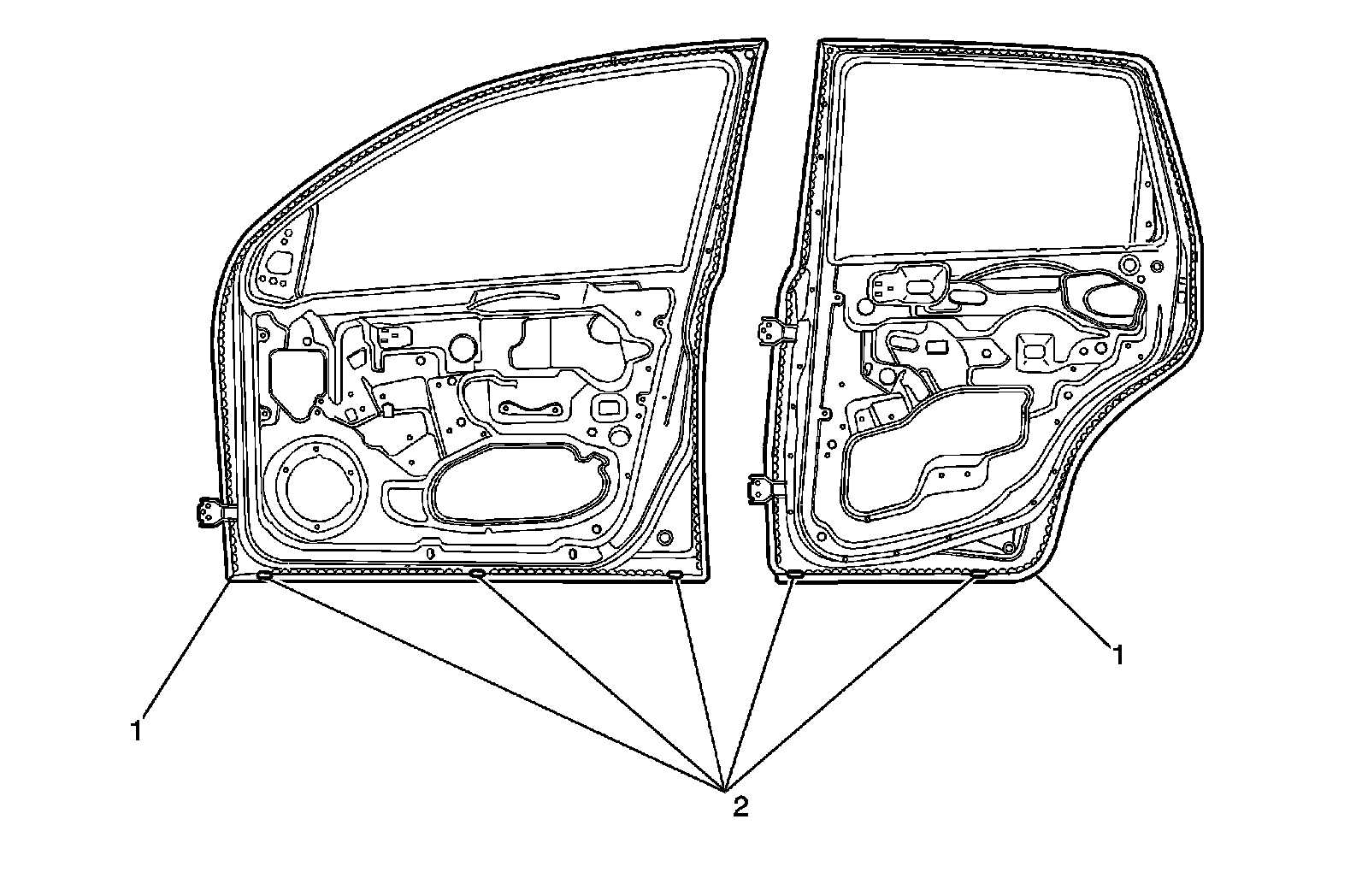

Front and Rear Door
1 - Door Corners Wiped with Sealer
2 - Water Drain Holes
