Installation Procedure

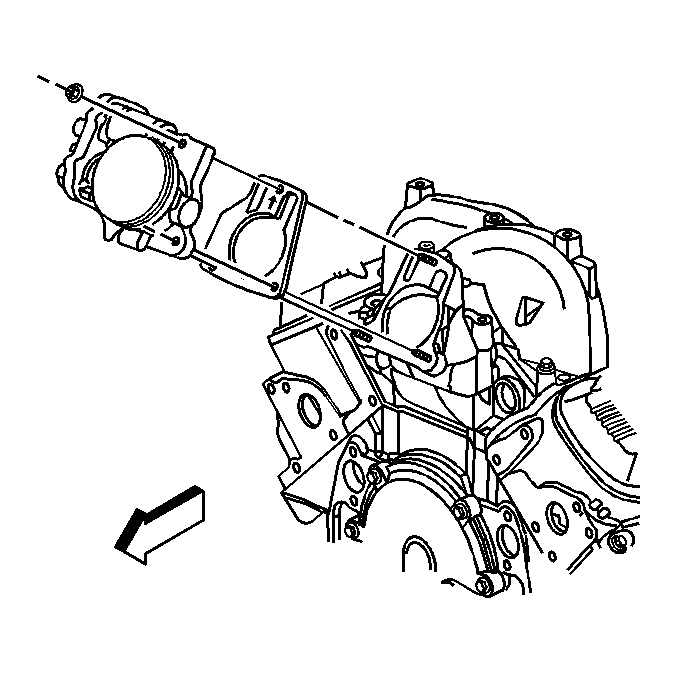

- Install a NEW throttle body gasket.
- Install the throttle body.NOTE: Refer to Fastener Notice in Cautions and Notices.
- Install the throttle body nuts.
Tighten: Tighten the nuts to 10 N.m (89 lb in).

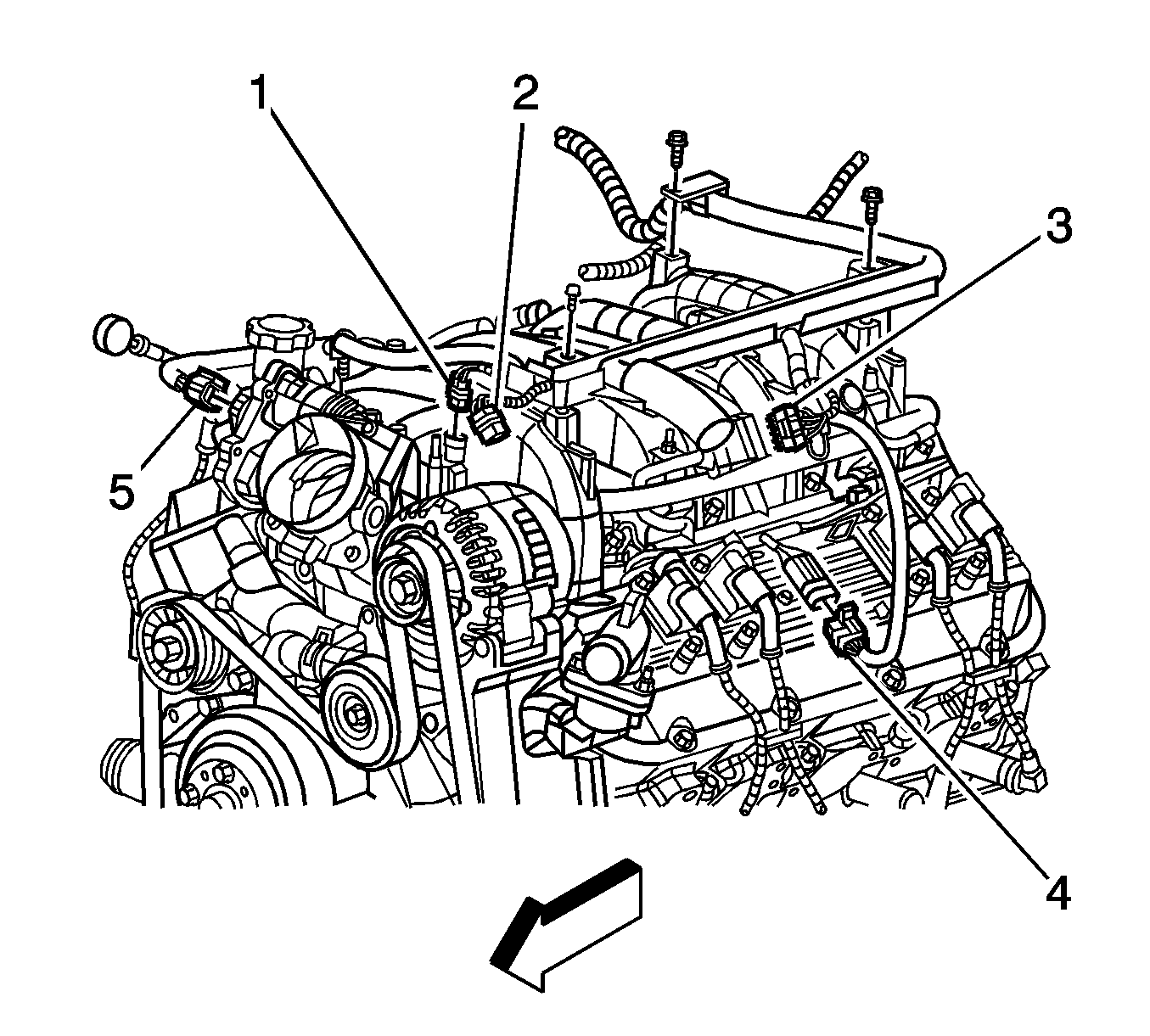

- Connect the throttle actuator motor electrical connector (5).
- Install the intake air resonator. Refer to Intake Air Resonator Replacement .
- Connect a scan tool in order to test for proper throttle-opening and throttle-closing range.
- Operate the accelerator pedal and monitor the throttle angles. The accelerator pedal should operate freely, without binding, between a closed throttle, and a wide open throttle (WOT).
- Verify that the vehicle meets the following conditions:
- The vehicle is not in a reduced engine power mode.
- The ignition is ON.
- The ignition is OFF.
