2005 Chevrolet Astro Van Cargo, RWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

Install the fuel sender assembly (4). Refer to Fuel Sender Assembly Replacement .

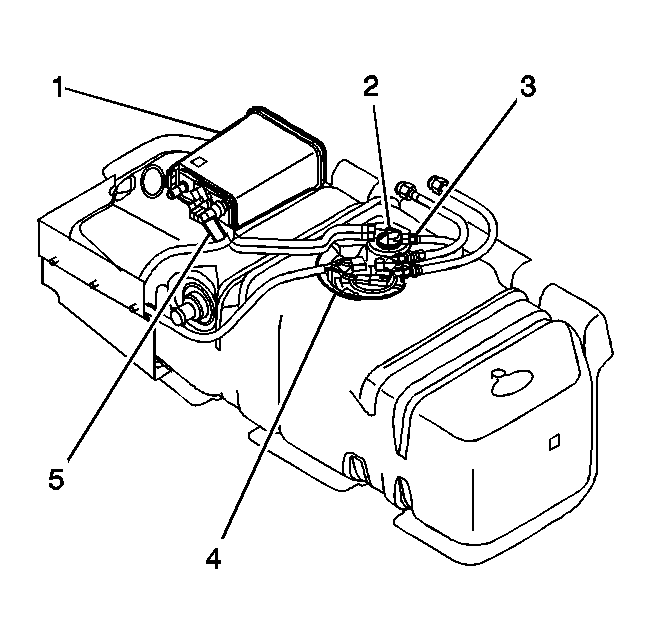

Fig 1: View Of Fuel Tank Components

Courtesy of GENERAL MOTORS CORP.

Install the EVAP canister (1). Refer to Evaporative Emission (EVAP) Canister Replacement .

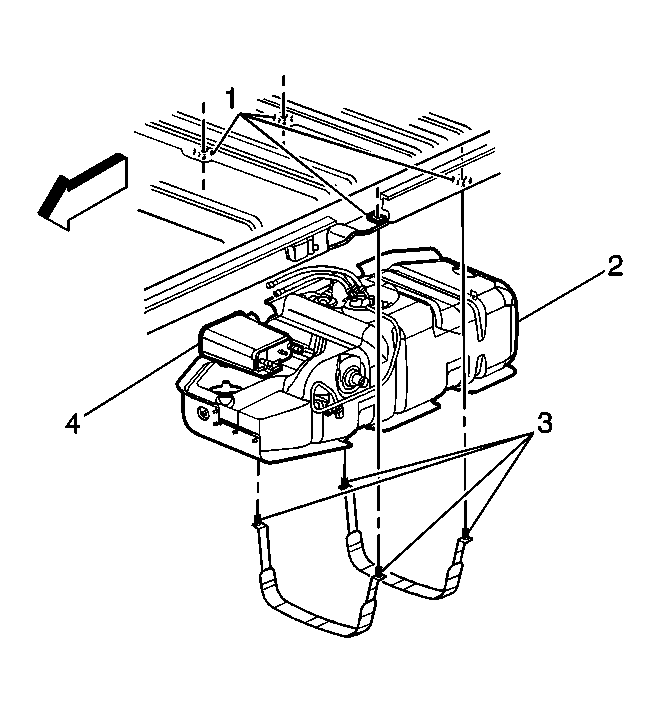

Fig 2: Identifying Fuel Tank Straps & Retaining Bolts

Courtesy of GENERAL MOTORS CORP.
