2005 Chevrolet Astro Van Cargo, RWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

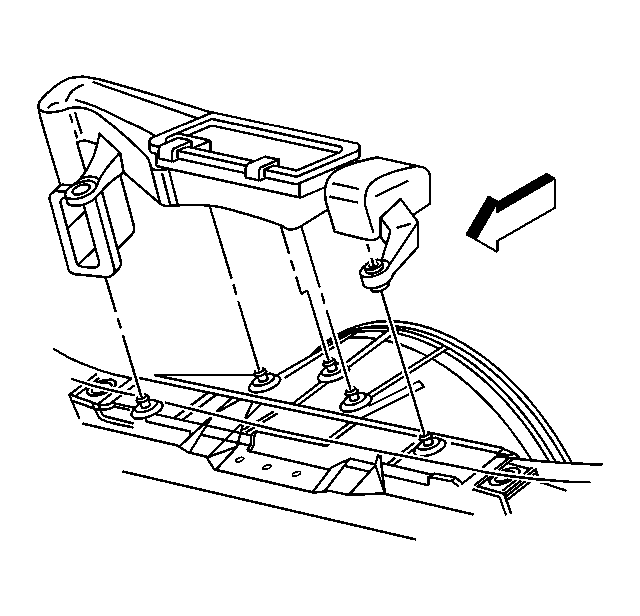

Fig 1: View Of Air Cleaner Tub

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner tub by pressing downward on the tub until the grommets are seated on the mounting studs.
Insert the air cleaner element into the air cleaner tub.

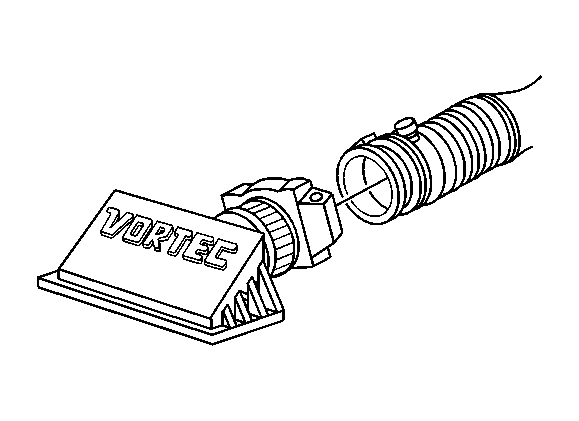

Fig 2: Identifying Air Cleaner Outlet Duct At MAF Sensor

Courtesy of GENERAL MOTORS CORP.
