2005 Chevrolet Astro Van Cargo, RWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure

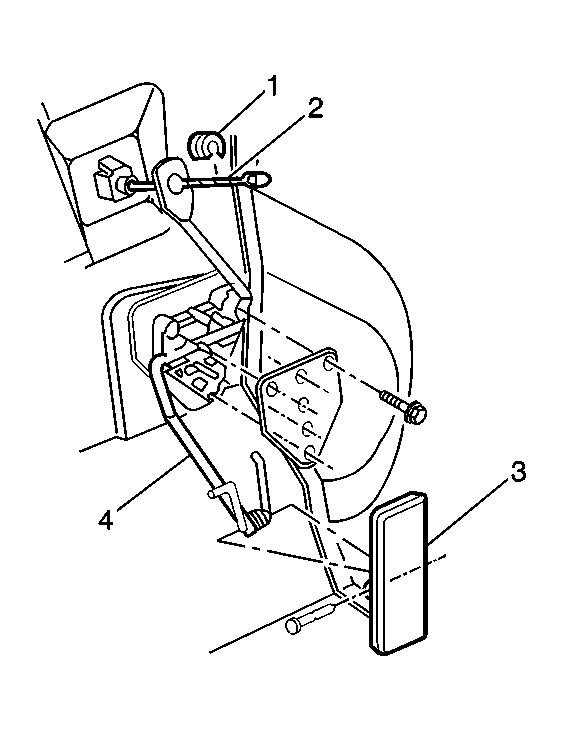

- Lift upward on the accelerator pedal (3) to relieve tension on the cable (2).
- Remove the retainer (1) from the pedal lever (4) hole.
- Remove cable (2) from the slot in the pedal lever (4).
- Remove the accelerator pedal mounting fasteners.
- Remove the accelerator pedal assembly.
