2004 Chevrolet Venture Base, Van Cargo ExtendedFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Turn OFF the ignition.
- Disconnect the intake air temperature (IAT) sensor.

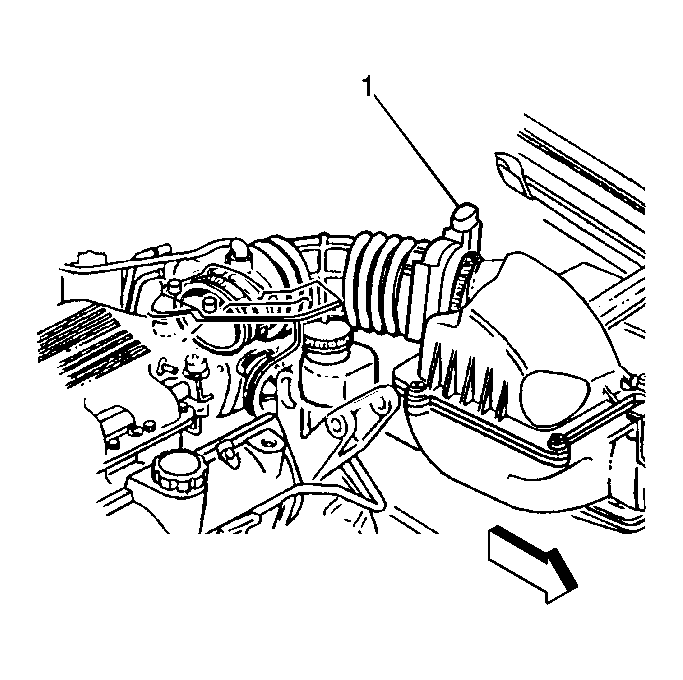

- Disconnect the mass air flow (MAF) sensor (1).
- Remove the air inlet duct from the MAF sensor and the throttle body.
- Remove the MAF sensor from the air filter housing.
