2004 Chevrolet Venture Base, Van Cargo ExtendedFACTORY OEM SERVICE PROCEDURE
Assembly Procedure

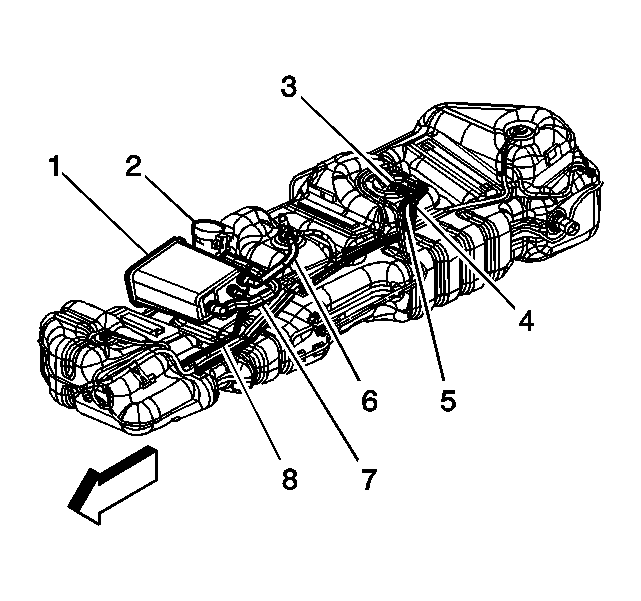

- Install the EVAP purge pipe (8) into the fuel tank clip.
- Install the fuel feed (4) and fuel return (5) pipes into the fuel tank pipe clips.
- Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
- Install the EVAP canister vent valve (2). Refer to Evaporative Emission (EVAP) Canister Vent Solenoid Valve Replacement (Short Wheel Base) or Evaporative Emission (EVAP) Canister Vent Solenoid Valve Replacement (Long Wheel Base) .
- Install the EVAP canister. Refer to Evaporative Emission (EVAP) Canister Replacement (Short Wheel Base) or Evaporative Emission (EVAP) Canister Replacement (Long Wheel Base) .
