2004 Chevrolet Tracker RWDFACTORY OEM SERVICE PROCEDURE
Automatic Transmission Shift Lock Control Connector End Views
Shift Lock Diode Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLK | Ground G201 |
| 2 | BLU/GRN | Shift Lock Solenoid Supply Voltage |

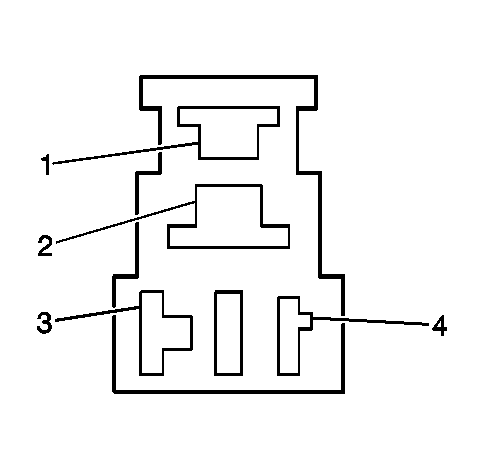

Shift Lock Relay Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | BLU/GRN | Shift Lock Solenoid Feed |
| 2 | ORN/GRN | Shift Lock Relay Supply Voltage-Switch Side |
| 3 | GRN/WHT | Shift Lock Relay Supply Voltage-Coil Side |
| 4 | BLK | Shift Lock Relay Ground G105 |

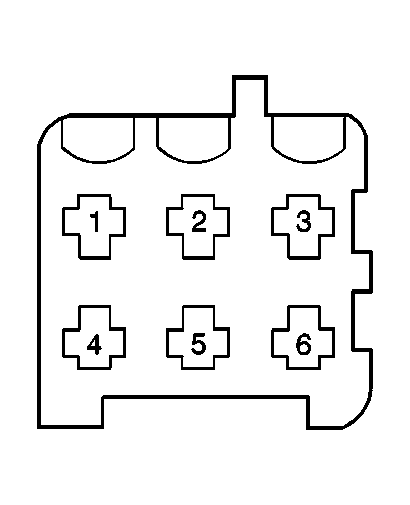

Shift Lock Solenoid Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1-2 | - | Not Used |
| 3 | BLU/GRN | Shift Lock Solenoid Supply Voltage |
| 4-5 | - | Not Used |
| 6 | BLK | Shift Lock Solenoid Ground G201 |
Transmission Range Switch Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | - | Not Used |
| 2 | BLK/RED | Ignition Switch Start Signal |
| 3 | BLK/YEL | Starter Motor Signal |
| 4 | GRN/ORN | 2nd Gear Position Signal |
| 5 | GRN/BLU | Low Position Signal |
| 6 | YEL | Transmission Range Switch Supply Voltage |
| 7 | ORN/GRN | Park Position Signal |
| 8 | RED | Reverse Position Signal |
| 9 | YEL/GRN | Drive Position Signal |
| 10 | ORN/BLU | Neutral Position Signal |
