Installation Procedure

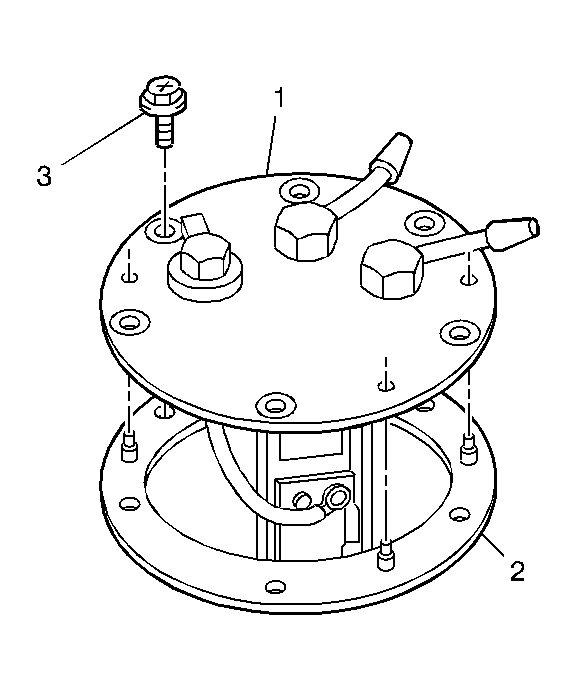

- Install a new fuel sender assembly gasket (2).
- Install the fuel sender assembly (1) into the fuel tank.
- Secure the fuel sender assembly (1) with the 6 bolts (3).
Tighten: Tighten the bolts to 5 N.m (60 lb in).

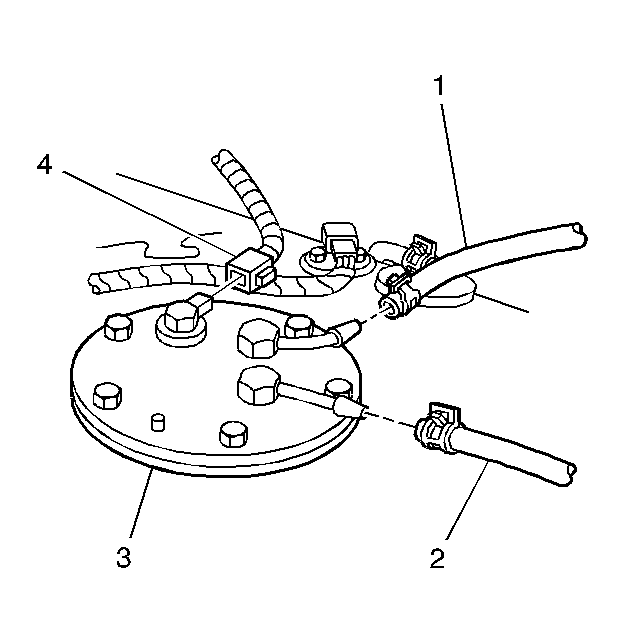

- Connect the return fuel line (1) to the fuel sender assembly.
- Connect the fuel supply line (2) to the fuel sender assembly.
- Connect the electrical connector (4) to the fuel sender assembly.
- Install the fuel tank. Refer to Fuel Tank Replacement .
- Inspect for any fuel leaks. Repair as necessary.
