2004 Chevrolet Tracker RWDFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Relieve the fuel pressure. Refer to Fuel Pressure Relief Procedure .
Disconnect the vacuum hose (1) from the fuel pressure regulator.
Remove the two bolts (2) from the fuel pressure regulator.

Fig 1: View Of Vacuum Hose & Bolts

GM675934

Courtesy of GENERAL MOTORS CORP.

Remove the fuel pressure regulator (1) from the fuel rail (2).

Fig 2: View Of Fuel Pressure Regulator, Fuel Rail & New O-Ring

GM675923

Courtesy of GENERAL MOTORS CORP.

Disconnect the fuel pressure regulator (2) from the fuel return hose (1).

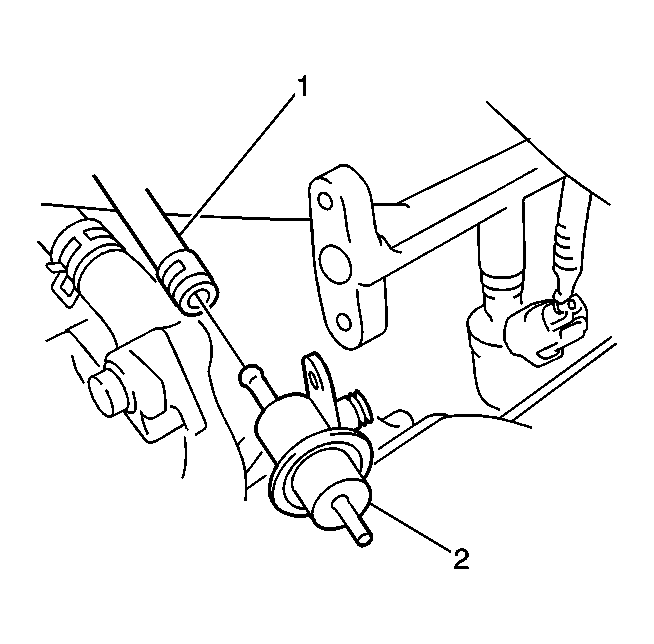

Fig 3: View Of Fuel Pressure Regulator & Return Hose

GM675919

Courtesy of GENERAL MOTORS CORP.
