2004 Chevrolet Tracker RWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

  1. Install the EGR valve with a new gasket to the intake collector.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Secure the EGR valve to the intake collector with the two retaining bolts.

    Tighten:  Tighten the bolts to 23 N.m (17 lb ft).

  3. Install the intake collector and the throttle body assembly to the intake manifold. Refer to Throttle Body Assembly Replacement .
  4. Install the exhaust gas recirculation (EGR) pipe (4).
  5. Connect the following hoses:
    • The PCV hose to the cylinder head cover (9)
    • The breather hose to the throttle body (6)
    • The EVAP canister purge valve hose (1)
    • The water hose (8)
    • The heater hoses (3, 5)
  6. Connect the following electrical connectors:
    • The manifold absolute pressure (MAP) sensor
    • The EVAP canister purge valve (1)
    • The exhaust gas recirculation (EGR) valve (2)
    7. Fig 1: Identifying Engine Components

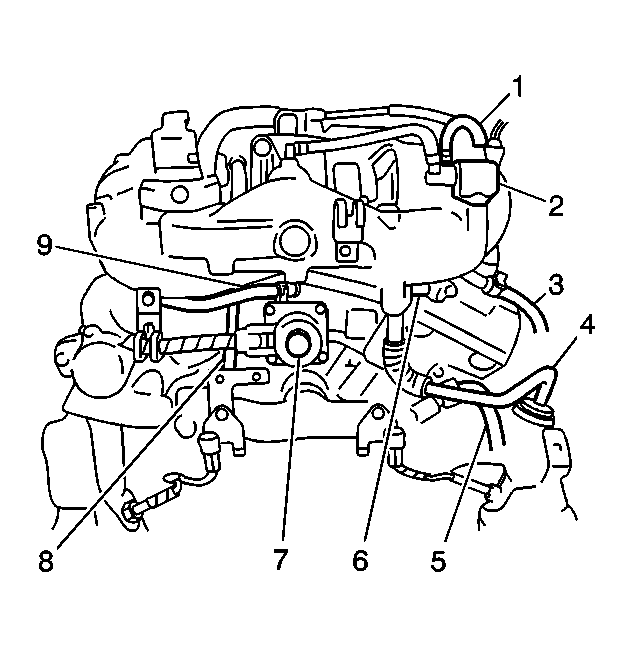

    GM648002Courtesy of GENERAL MOTORS CORP.
  7. Install the clamp bracket (4) to intake collector.
  8. Install the ground terminal (5) to intake collector.
  9. Connect the following electrical connectors:
    • The throttle position (TP) sensor (2)
    • The mass air flow (MAF) sensor (1)
    • The idle air control (IAC) valve (3)
    10. Fig 2: Identifying TPS, MAF & IAC Connectors

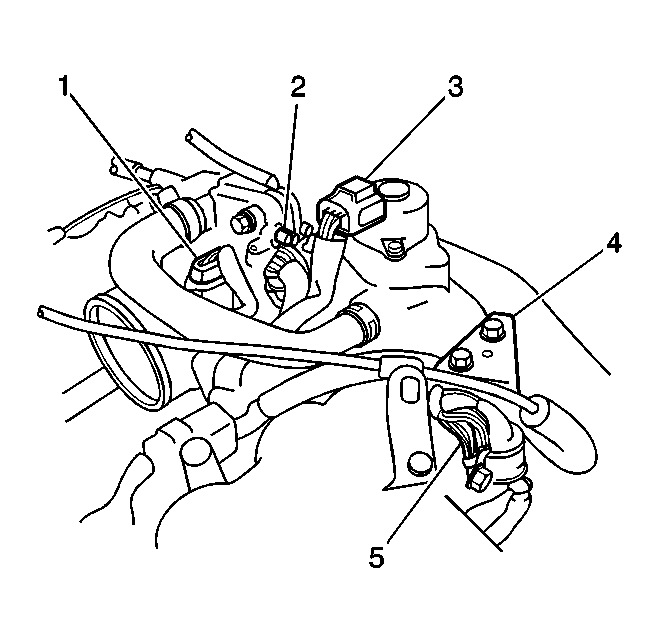

    GM648017Courtesy of GENERAL MOTORS CORP.
  10. Install the engine surge tank cover (1) and secure with the four fasteners.
    11. Fig 3: Identifying Top Of Engine Components
    GM648012Courtesy of GENERAL MOTORS CORP.
  11. Install the front suspension brace (1). Refer to Front Suspension Support Brace Replacement in Front Suspension.
  12. Fill the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.
  13. Connect the negative battery cable.

    Tighten:  Tighten the bolt to 8 N.m (72 lb in).

    14. Fig 4: View Of Front Suspension Support Brace
    GM674310Courtesy of GENERAL MOTORS CORP.
