2004 Chevrolet Tracker RWDFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Disconnect the electrical connector from the crankshaft position (CKP) sensor.
Remove the bolt (1) and the sensor wire harness clip from the engine.
Remove the bolt (3) securing the CKP sensor to the front engine cover.

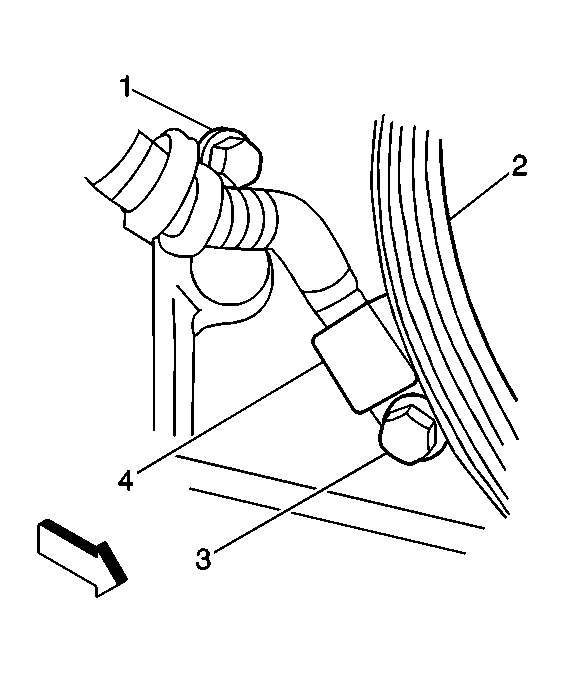

Fig 1: View Of Crankshaft Position Sensor & Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the CKP sensor (3) with wire harness from the engine.
Inspect the CKP sensor signal rotor for damaged or missing teeth through the CKP sensor opening.

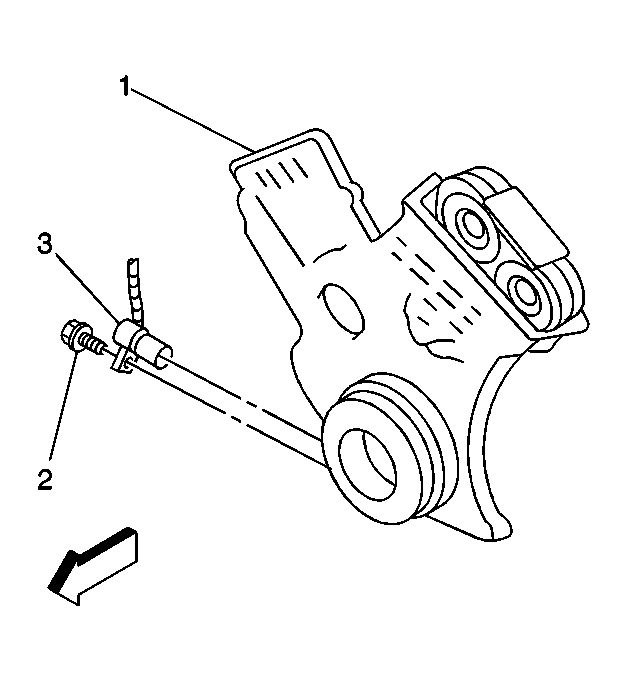

Fig 2: View Of Crankshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.
