Installation Procedure

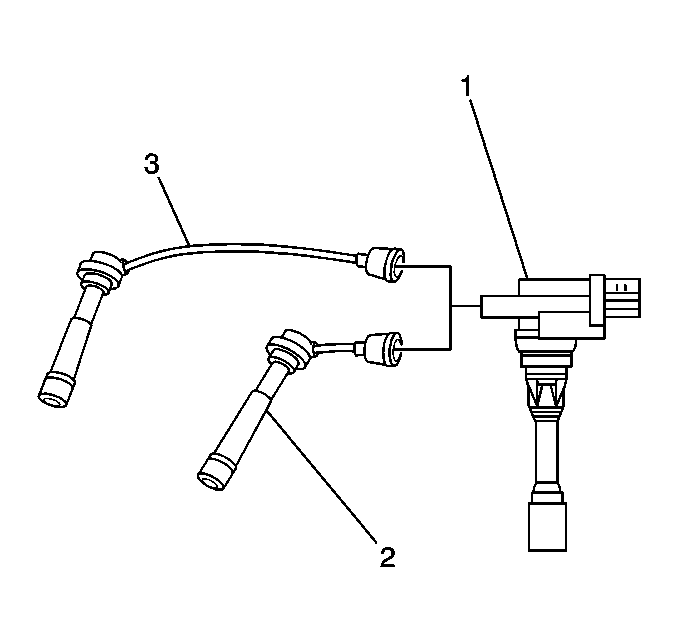

- Install the 1 cylinder spark plug wire (3) to the ignition coil (1) or the 2 cylinder spark plug wire (2) to the ignition coil (1).

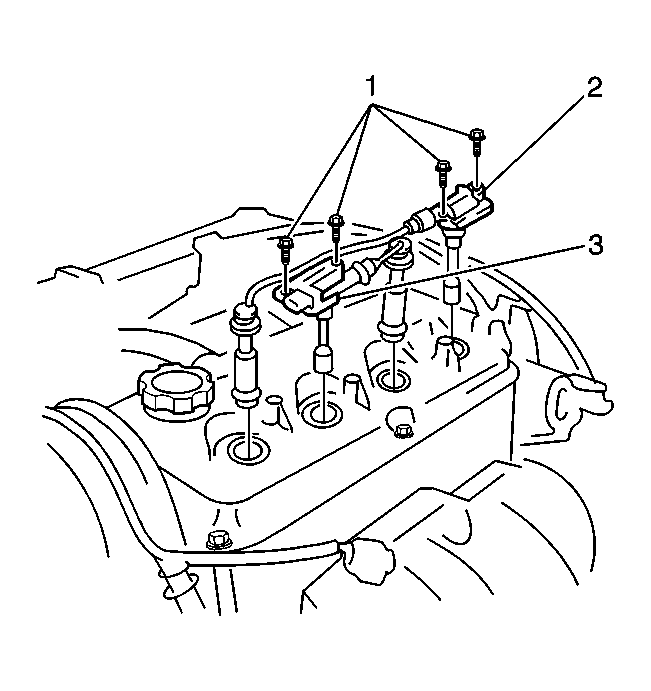

- Install the ignition coil 1 (2) or the ignition coil 2 (3) to the valve cover.
- Secure the ignition coil 1 (2) or the ignition coil 2 (3) to the valve cover with the two bolts (1).
Tighten: Tighten the ignition coil attaching bolts (1) to 10 N.m (89 lb in).
- Connect the electrical connector to the ignition coil.
- Connect the spark plug wire to the spark plug.
