Installation Procedure

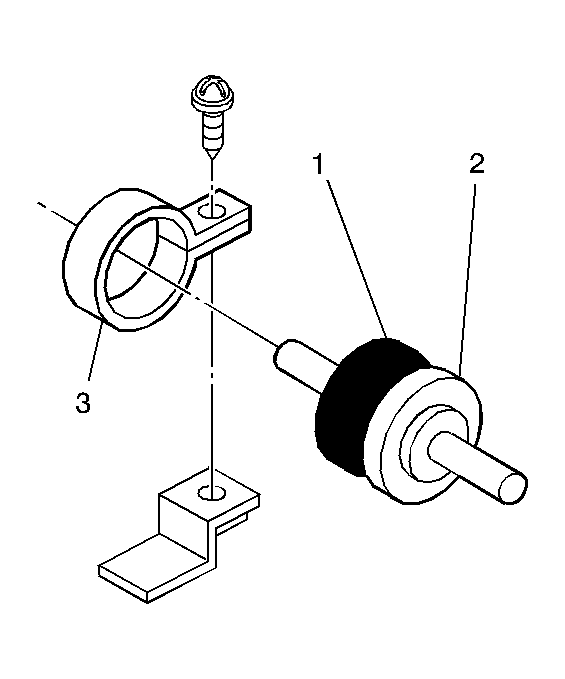

- Install the pressure control valve into the sleeve (3).
- Install the pressure control valve to the fuel tank, and secure the valve with the fastener.
Tighten: Tighten the fastener to 1.2 N.m (11 lb in).
- Connect the vapor hose from the EVAP canister to the orange side or to the green side (2) of the pressure control valve.
- Connect the vapor hose from the fuel tank to the black side (1) of the pressure control valve.
- Install the fuel tank to the vehicle. Refer to Fuel Tank Replacement .
