Installation Procedure

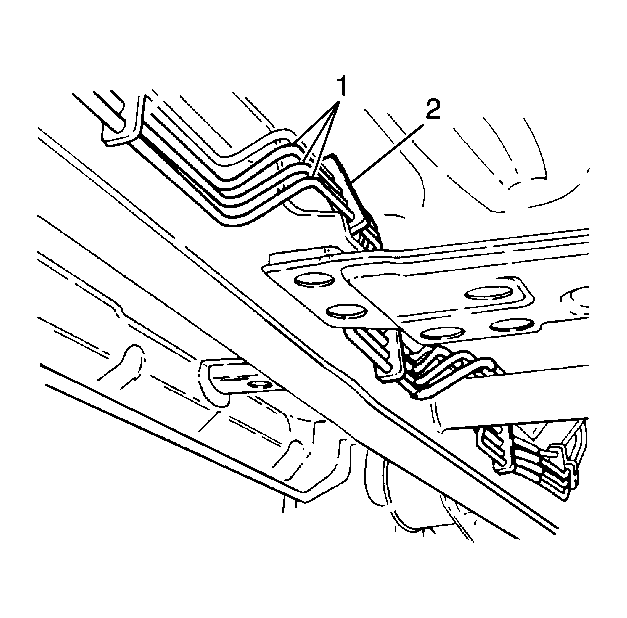

- Install the fuel pipes (1) to the frame of the vehicle chassis.
- Secure the fuel pipes (1) with the retaining clamps (2).

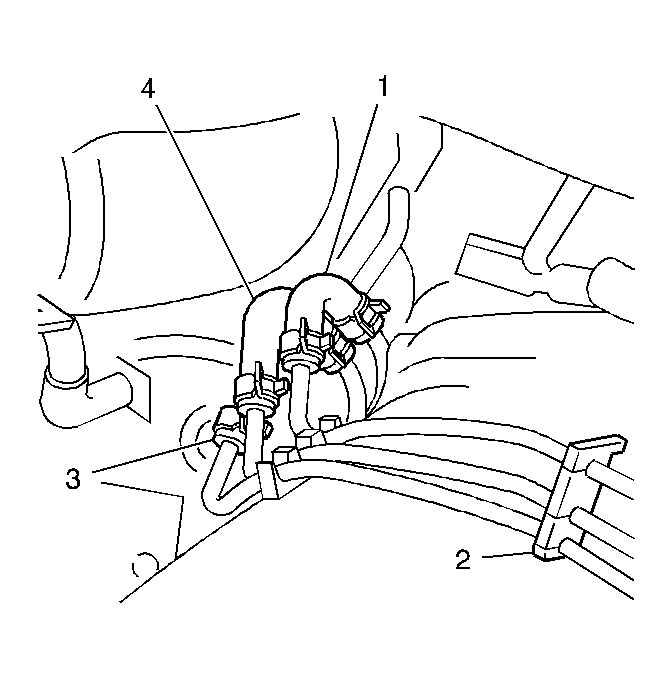

- Connect the fuel vapor hose (3) to the fuel vapor pipe in the engine compartment.
- Connect the fuel return hose (4) to the fuel return pipe in the engine compartment.
- Connect the fuel feed hose (1) to the fuel feed pipe in the engine compartment.
- Connect the fuel vapor hose (2) to the fuel vapor pipe by the fuel tank.
- Connect the fuel return hose (1) to the fuel return pipe by the fuel tank.
- Connect the fuel feed outlet hose from the fuel filter to the fuel feed pipe.
- Lower the vehicle.
- Connect the negative battery cable.
Tighten: Tighten the negative battery cable retainer to 8 N.m (72 lb in).
- Start the engine.
- Check for any fuel leaks and repair as necessary.
