2004 Chevrolet Tracker RWDFACTORY OEM SERVICE PROCEDURE
Powertrain Control Module (PCM) Connector End Views
Back View of the PCM Connector C1
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| C1-1 | GRY/RED | Fuel Tank Pressure Sensor Reference Voltage |
| C1-2 | WHT | Battery Positive Voltage |
| C1-3 | PNK/GRN | HO2S 2 Heater Control |
| C1-4 | GRY | TP Signal (for cruise control, if equipped) |
| C1-5 | - | Not Used |
| C1-6 | BRN | Tachometer |
| C1-7 | PPL/YEL | MIL Control |
| C1-8 | GRY/WHT | A/C Cut-Out Control |
| C1-9 | BLU | Main Relay Control |
| C1-10 | GRY/GRN | Fuel Vapor Temperature Sensor Input |
| C1-11 TO C1-12 | - | Not Used |
| C1-13 | PPL/GRN | Serial Data Output |
| C1-14 | - | Not Used |
| C1-15 | BLK/ORN | Electrical Load Diode Signal (rear defogger switch) |
| C1-16 | PNK/WHT | HVAC Blower Idle-Up Signal |
| C1-17 | YEL/BLK | A/C Idle-Up Signal |
| C1-18 | - | Not Used |
| C1-19 | ORN/BLK | 4WD Indicator Lamp Control |
| C1-20 | WHT/BLK | O/D Indicator Lamp Control (A/T only) |
| C1-21 | GRY/BLU | Power/Normal Indicator Lamp Control (A/T only) |
| C1-22 | YEL/BLU | A/C Condenser Fan Relay Control |
| C1-23 | WHT/GRN | Fuel Pump Relay Control |
| C1-24 | GRY/YEL | HO2S 2 Sensor Ground |
| C1-25 | - | Not Used |
| C1-26 | RED/GRN | HO2S 2 Signal |
| C1-27 | BRN/RED | Fuel Tank Pressure Sensor Input |
| C1-28 | BLU/WHT | Fuel Tank Level Sensor Input |
| C1-29 | - | Not Used |
| C1-30 | PNK/BLK | EBCM Idle-Up Signal (ABS only) |
| C1-31 | ORN/BLU | Shift Mode Input (A/T only) |
| C1-32 | RED/YEL | Tail Lamp Idle-Up Signal (A/T only) |
| C1-33 | YEL/RED | O/D Switch Signal (A/T only) |
| C1-34 | GRN/WHT | Brake Switch Signal |
| C1-35 | PNK/BLU | O/D Cut Signal (from cruise control servo, if equipped) |
Back View Of the PCM Connector C2
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| C2-1 | LT BLU | IAT Sensor Input |
| C2-2 | ORN/BLK | ECT Sensor Input |
| C2-3 | BLK | Knock Sensor Input |
| C2-4 | BLU/BLK | Ignition Positive Voltage |
| C2-5 | PPL/GRN | MAF Sensor Ground |
| C2-6 | BLK/GRN | Ground |
| C2-7 | BLU/ORN | PSP Switch Idle-Up Signal |
| C2-8 | RED/WHT | MAP Sensor Input |
| C2-9 | RED/GRN | TP Sensor Input |
| C2-10 | PPL/WHT | MAF Sensor Input |
| C2-11 | RED | HO2S 1 Signal |
| C2-12 | Bare | HO2S 1 Sensor Shield Ground |
| C2-13 | GRY/RED | TP Sensor Reference Voltage |
| C2-14 | WHT/RED | MAP Sensor Reference Voltage |
| C2-15 | BLU/BLK | Ignition Positive Voltage |
| C2-16 | - | Not Used |
| C2-17 | BLK/BLU | Ground |
| C2-18 | BLK/YEL | Crank Signal |
| C2-19 | - | Not Used |
| C2-20 | BLK/WHT | Ignition Positive Voltage |
| C2-21 | GRY/YEL | Sensor Ground |
| C2-22 | GRY/YEL | HO2S 1 Sensor Ground |
| C2-23 to C2-24 | - | Not Used |
| C2-25 | BLU/WHT | Sensor Ground |
| C2-26 | PPL/RED | CMP Sensor Ground |
Back View Of the PCM Connector C3
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| C3-1 | GRN/RED | Shift Solenoid #2 Control |
| C3-2 | GRN | Shift Solenoid #1 Control |
| C3-3 TO C3-7 | - | Not Used |
| C3-8 | GRN/YEL | TCC Solenoid Control |
| C3-9 | - | Not Used |
| C3-10 | BLU/GRN | A/T Input Shaft Speed Sensor Signal Low |
| C3-11 | BLU/YEL | A/T Input Shaft Speed Sensor Signal High |
| C3-12 to C3-14 | - | Not Used |
| C3-15 | YEL/GRN | TR Switch D Position Signal |
| C3-16 | ORN/BLU | TR Switch N Position Signal |
| C3-17 | RED | TR Switch R Position Signal |
| C3-18 | ORN/GRN | TR Switch P Position Signal |
| C3-19 | - | Not Used |
| C3-20 | BLK | A/T Output Shaft Speed Sensor Shielded Ground |
| C3-21 | BLK | A/T Input Shaft Speed Sensor Shielded Ground |
| C3-22 | ORN | A/T Output Shaft Speed Sensor Signal Low |
| C3-23 | WHT | A/T Output Shaft Speed Sensor Signal High |
| C3-24 to C3-25 | - | Not Used |
| C3-26 | ORN/WHT | 4WD Low Signal |
| C3-27 | GRN/BLU | TR Switch L Position Signal |
| C3-28 | GRN/ORN | TR Switch 2 Position Signal |

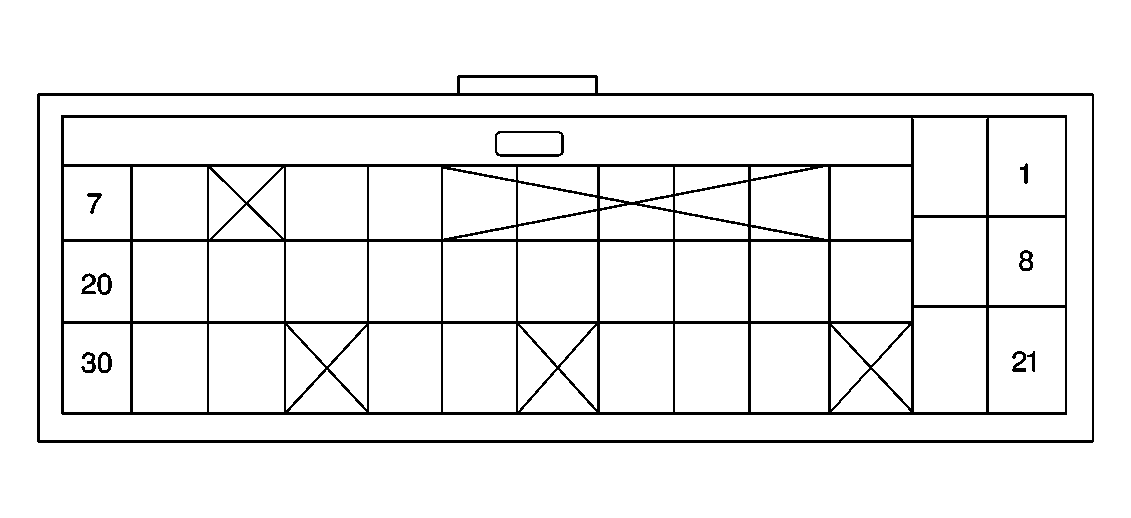

Back View Of the PCM Connector C4
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| C4-1 | PNK/BLK | Fuel Injector #2 Control |
| C4-2 | PNK | Fuel Injector #1 Control |
| C4-3 | LT GRN/BLK | IAC Valve Coil Control |
| C4-4 | GRY | HO2S 1 Heater Control |
| C4-5 | PPL/RED | EVAP Canister Vent Solenoid Control |
| C4-6 | GRN/WHT | EVAP Tank Pressure Control Solenoid Valve Control - if equipped |
| C4-7 | RED | 4WD Actuator Control |
| C4-8 | PNK/BLU | Fuel Injector #4 Control |
| C4-9 | PNK/GRN | Fuel Injector #3 Control |
| C4-10 | PPL/YEL | IAC Valve Coil Control |
| C4-11 | GRY/BLU | IAC Valve Coil Control |
| C4-12 | PPL/BLK | IAC Valve Coil Control |
| C4-13 | LT GRN/RED | EGR Valve Coil Control |
| C4-14 | LT GRN/YEL | EGR Valve Coil Control |
| C4-15 | LT GRN/WHT | EGR Valve Coil Control |
| C4-16 | LT GRN | EGR Valve Coil Control |
| C4-17 | GRN/BLK | EVAP Canister Purge Valve Control |
| C4-18 | BLK/ORN | 4WD Signal |
| C4-19 | WHT/BLU | CKP Sensor Signal High |
| C4-20 | ORN/BLU | CKP Sensor Signal Low |
| C4-21 | BRN/YEL | Ignition Coil #4 Control |
| C4-22 | BRN/WHT | Ignition Coil #3 Control |
| C4-23 | BRN/BLK | Ignition Coil #2 Control |
| C4-24 | BRN | Ignition Coil #1 Control |
| C4-25 | BLU/YEL | VSS Signal |
| C4-26 | YEL/BLU | CMP Sensor Signal |
| C4-27 | PNK | 4WD Actuator Control |
| C4-28 | BLK/BLU | Ground |
| C4-29 | BLK/GRN | DLC Ground |
| C4-30 | Bare | CKP Sensor Shielded Ground |
