2004 Chevrolet Tracker RWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

Install the accelerometer (1) to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the two bolts (2) that retain the accelerometer.
Tighten: Tighten the two accelerometer bolts to 16 N.m (12 lb ft).

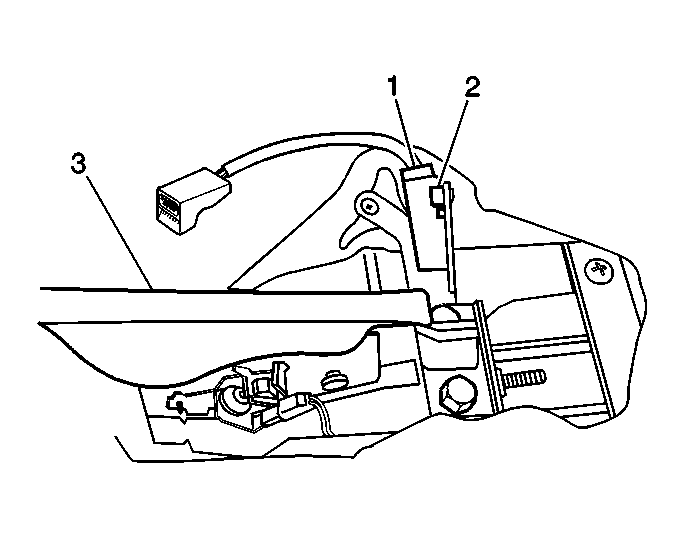

Fig 1: View Of Accelerometer & Bolts

Courtesy of GENERAL MOTORS CORP.

Connect the accelerometer electrical connector (2).

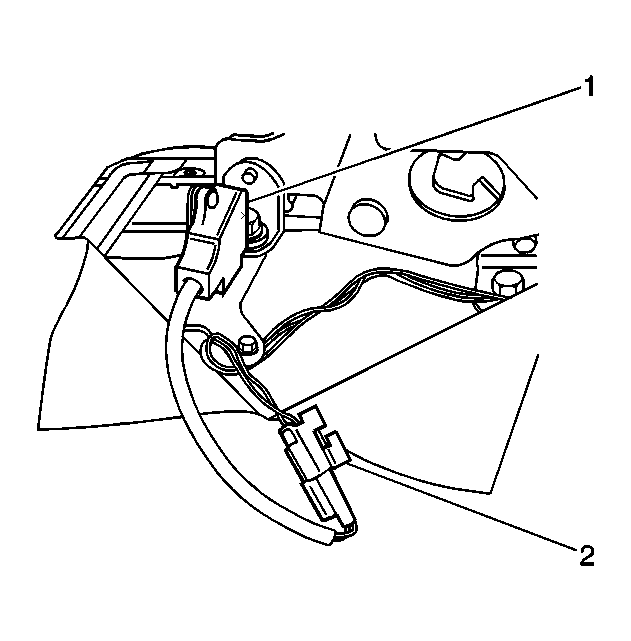

Fig 2: View Of Accelerometer Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the parking brake lever bezel (1).
Install the parking brake lever bezel attaching screws (2).
Perform Diagnostic System Check - ABS .

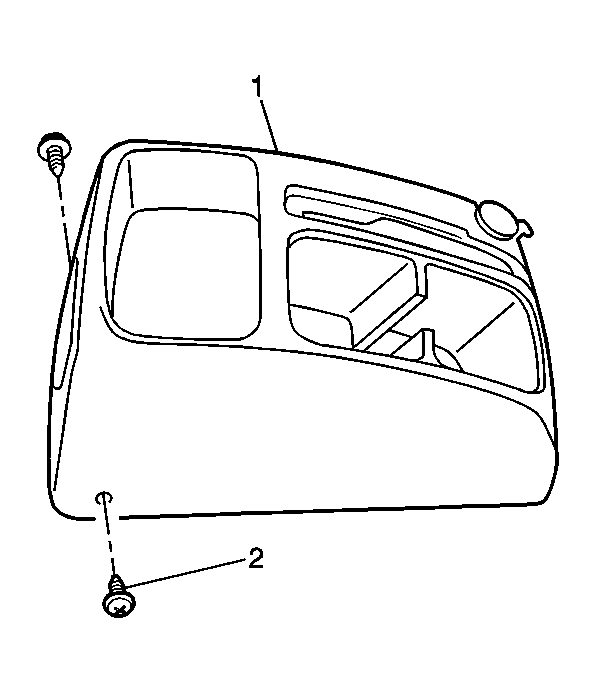

Fig 3: View Of Parking Brake Lever Bezel & Screws

Courtesy of GENERAL MOTORS CORP.
